Home >> Mercury >> 1987 >> Grand Marquis V8-351 5.8L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Electronic

Electronic

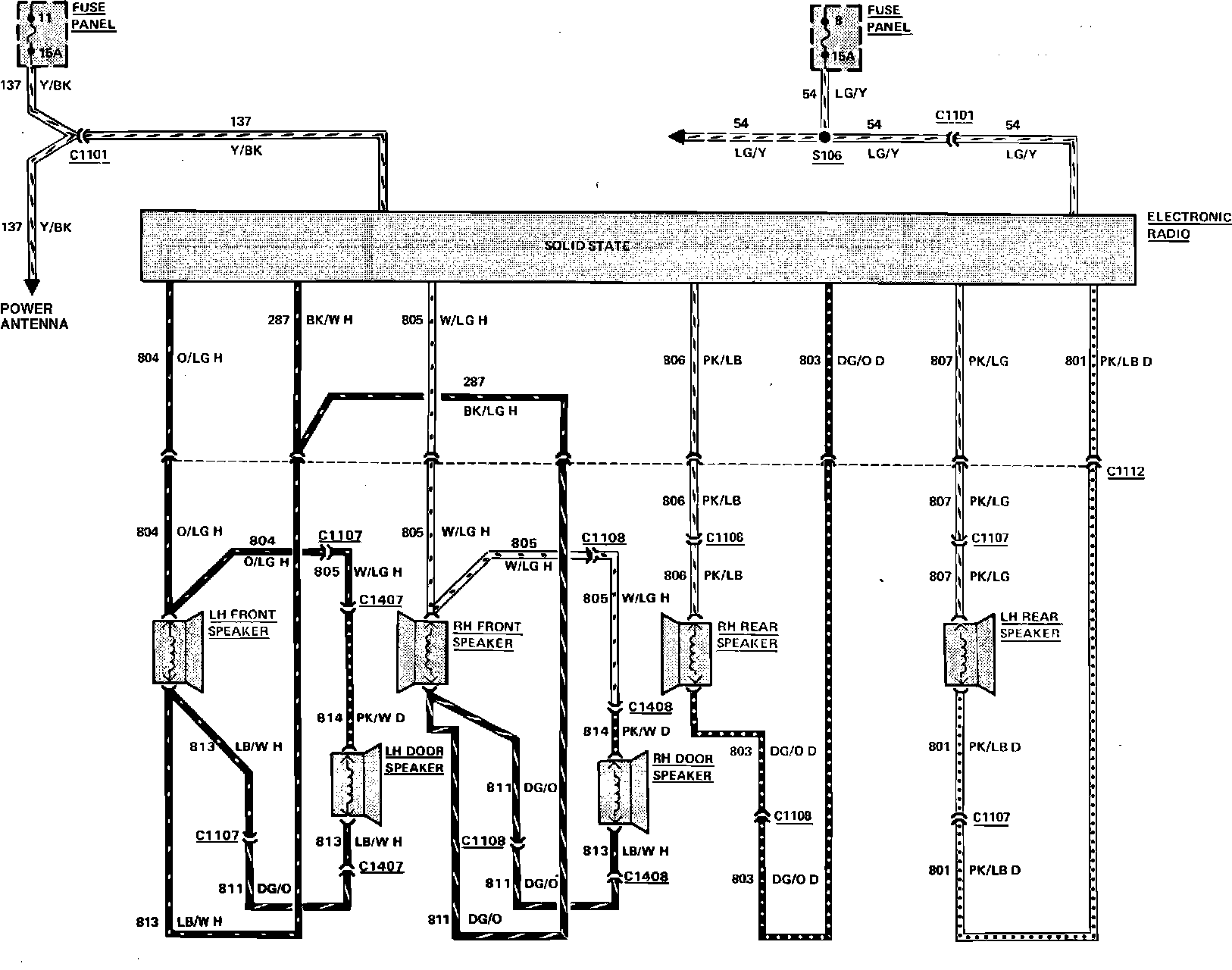

Fig. 54 Radio Wiring Circuit. Electric:
