Starter Relay: Locations

LH fender apron.:

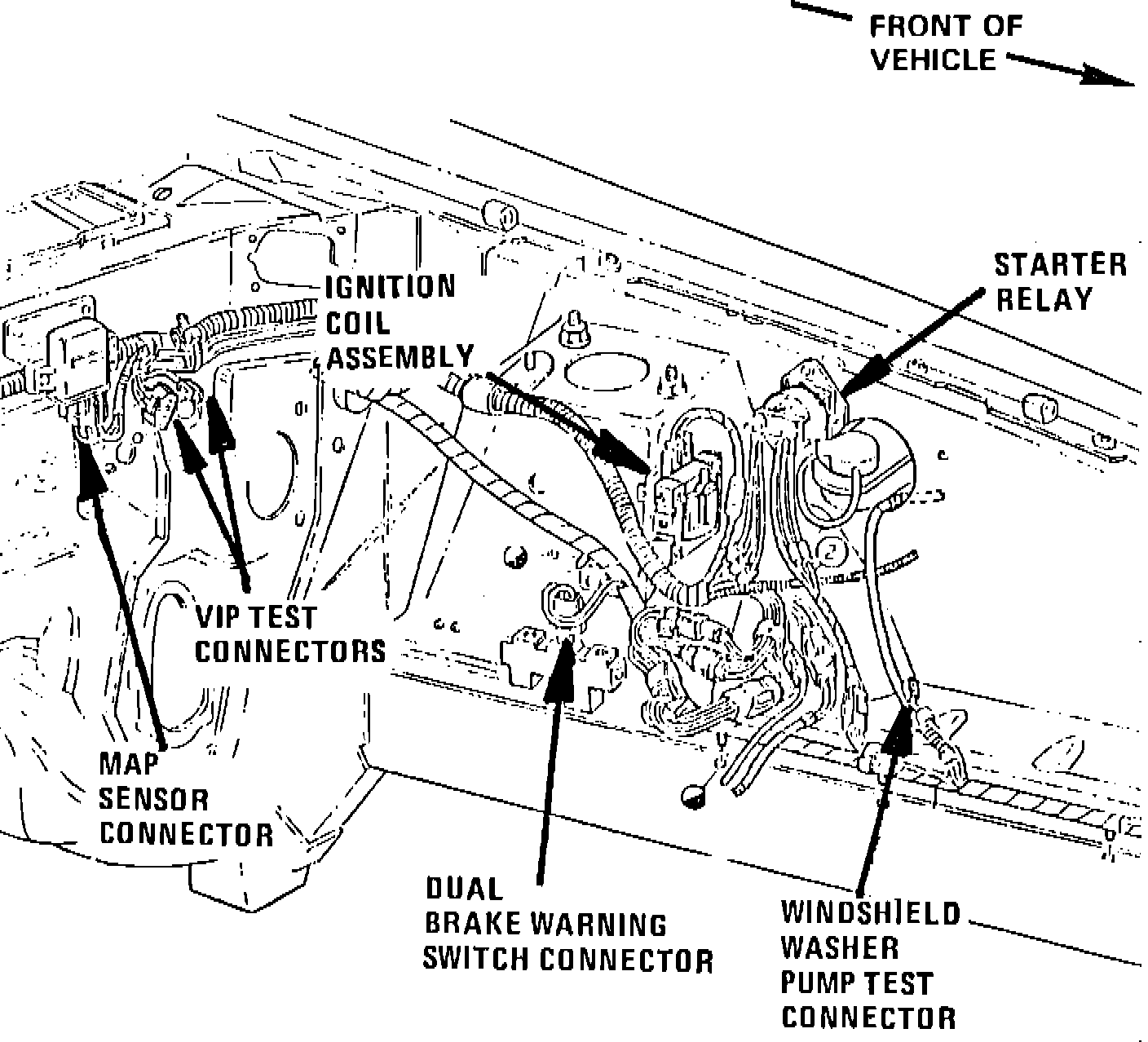

LH Fender Apron

Applicable to: V8-302/5.0L EEC IV engine
