Mercury
>>
1987
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

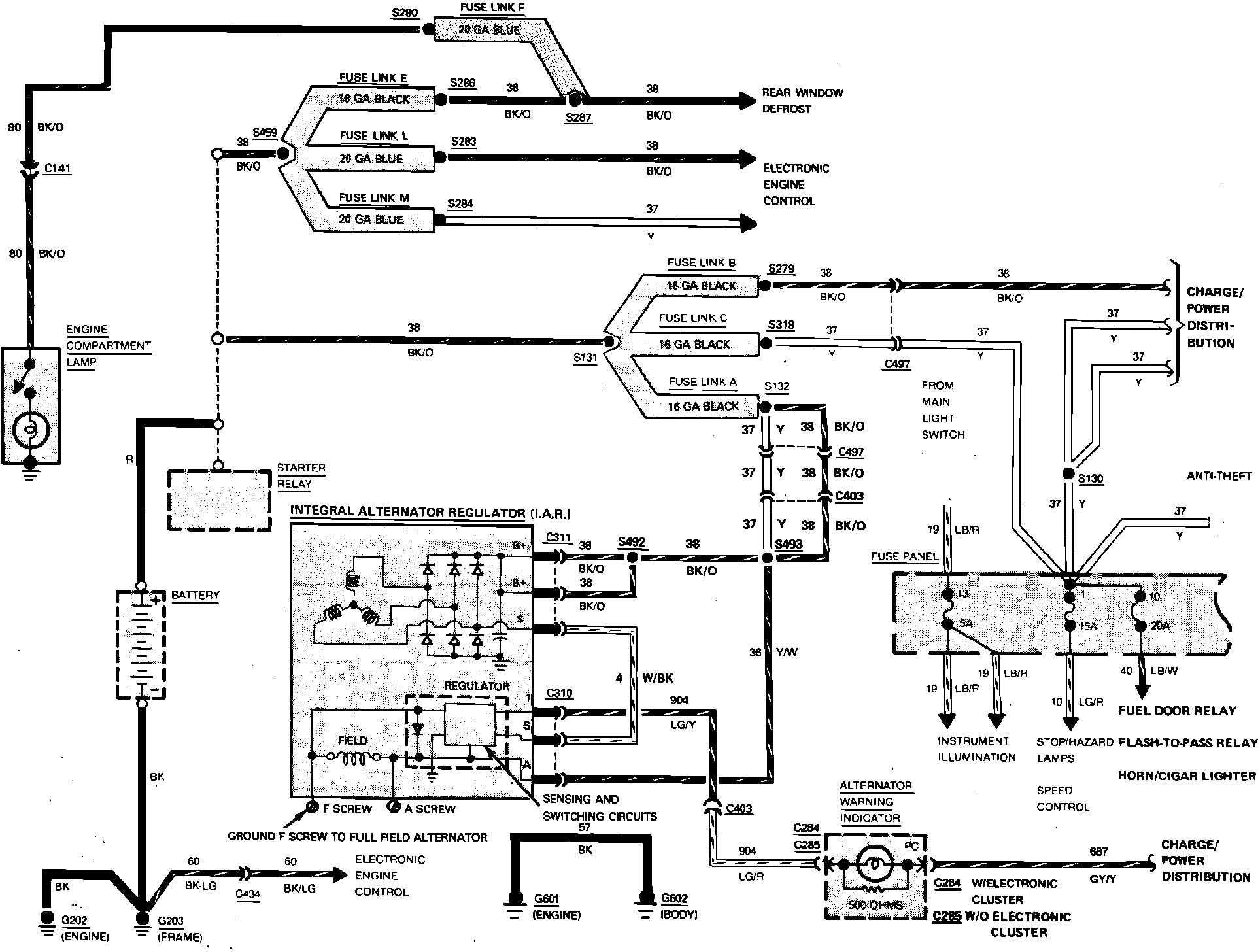

Fig. 16 Charge & Power Distribution Wiring Circuit (Part 1 of 2). V8-302/5.0L:

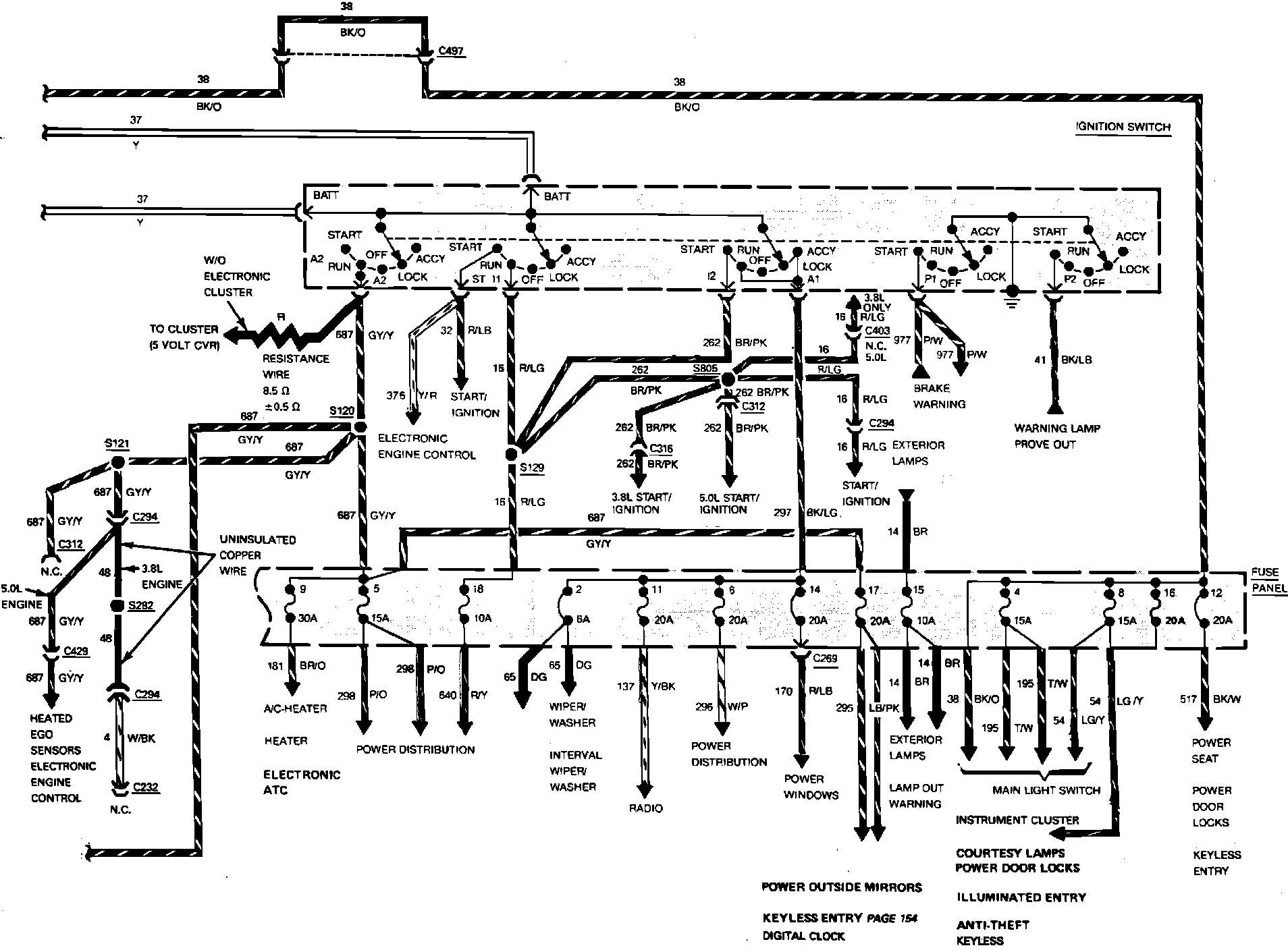

Fig. 16 Charge & Power Distribution Wiring Circuit (Part 2 of 2). V8-302/5.0L:
