Evaporative Emission Control Canister: Locations

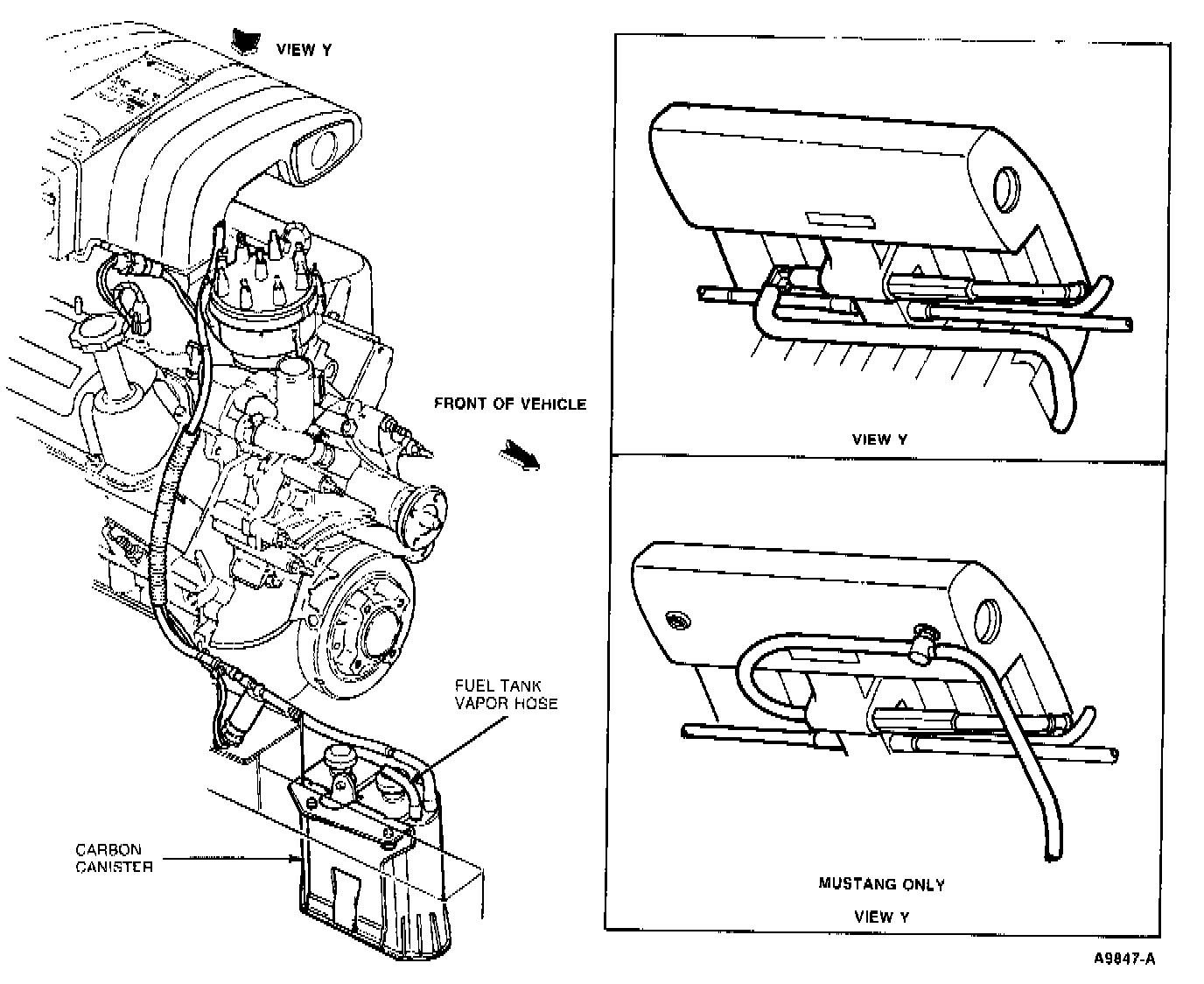

Figure 14 Typical 5.OL SEFI, HO SEFI, Continental/Mark VII, Thunderbird/Cougar, Mustang, Mark LSC, 50 States and Canada-Evaporative Emission System:
