Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Fig. 9 W/EFI, Calib. Codes 7-21(A,C,P)-R05, 7-22(A,P)-R00
Fig. 9 W/EFI, Calib. Codes 7-21(A,C,P)-R05, 7-22(A,P)-R00

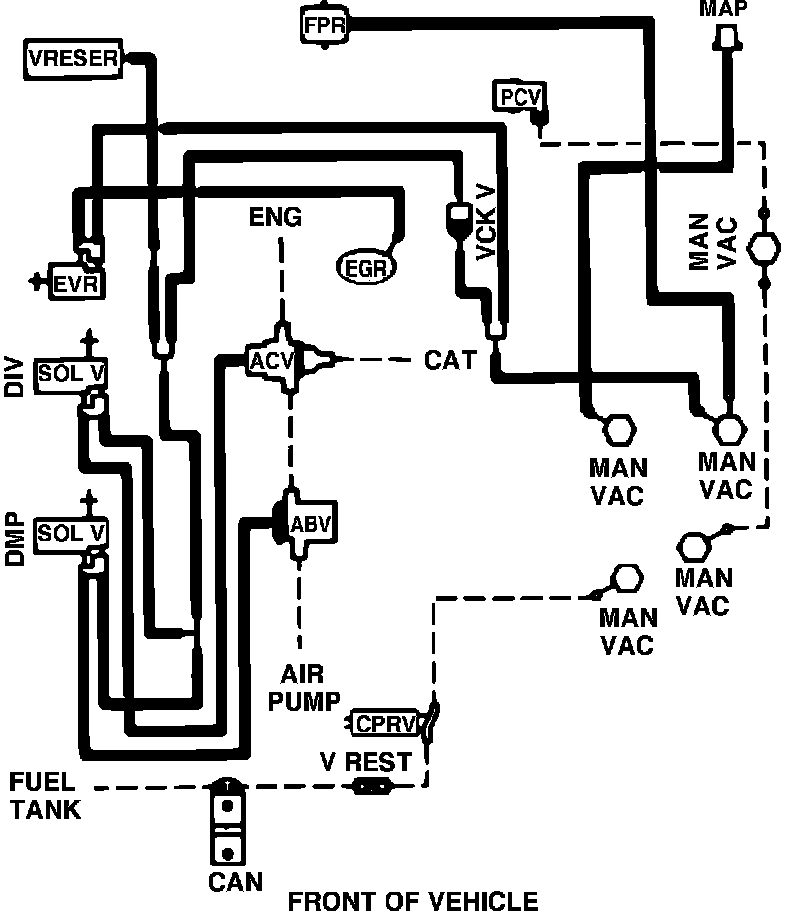

Fig. 9 Vacuum hose routing. 1987 V8-302 w/EFI, calib. codes 7-21A-R05, 7-21C-R05, 7-21P-R05, 7-22A-R00 & 7-22P-R00:
