Fig. 10 W/EFI, Calib. Codes 7-22(D,R)-R00 & 7-23D-R00
Fig. 10 W/EFI, Calib. Codes 7-22(D,R)-R00 & 7-23D-R00

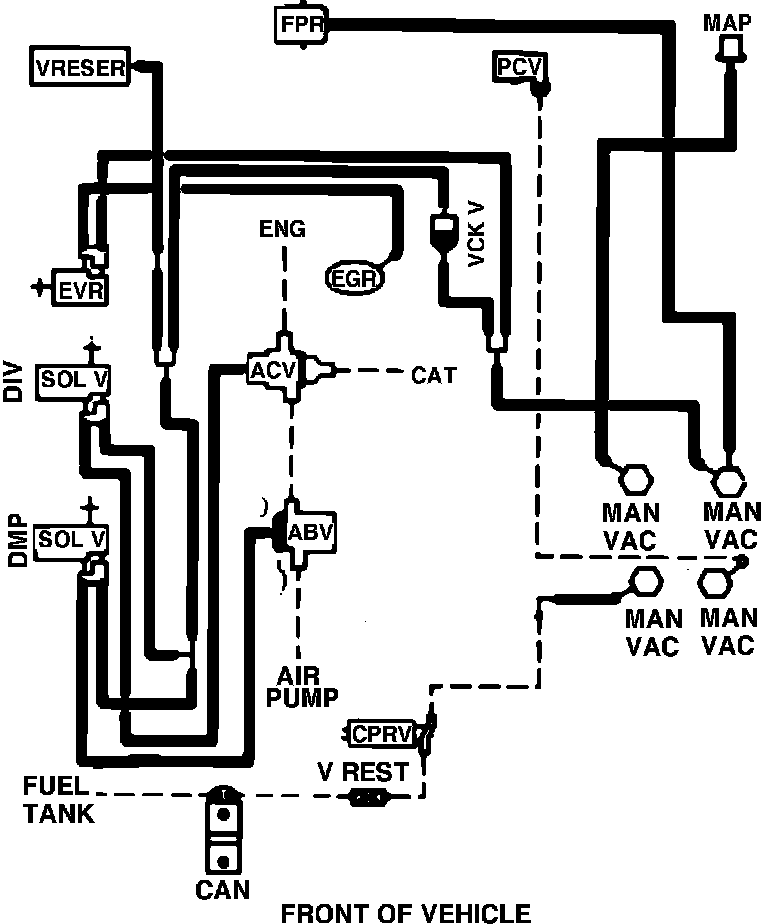

Fig. 10 Vacuum hose routing. 1987 V8-302 w/EFI, calib. codes 7-22D-R00, 7-22R-R00 & 7-23D-R00:
