Home >> Mercury >> 1987 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DK - Vane Air Flow Sensor (VAF) >> DK23, DK30 (Fault Code 76), DK31

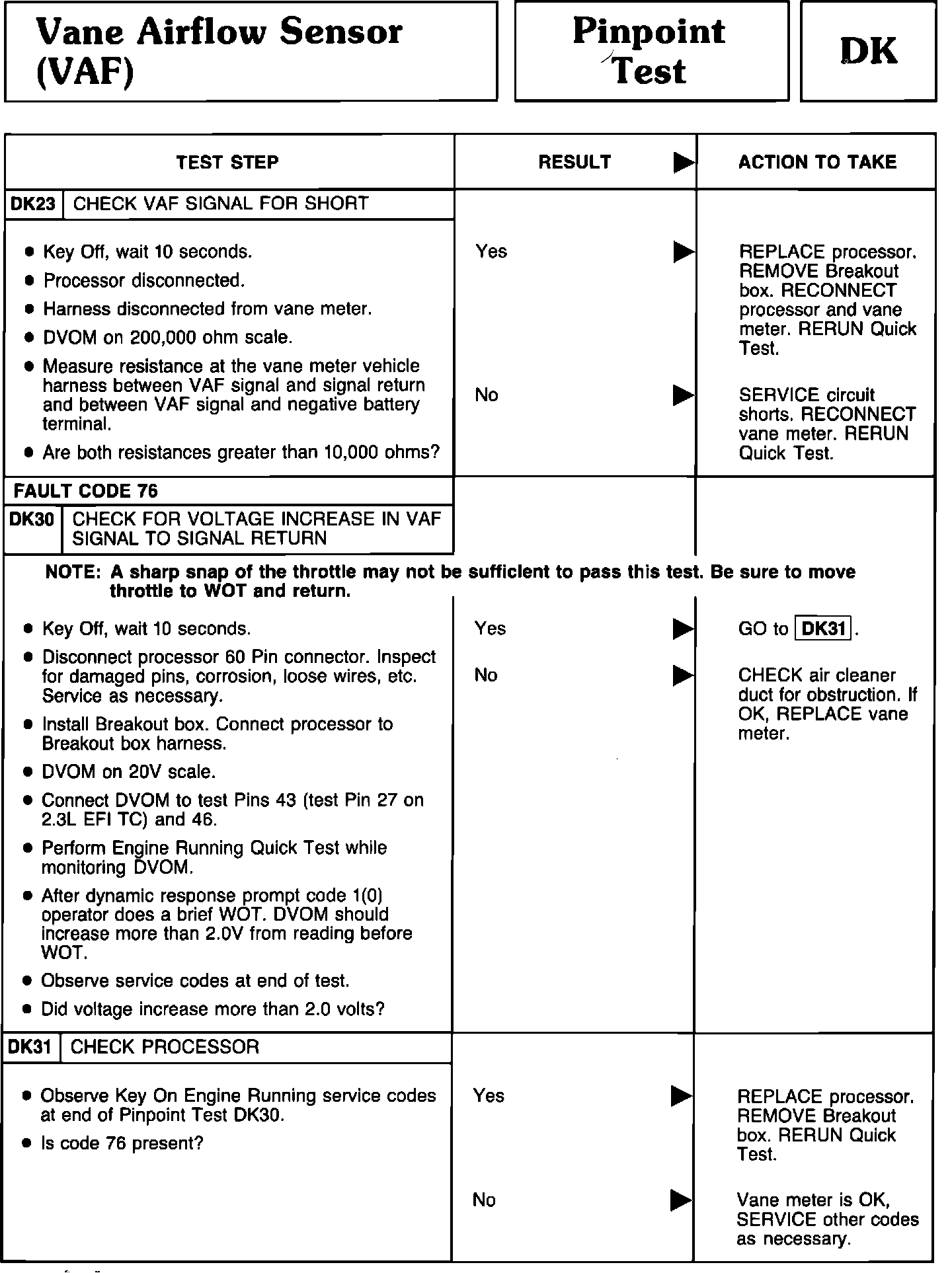

DK23, DK30 (Fault Code 76), DK31
