Part 3 of 6

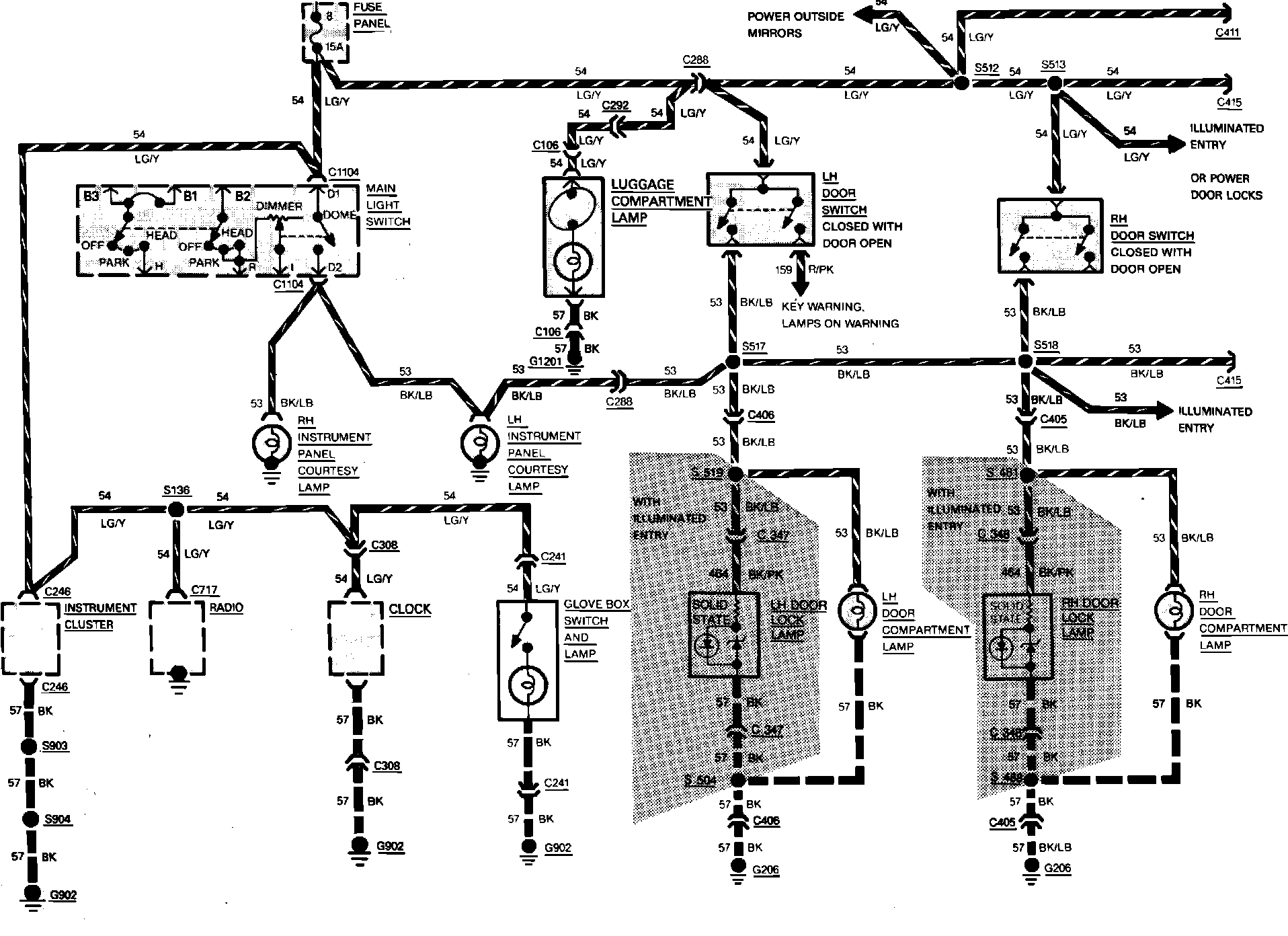

Fig. 19 Courtesy Lamps & Reading Lamp Wiring Circuit (Part 1 of 2). With Premium Sound Radio, Diagnostic Warning, Power Windows & Power Doors Locks Or Illuminated Entry:
