Home >> Mercury >> 1987 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> TT: Volts Gauge Does Not Give "No Charge" Alert

TT: Volts Gauge Does Not Give "No Charge" Alert

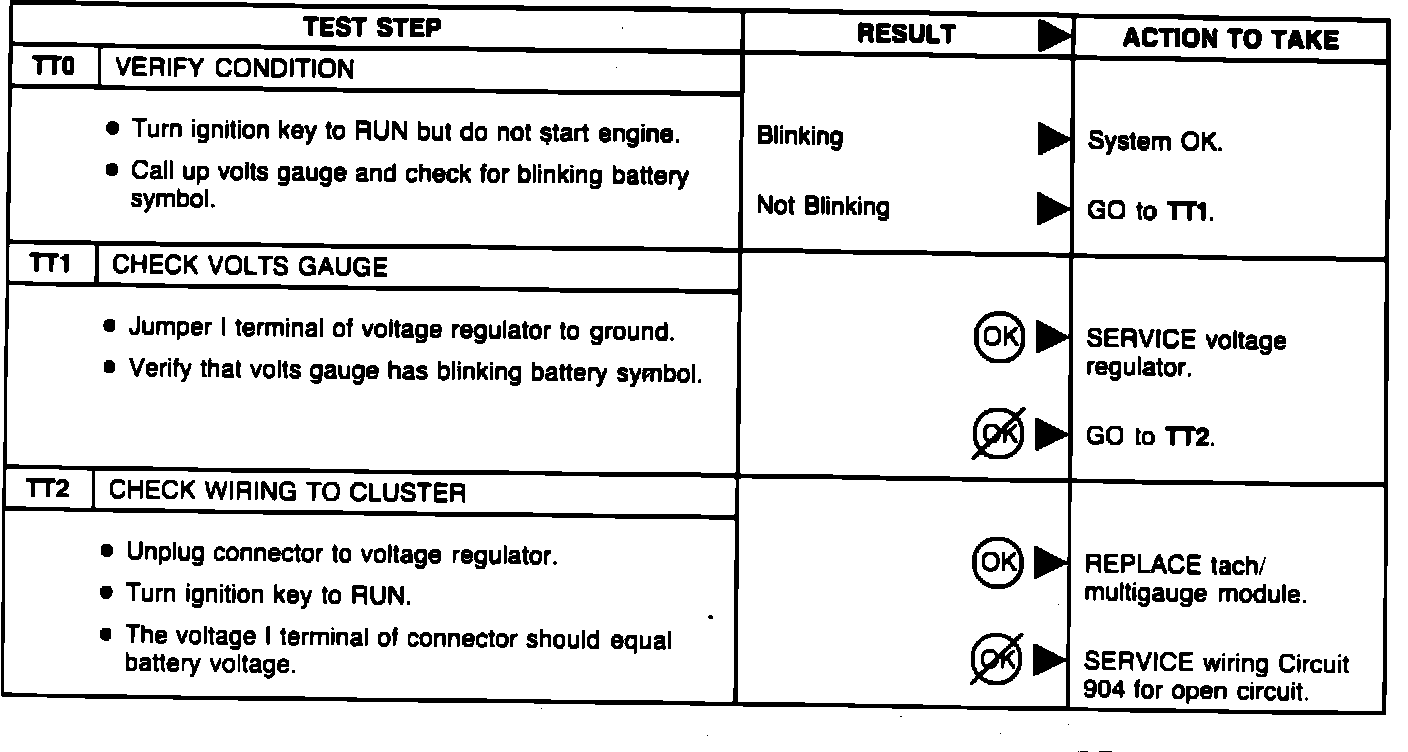

Test TT0 - TT2:
