Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>

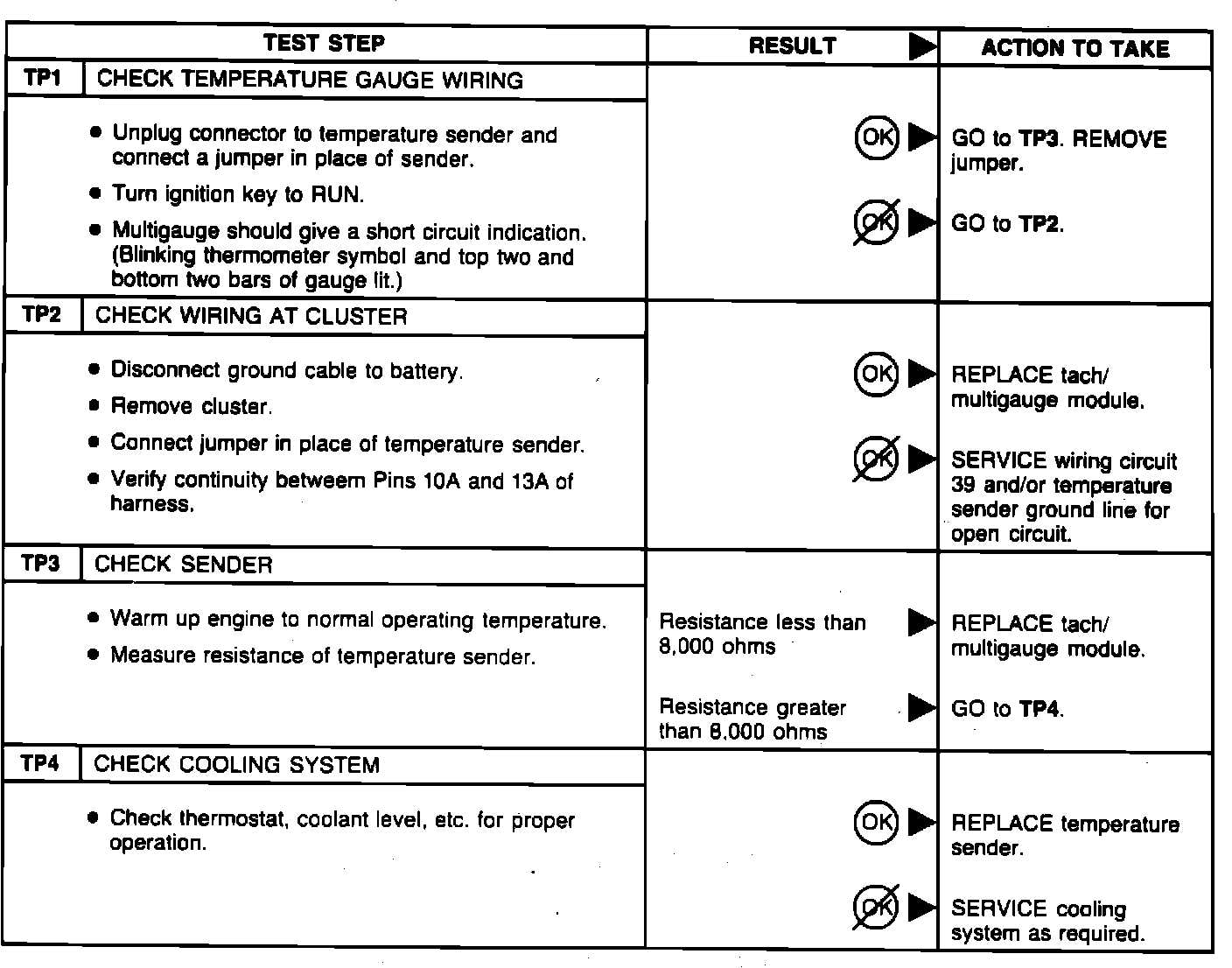

TP: Temperature Gauge Always Indicates Cold
TP: Temperature Gauge Always Indicates Cold
Test TP1 - TP4:
