TG: CO Displayed Analog Fuel Gauge CAN Not Be Called Up
TG: CO Displayed Analog Fuel Gauge CAN Not Be Called Up

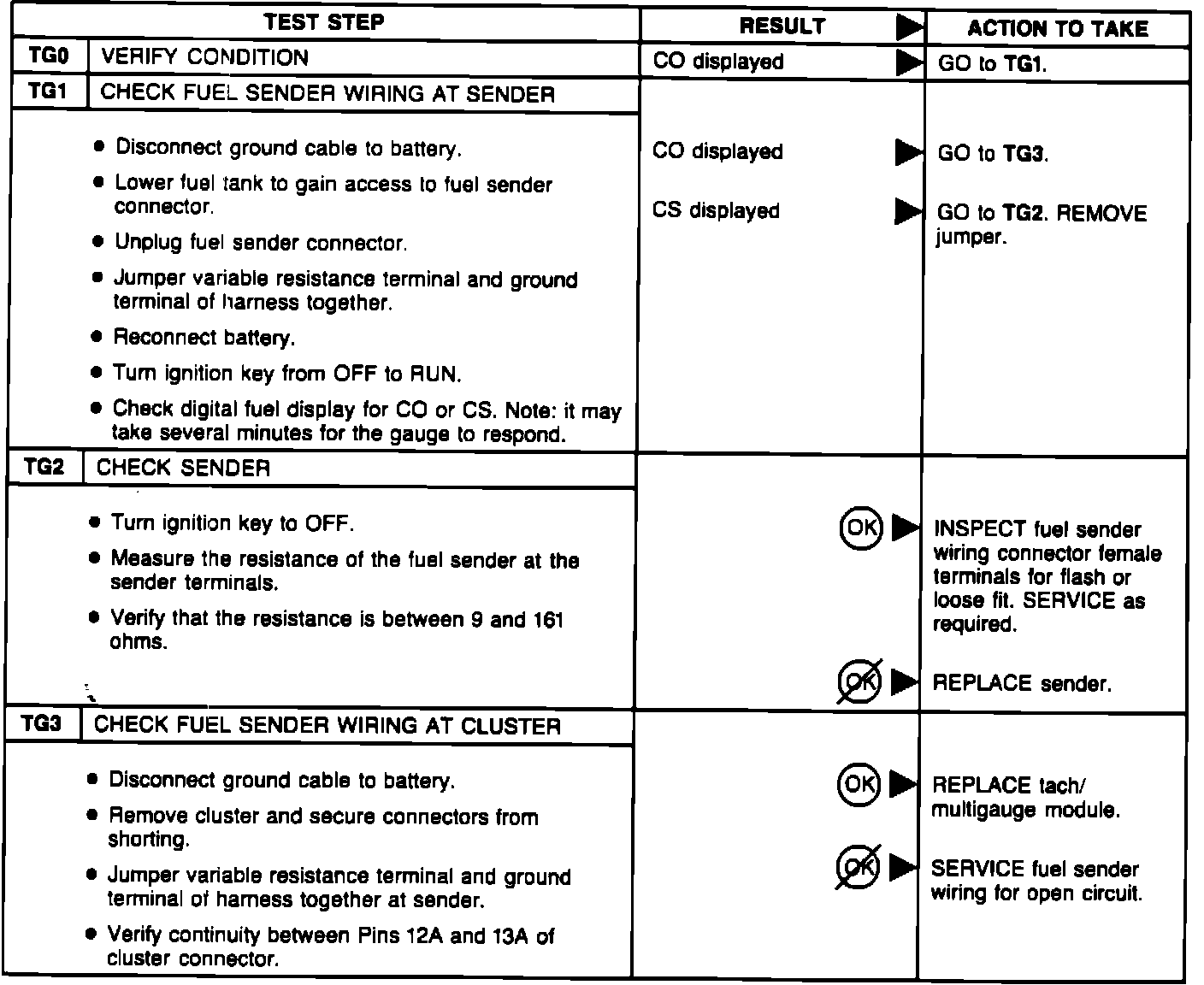

Pinpoint Test TG0 - TG3:
