FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1987
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
TC: Display Incorrect
>>
TC1-TC3
TC1-TC3

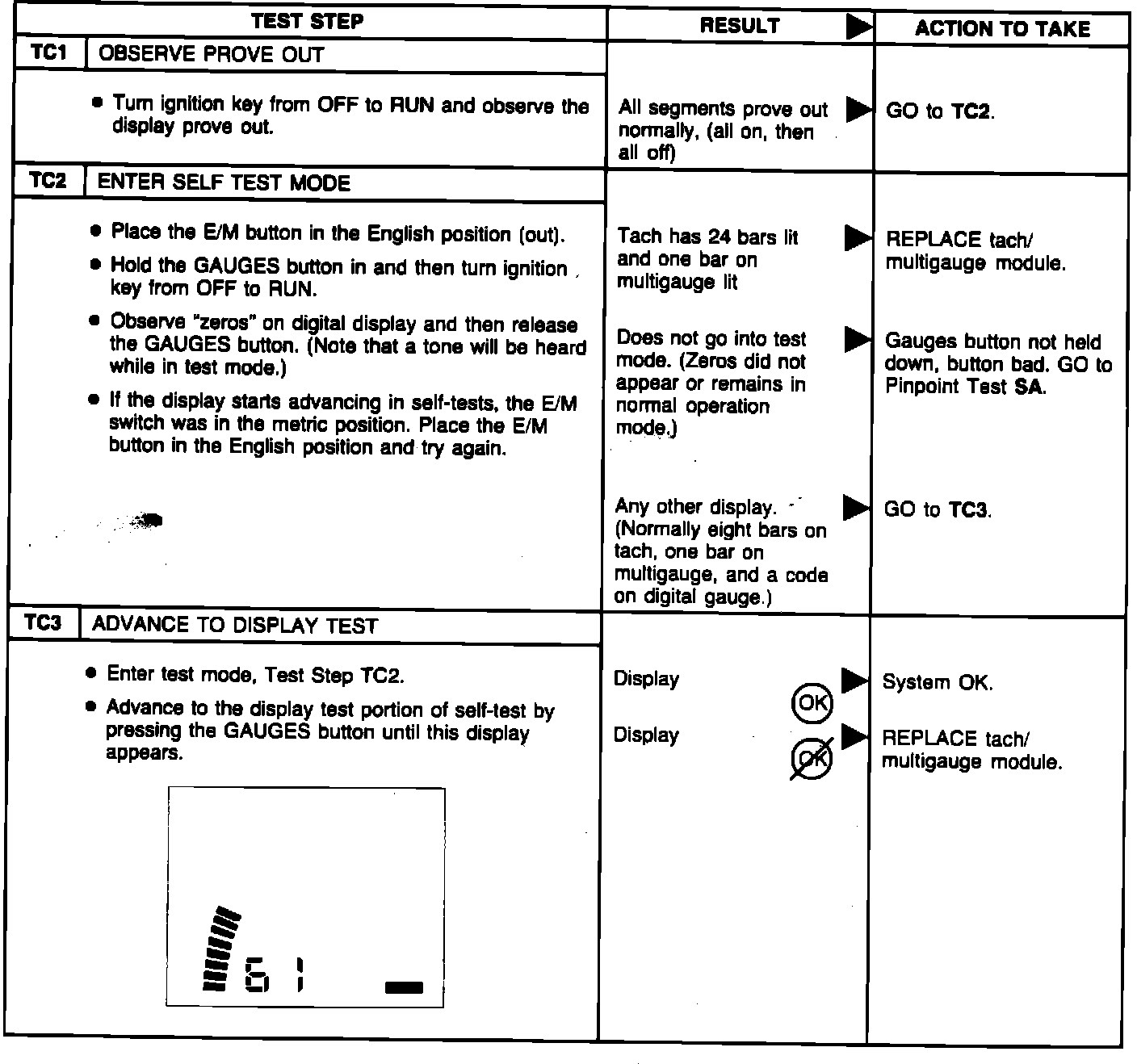

Test TC1 - TC3:
