Home >> Mercury >> 1987 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> TA: Module Display Not Illuminated >> TA1-TA5

TA1-TA5

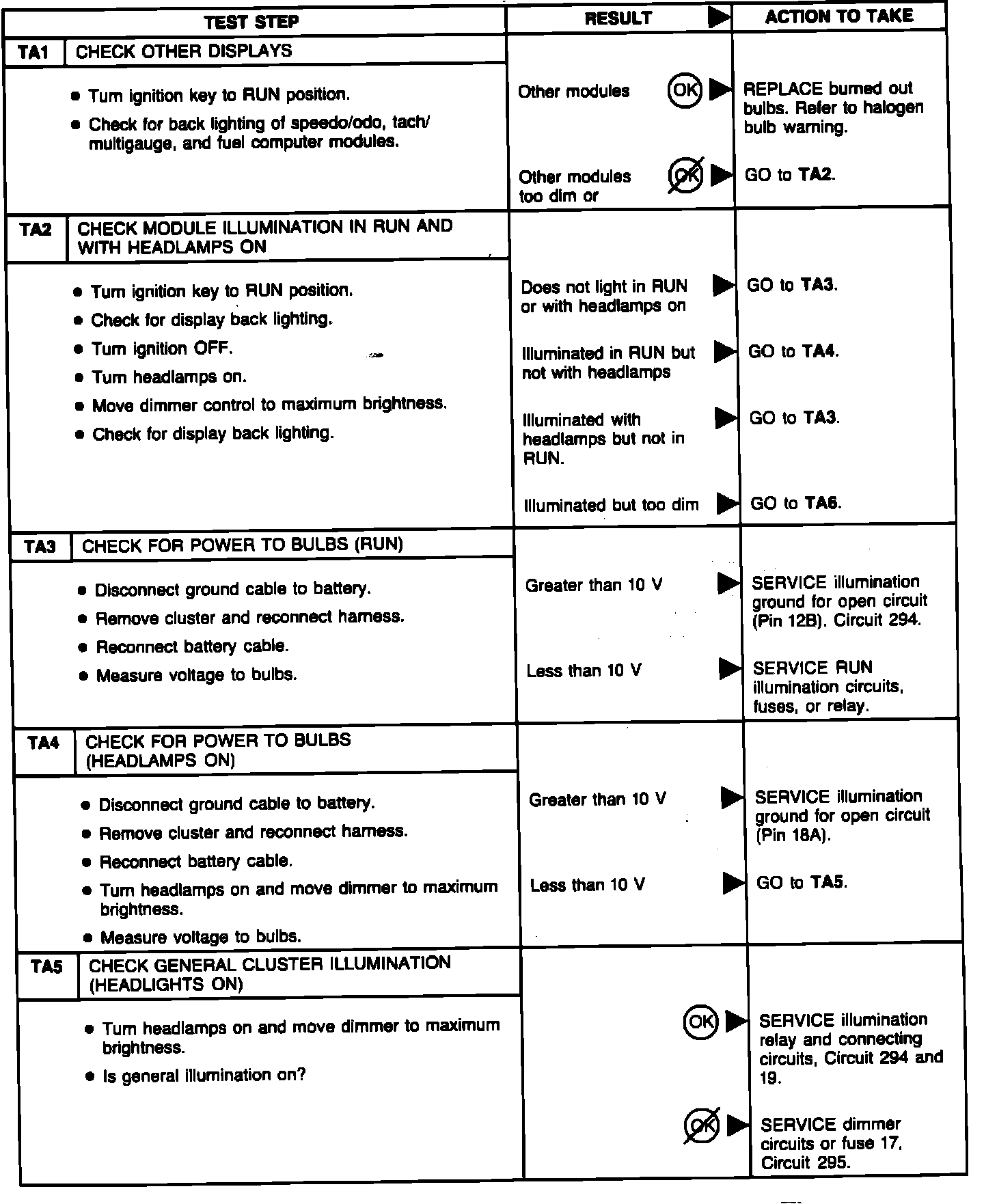

Test TA1 - TA5:
