Vacuum Tests

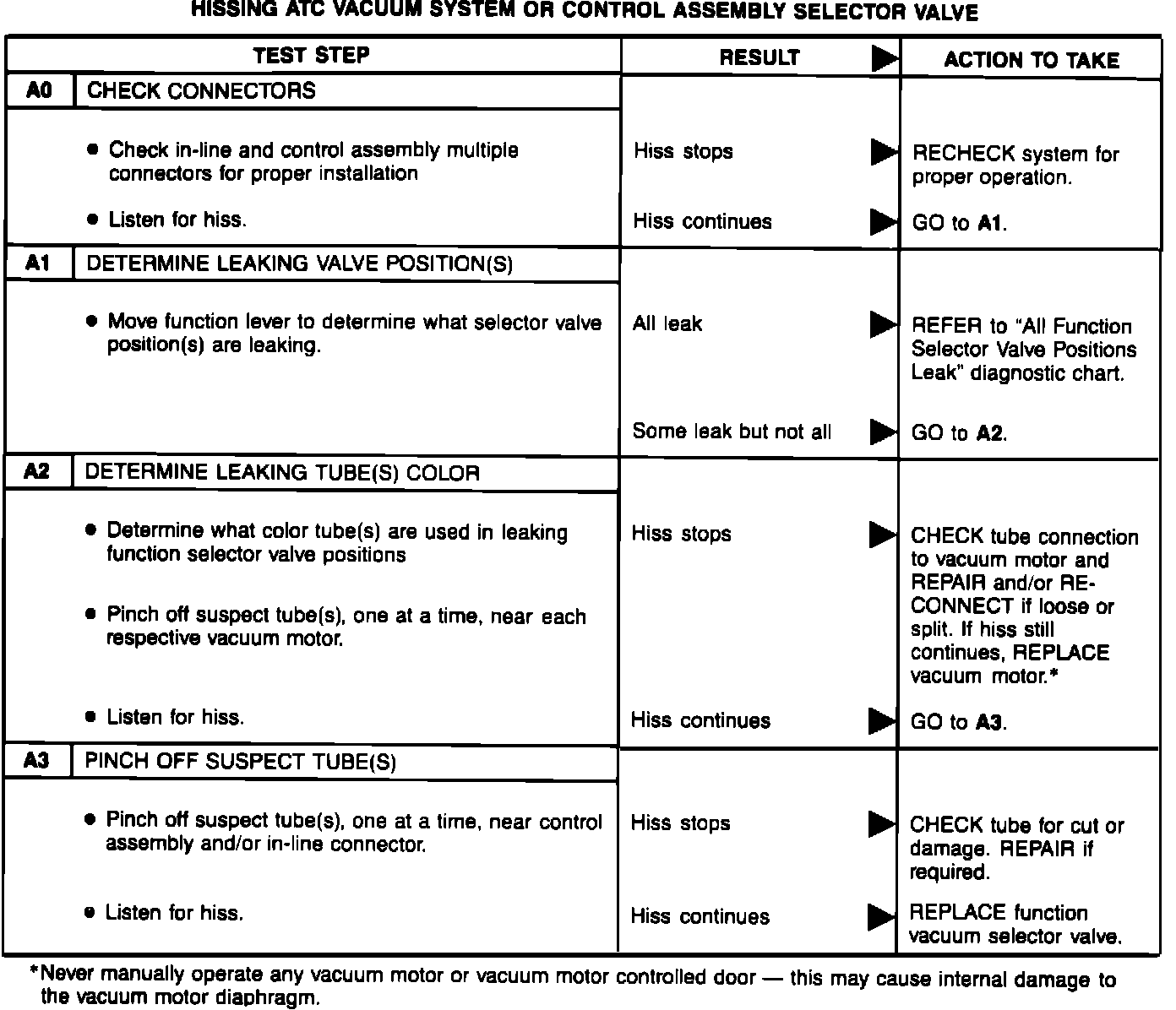

Fig. 32 Vacuum system leak diagnosis (Part 1 of 3). ATC:

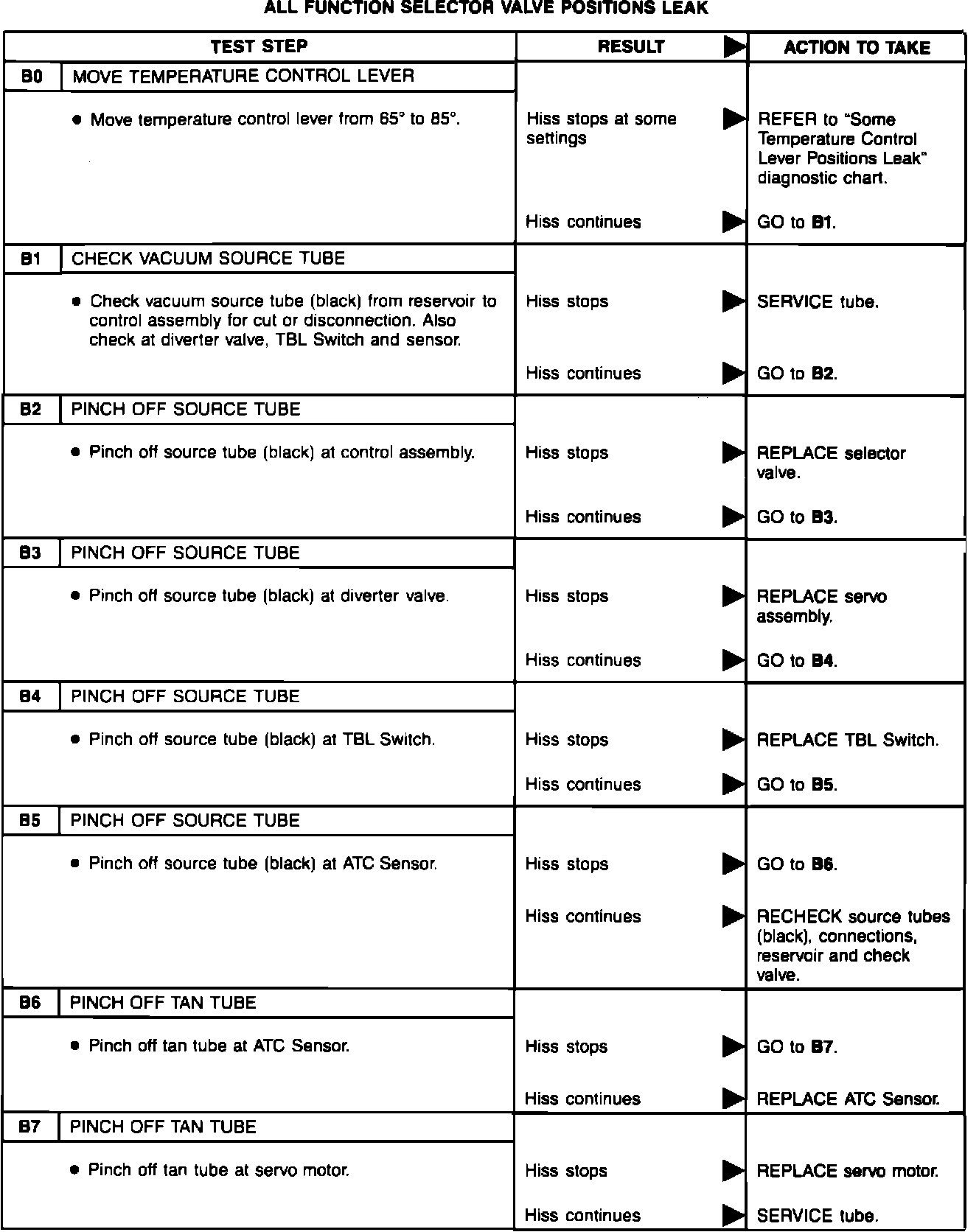

Fig. 32 Vacuum system leak diagnosis (Part 2 of 3). ATC:

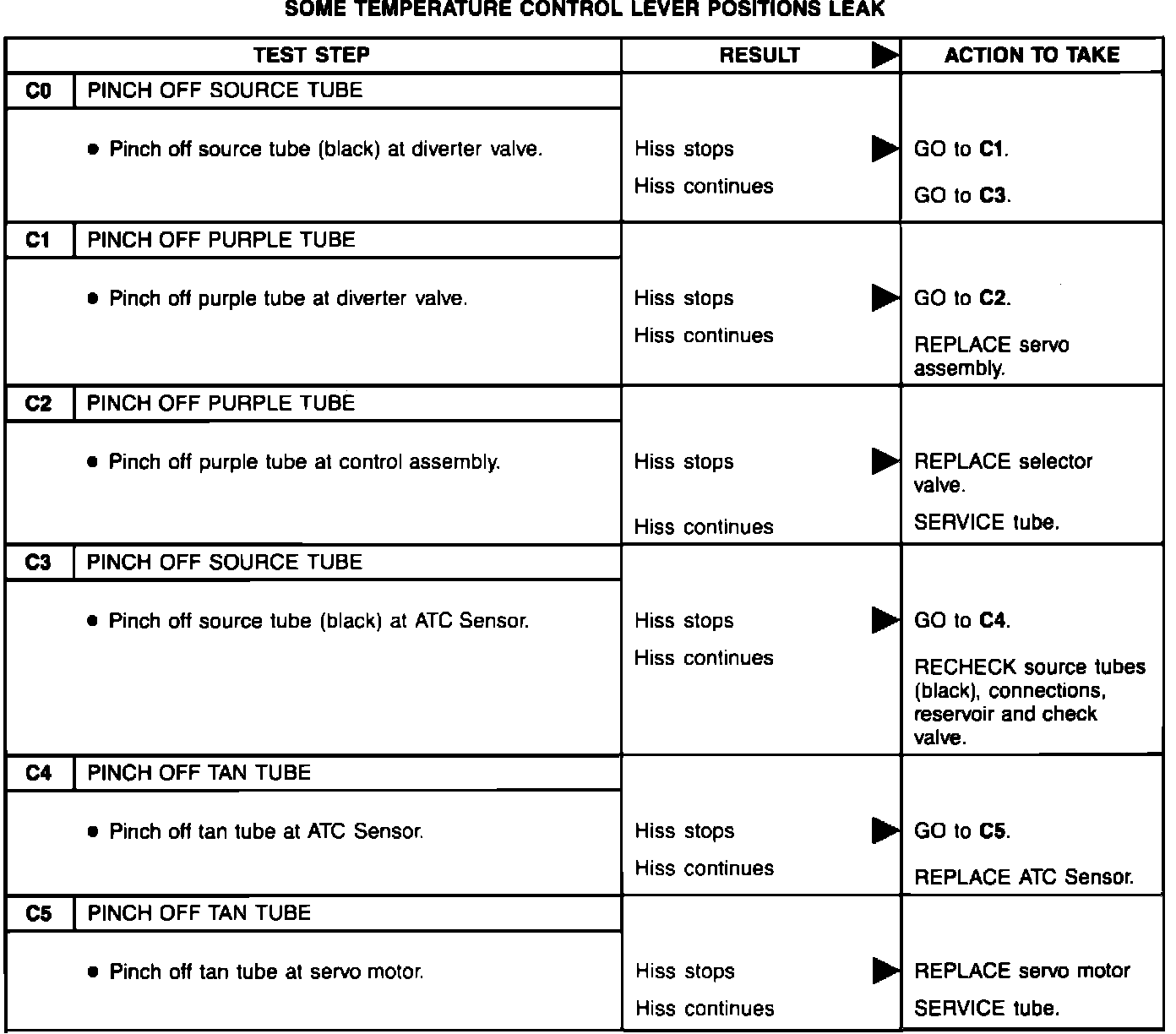

Fig. 32 Vacuum system leak diagnosis (Part 3 of 3). ATC:
