Mercury
>>
1987
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Level Warning Indicator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

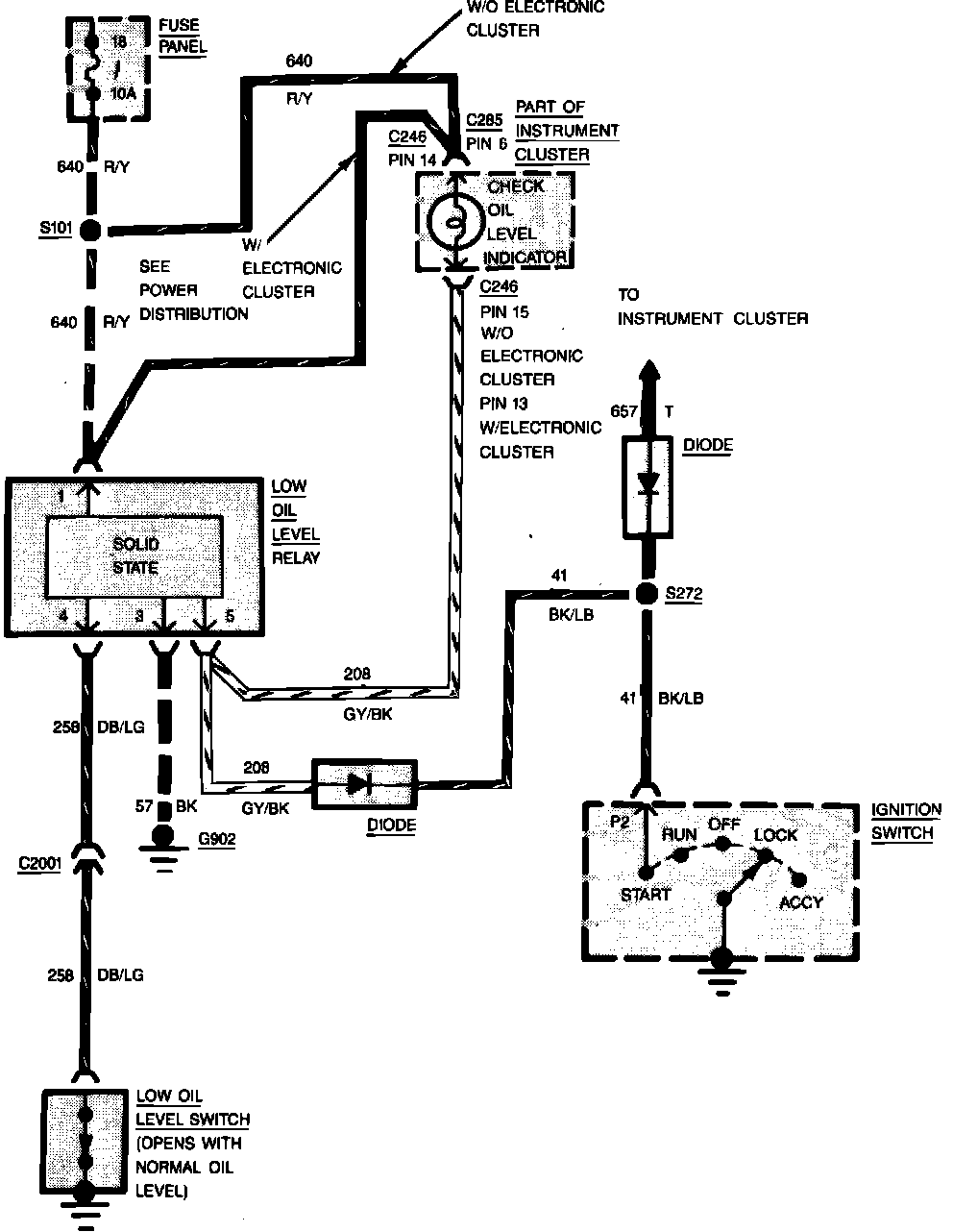

Fig. 94 Warning Indicator (Low Oil Level) Wiring Circuit. V6-230/3.8L & V8-302/5.0L Engines:
