Temperature Sensor (Gauge): Locations

V8-302/5.:

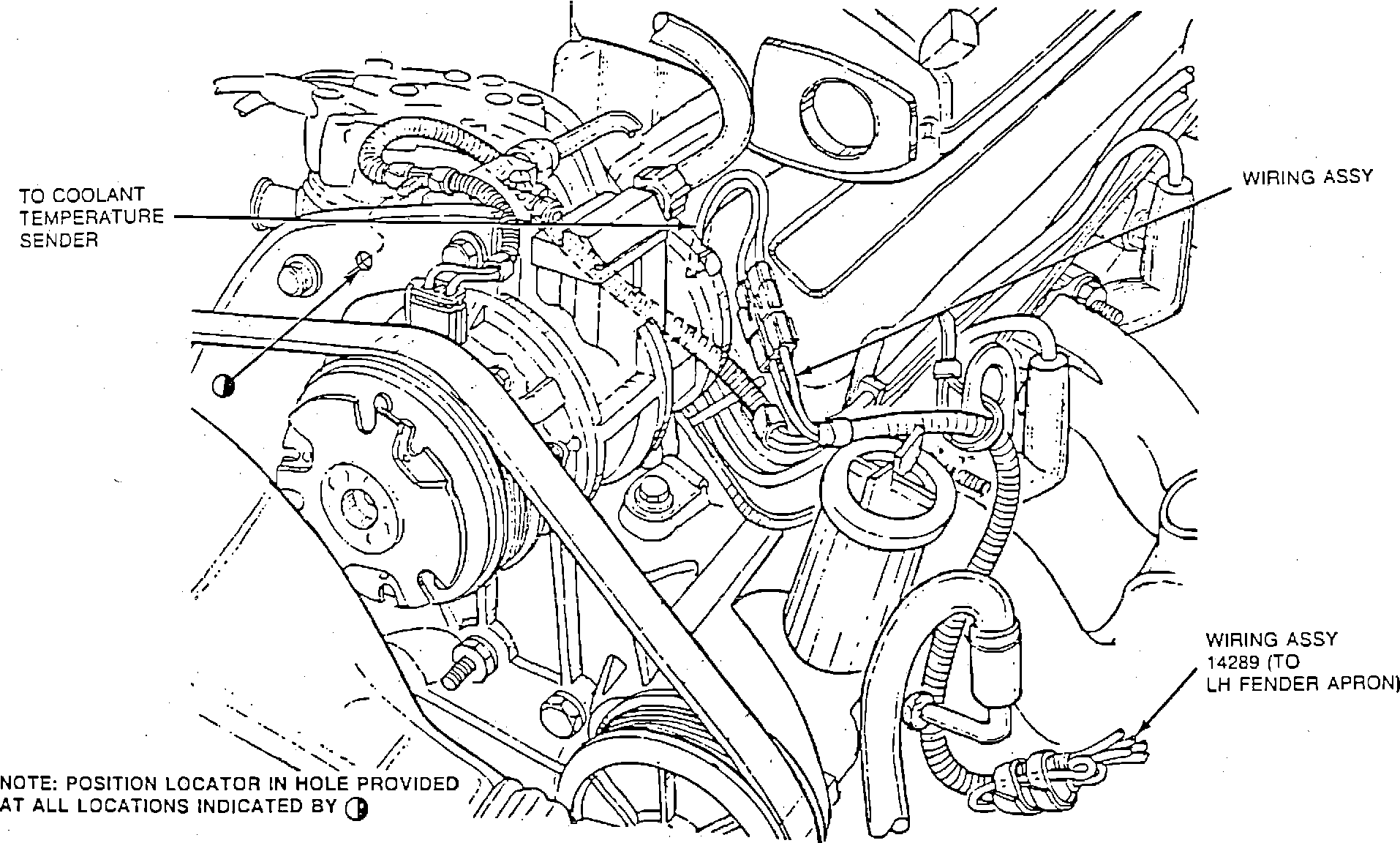

Front Of Intake Manifold

Applicable to: 5.0L SEFI engine wiring harness
