Heater/Ventilation Vacuum Diagrams

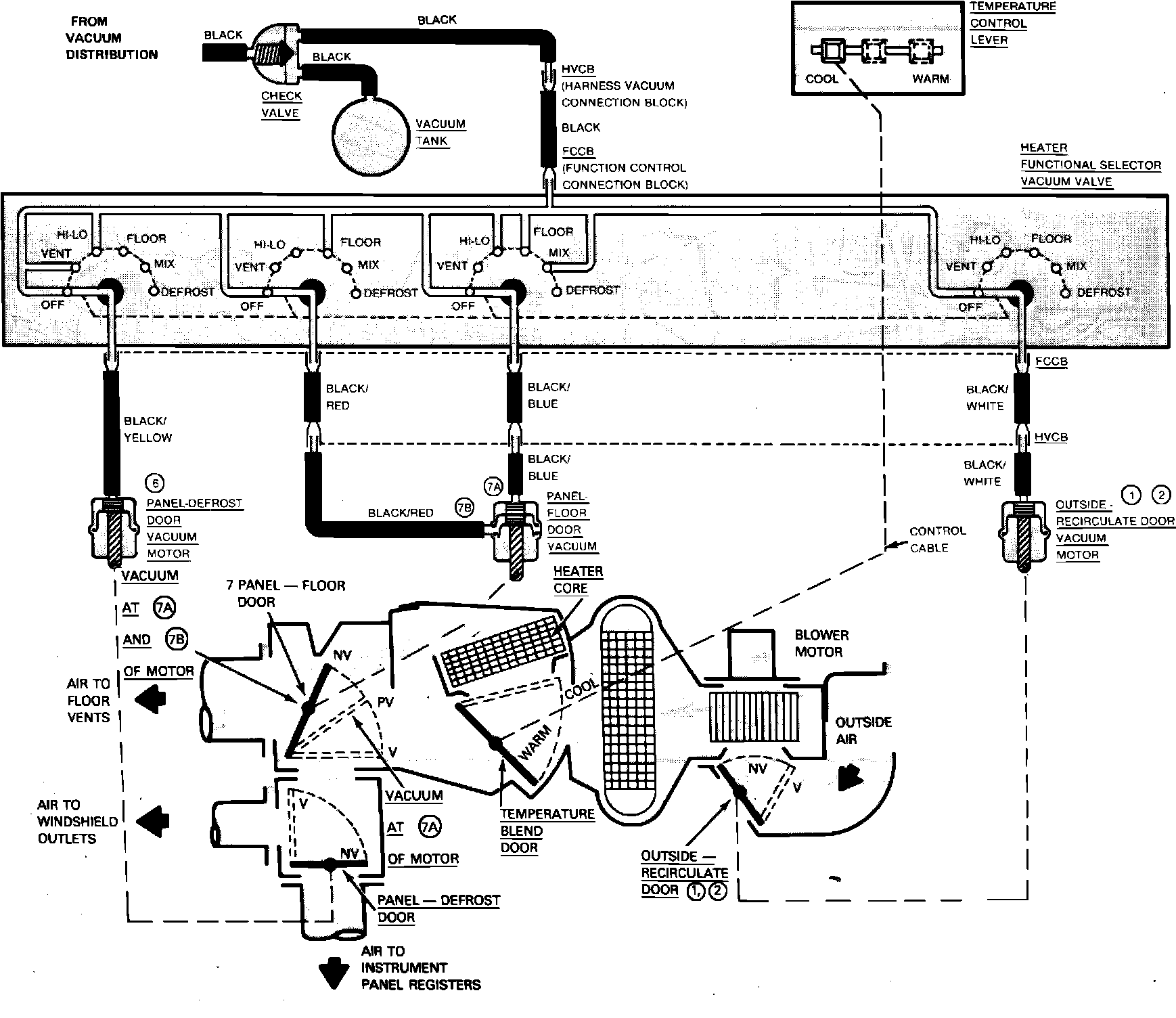

Fig. 17 Heater system control chart.:

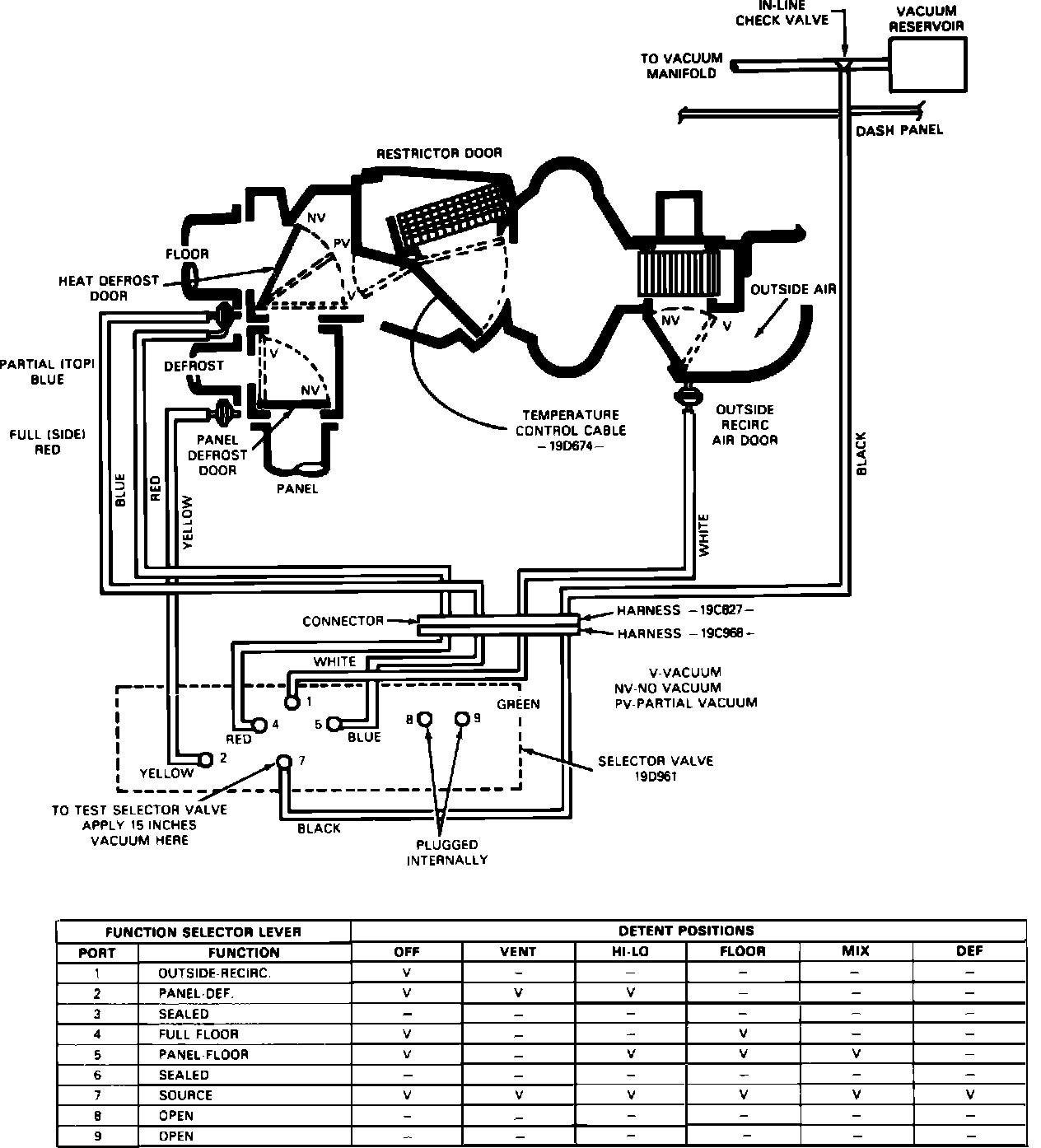

Fig. 46 Heater Vacuum Circuit:
