Premium Sound
Premium Sound

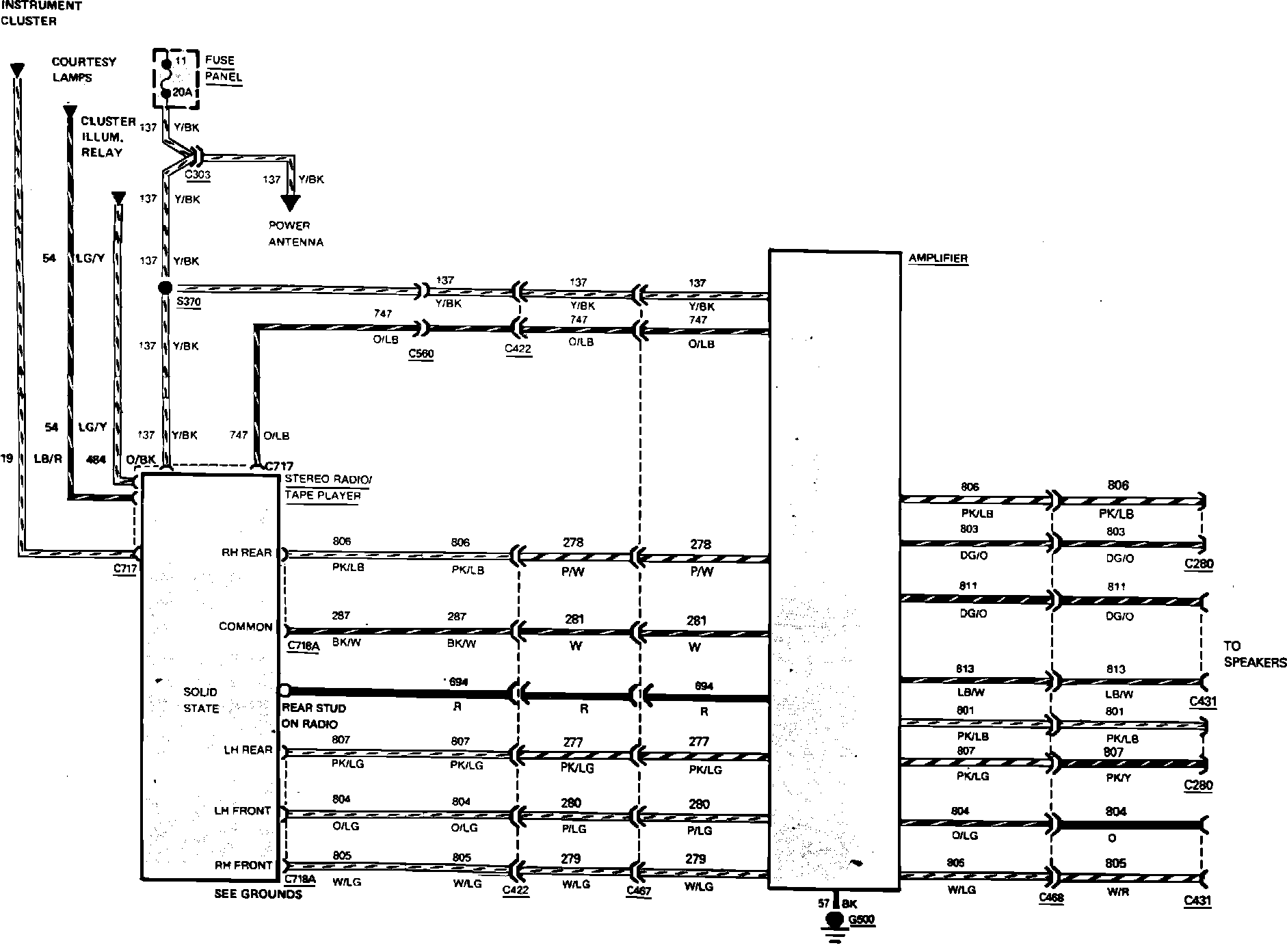

Fig. 74 Radio Wiring Circuit W/Premium Sound (Part 1 of 2):
Fig. 74 Radio Wiring Circuit W/Premium Sound (Part 2 of 2):
