Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Instrument Panel Illumination
>>
Less Electronic ATC
Less Electronic ATC

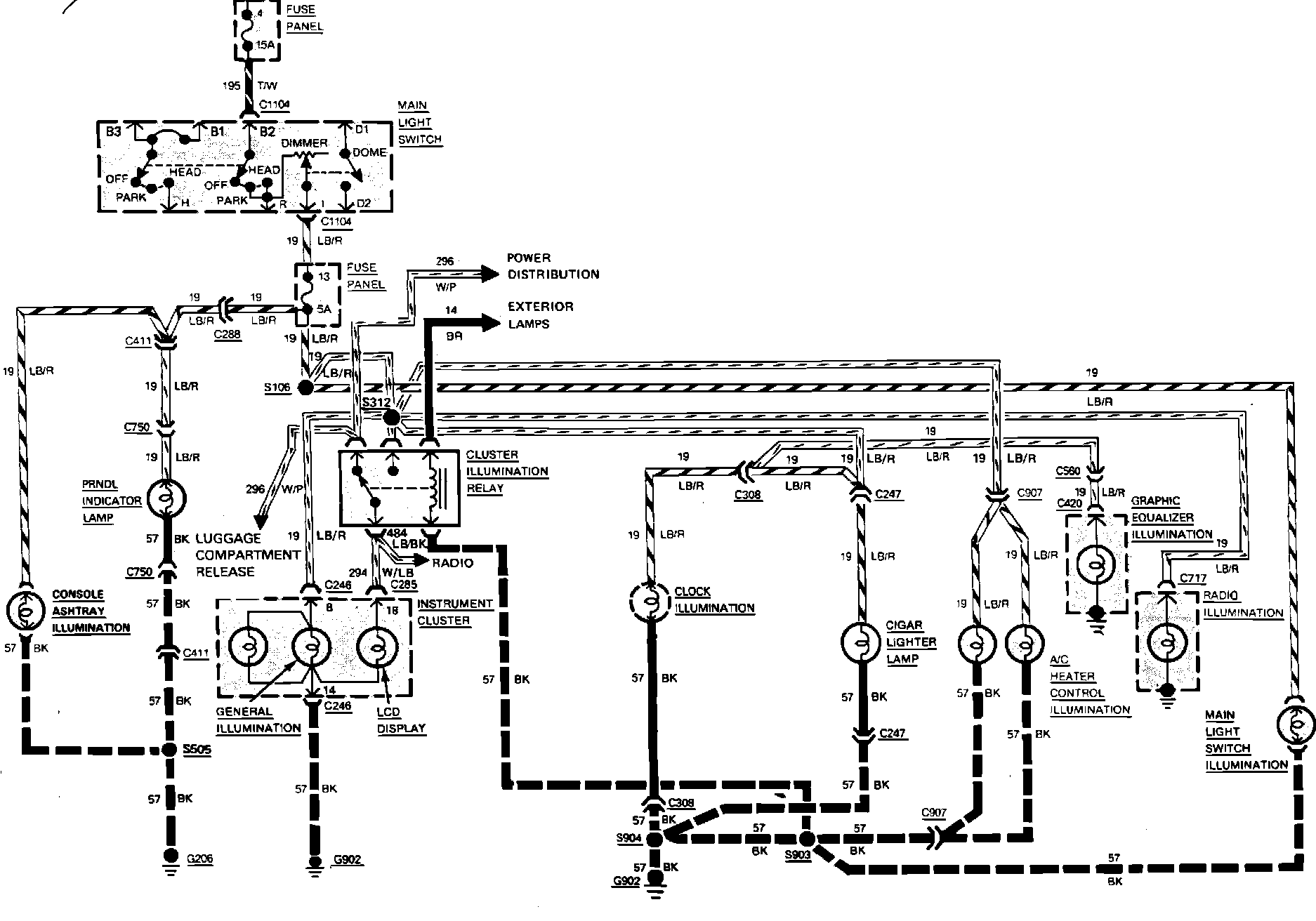

Fig. 53 Instrument Illumination & Transmission Indicator Lamp Wiring Circuit. V6-230/3.8L & V8-302/5.0L Engine Exc. Electronic ATC:
