Warning Chime or Voice Alert Wiring Circuit
Warning Chime or Voice Alert Wiring Circuit

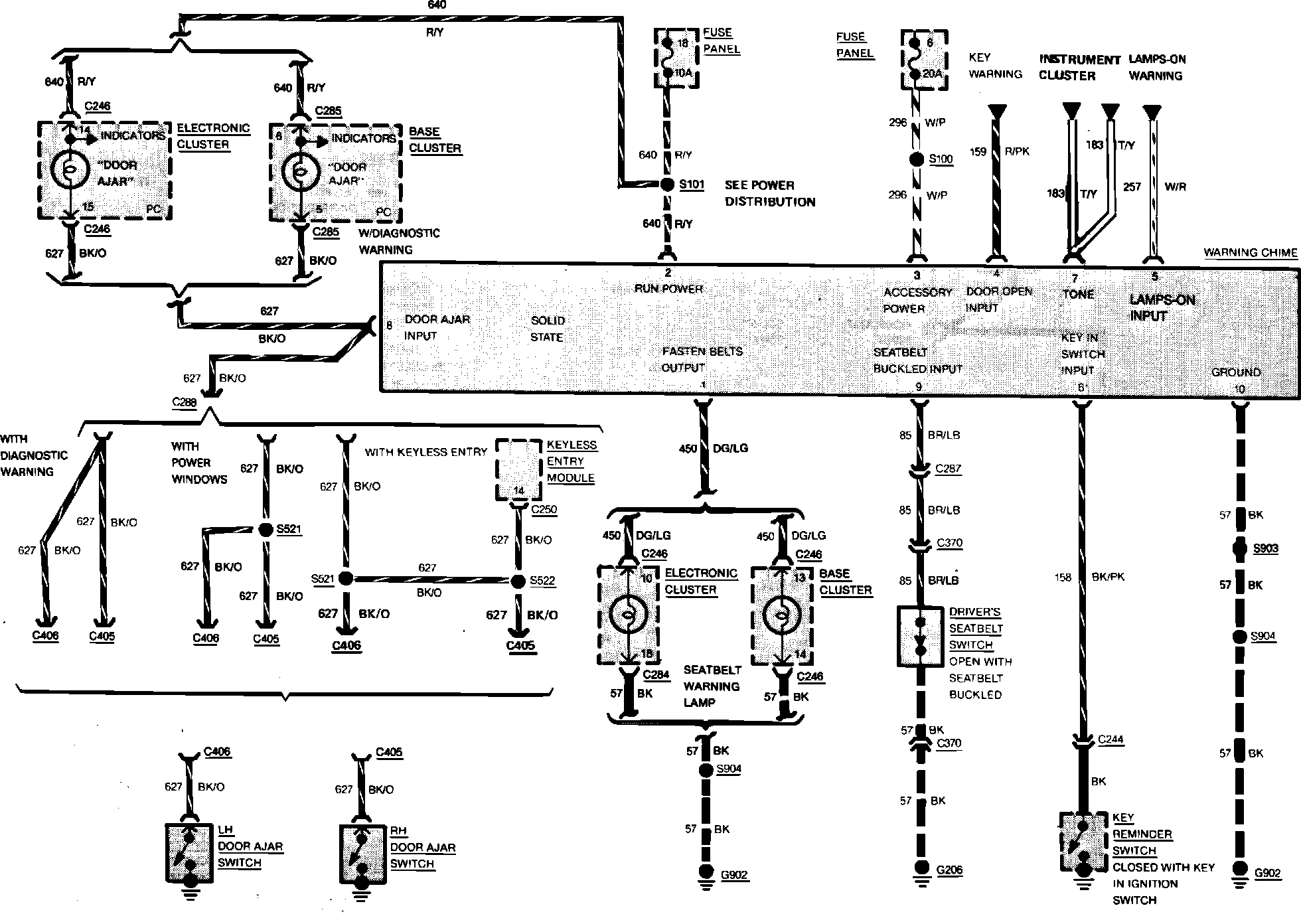

Fig. 81 Warning Chime Wiring Circuit. V6-230/3.8L & V8-302/5.0L Engines:
