Home >> Mercury >> 1987 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Ignition Key Warning

Ignition Key Warning

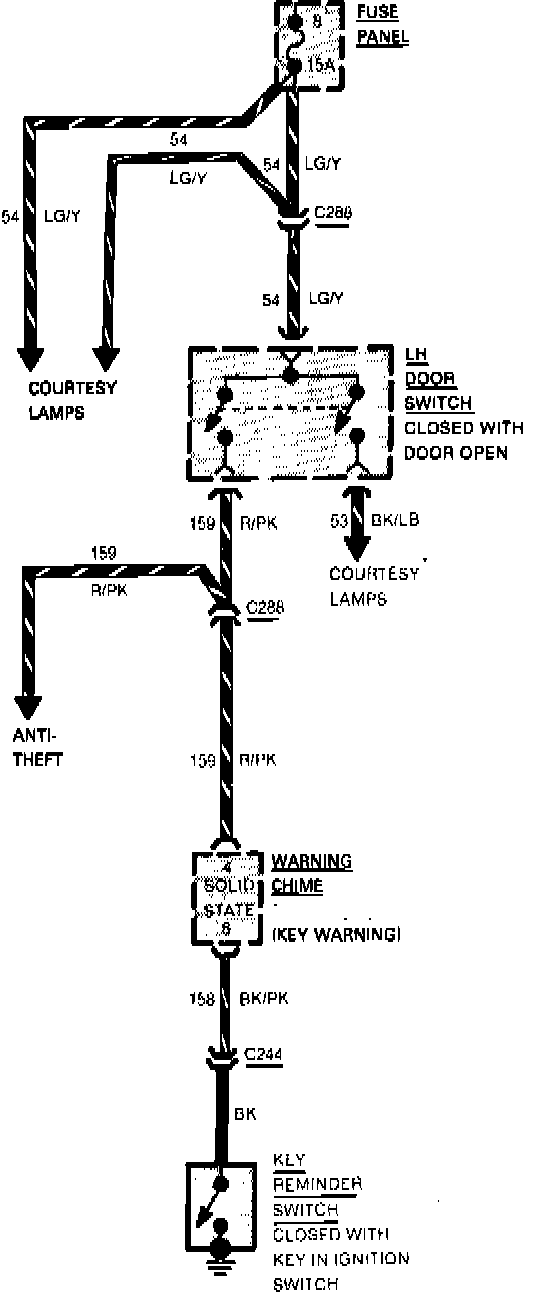

Fig. 89 Key Warning Wiring Circuit:
