Home >> Mercury >> 1987 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Electronic Climate Control >> Part 1 of 3

Part 1 of 3

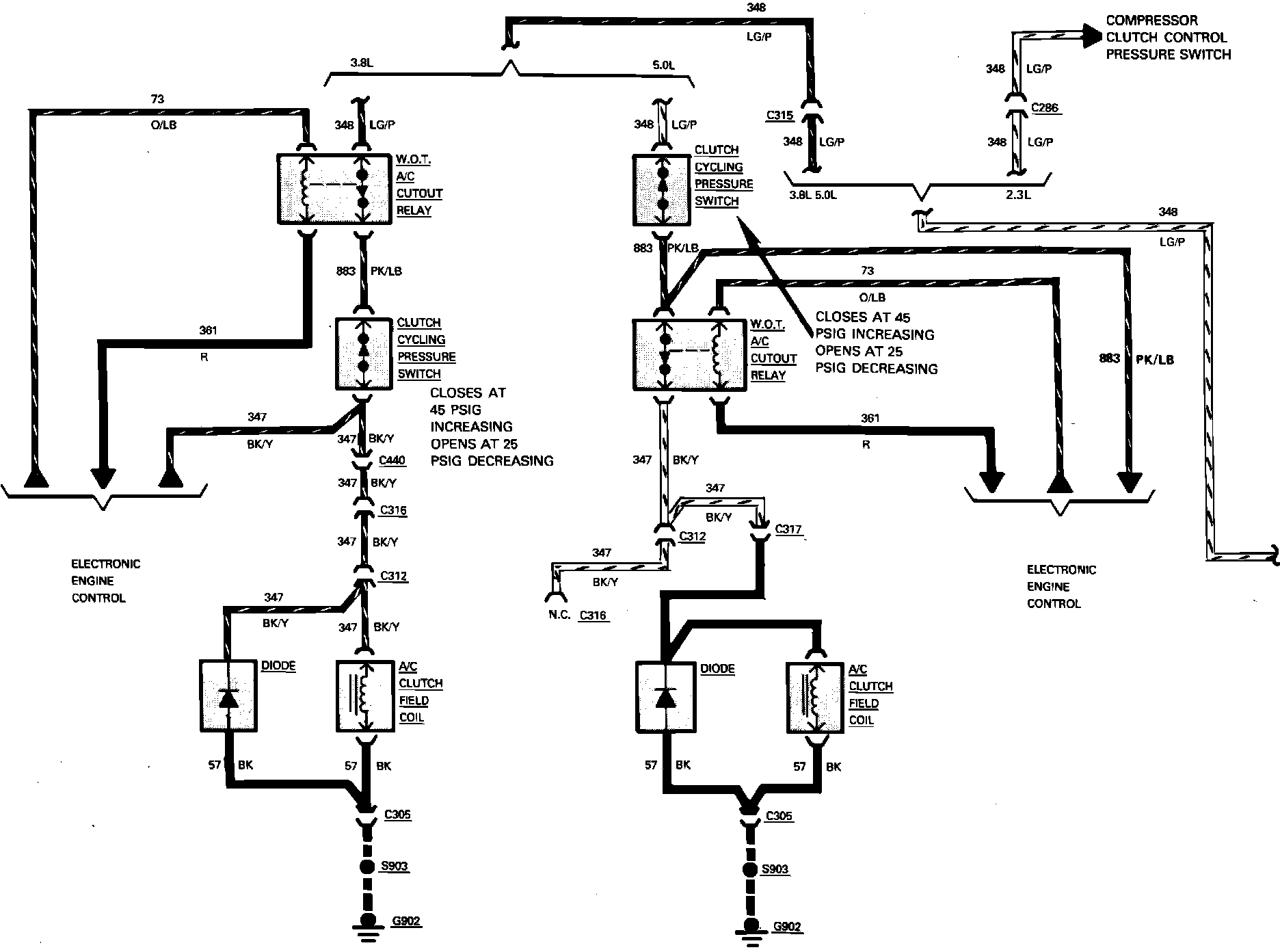

Fig. 2 Air Conditioning Wiring Circuit (Part 1 of 3). With Automatic Temperature Control:
