Pin Point Test B/Keyless Door Entry System - Revision

89Ford15

SHOP MANUAL-1987-SECTION 44-18-KEYLESS DOOR ENTRY SYSTEM - KEYPAD ILLUMINATION TEST PROCEDURE-PINPOINT TEST "B" REVISED

Article No. 89-12A-8

FORD: 1987 THUNDERBIRD

LINCOLN-MERCURY: 1987 CONTINENTAL, COUGAR, MARK VII

ISSUE: The keypad illumination test procedure on page 44-18-17 and page 44-18-18 is incorrect.

ACTION: Refer to the page following this TSB article for the correct procedure. This information should be put in your 1987 Car Shop Manual, pages 44-18-17 and 44-18-18.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800

1987

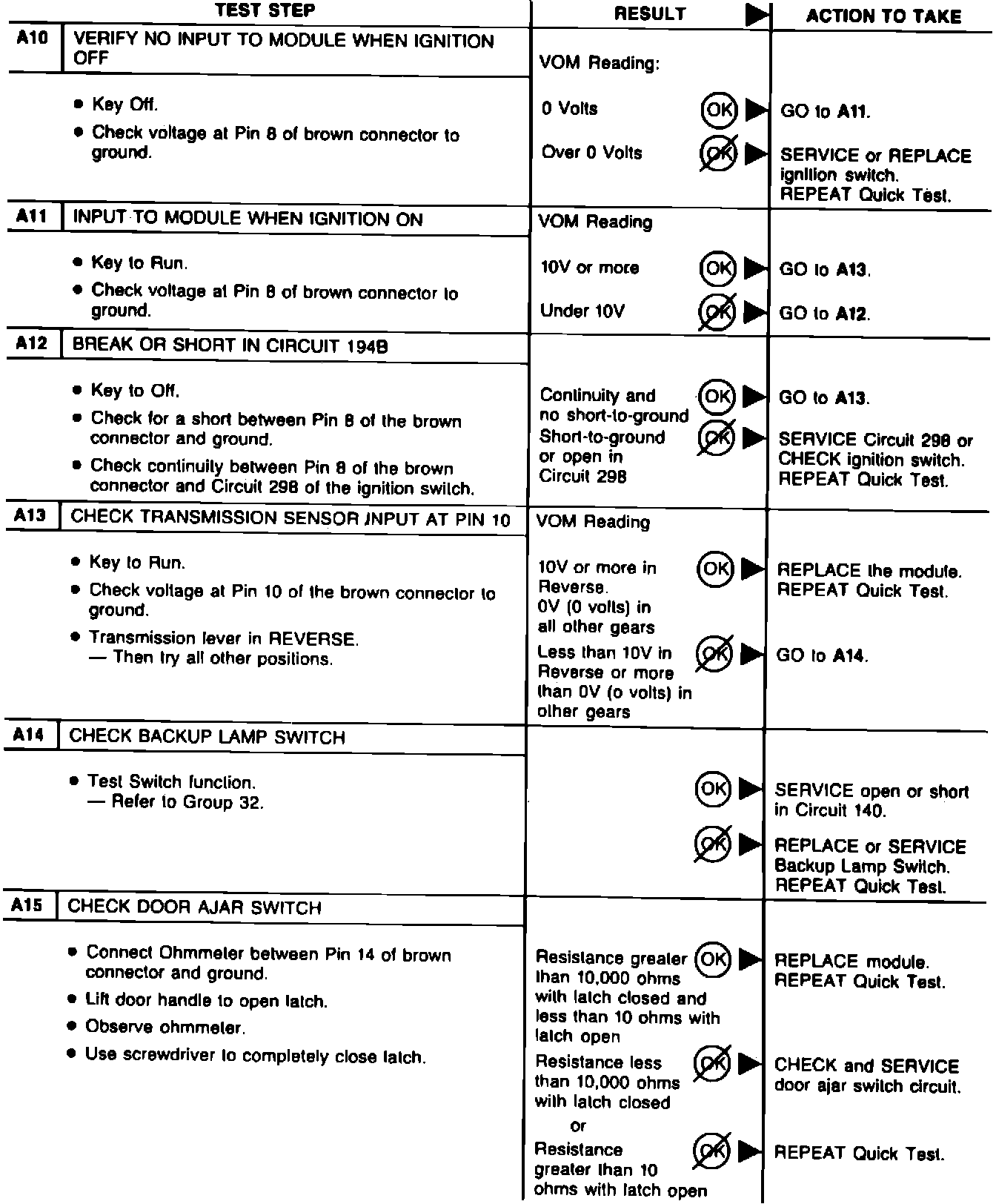

44-18-16 Keyless Door Entry System




PINPOINT TEST A
AUTOMATIC LOCKING SYSTEM - Continued

1987

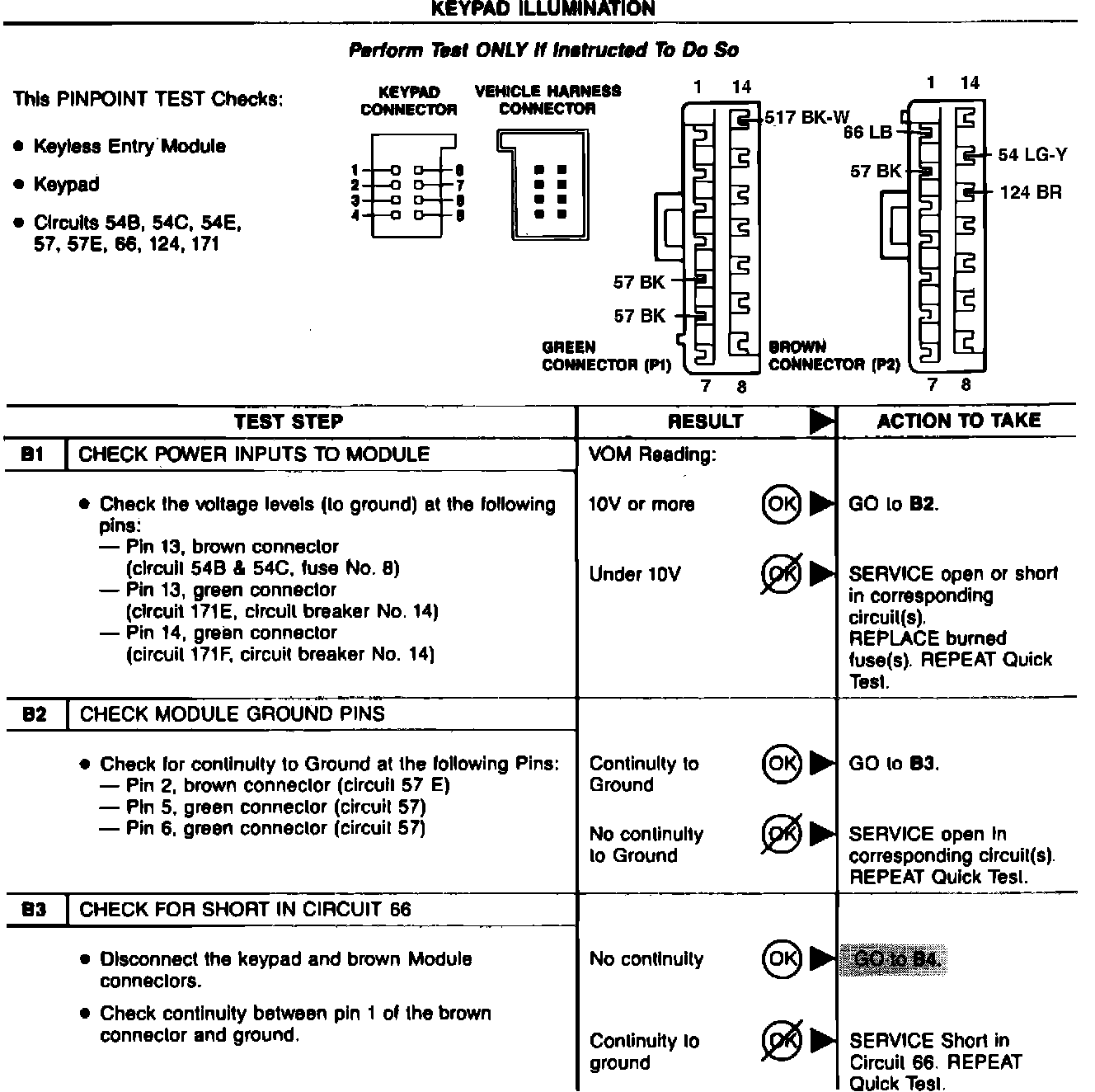

44-18-17 Keyless Door Entry System




PINPOINT TEST B


1987

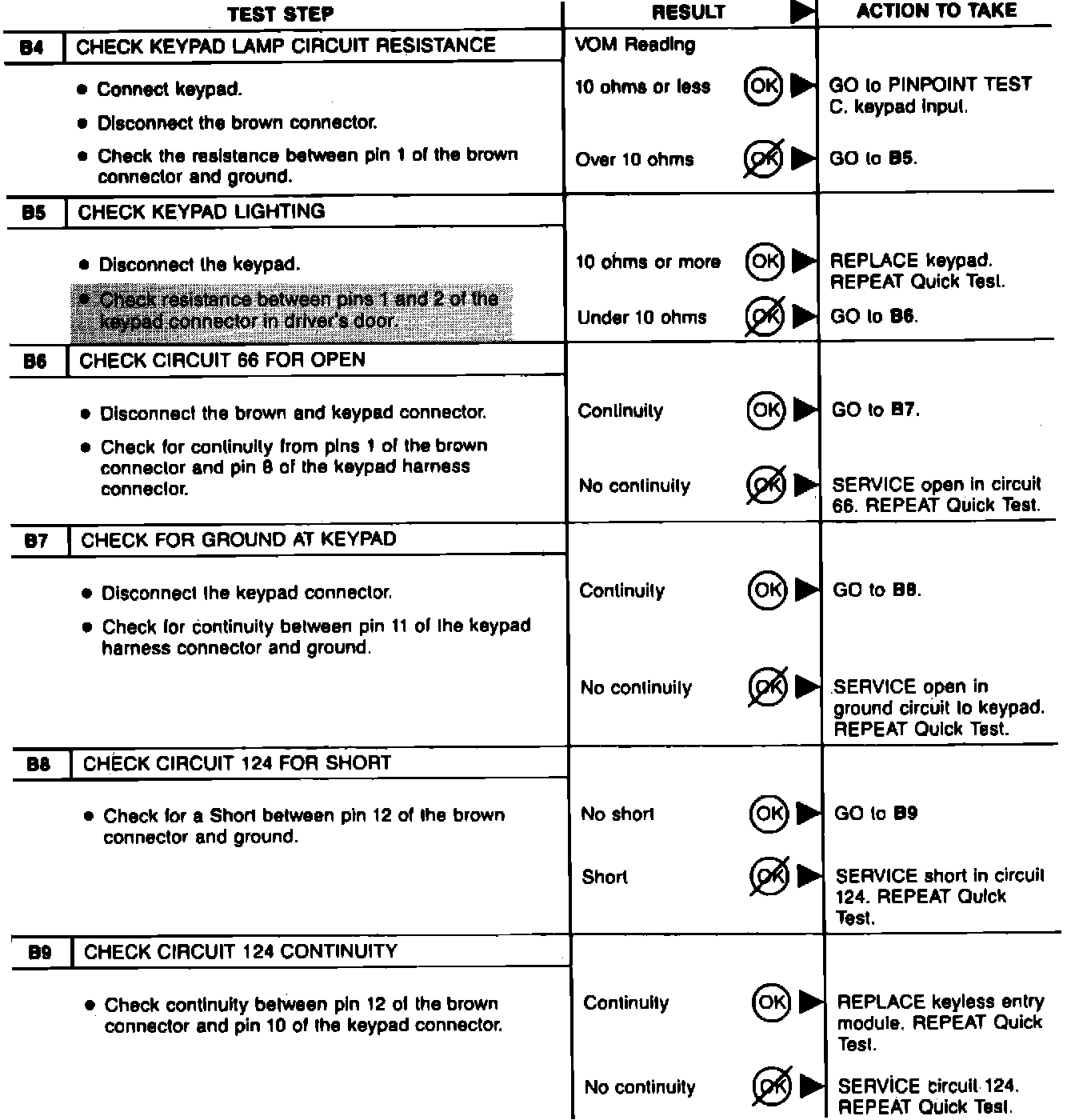

44-18-18 Keyless Door Entry System




PINPOINT TEST B
KEYPAD ILLUMINATION (Continued)

1987

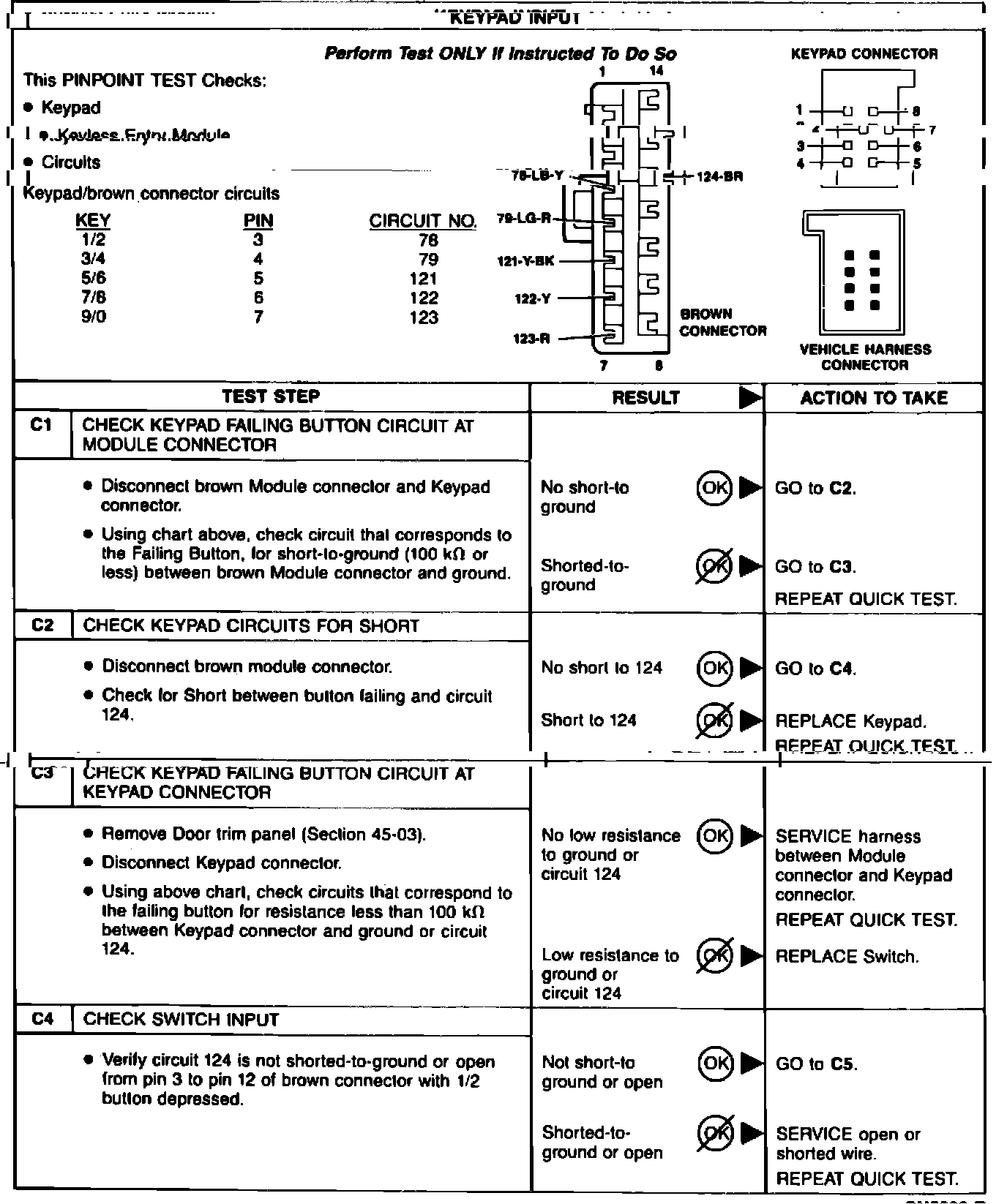

44-18-19 Keyless Door Entry System




PINPOINT TEST C
