Evaporative Emission Control Canister: Locations

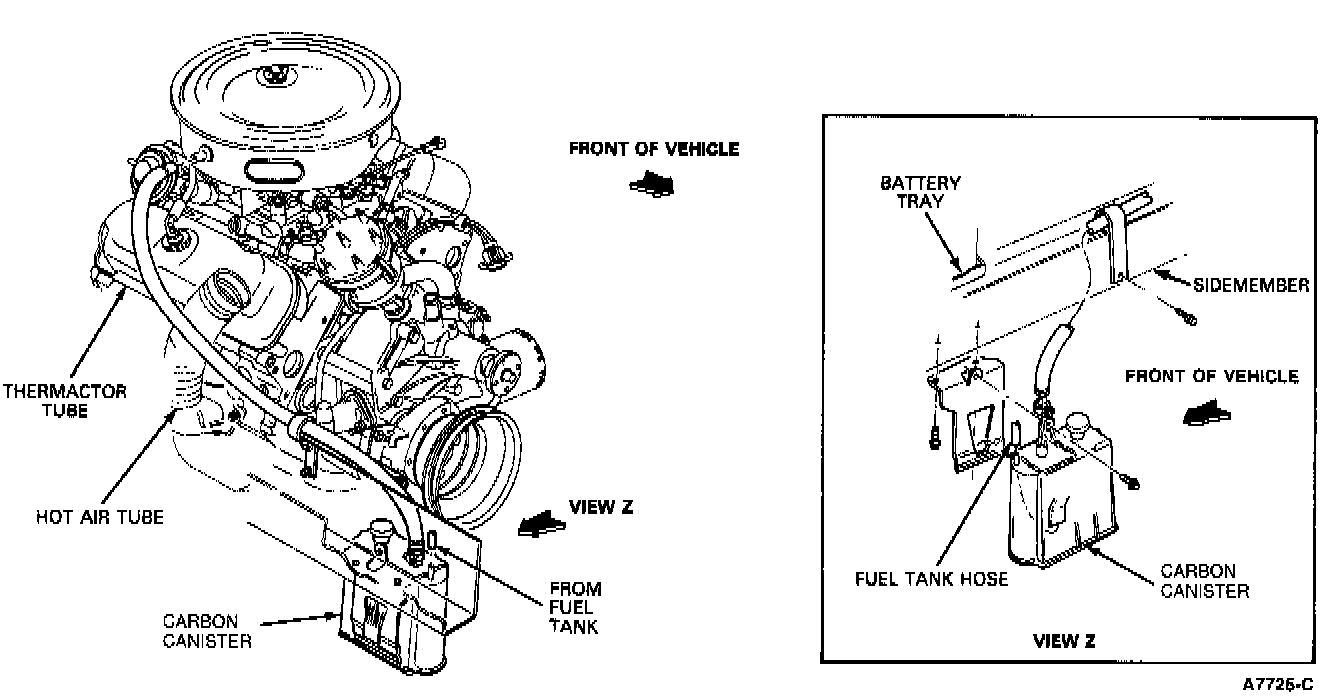

Figure 10 Typical 3.8L CFI Thunderbird/Cougar, Mustang, 50 States-Evaporative Emission System:

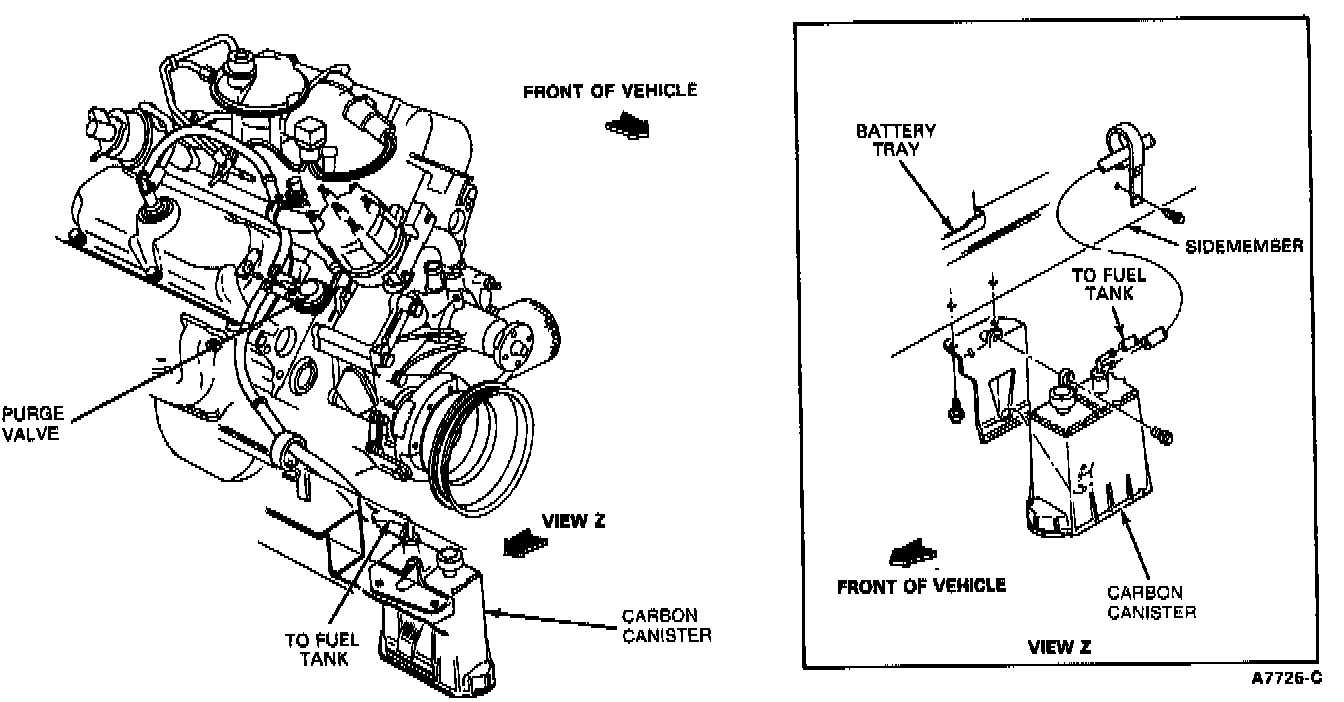

Figure 11 Typical 3.8L-2V Thunderbird/Cougar, Canada (Carbureted Only)-Evaporative Emission System:
