Low Oil Level and Dash Warning Indicators

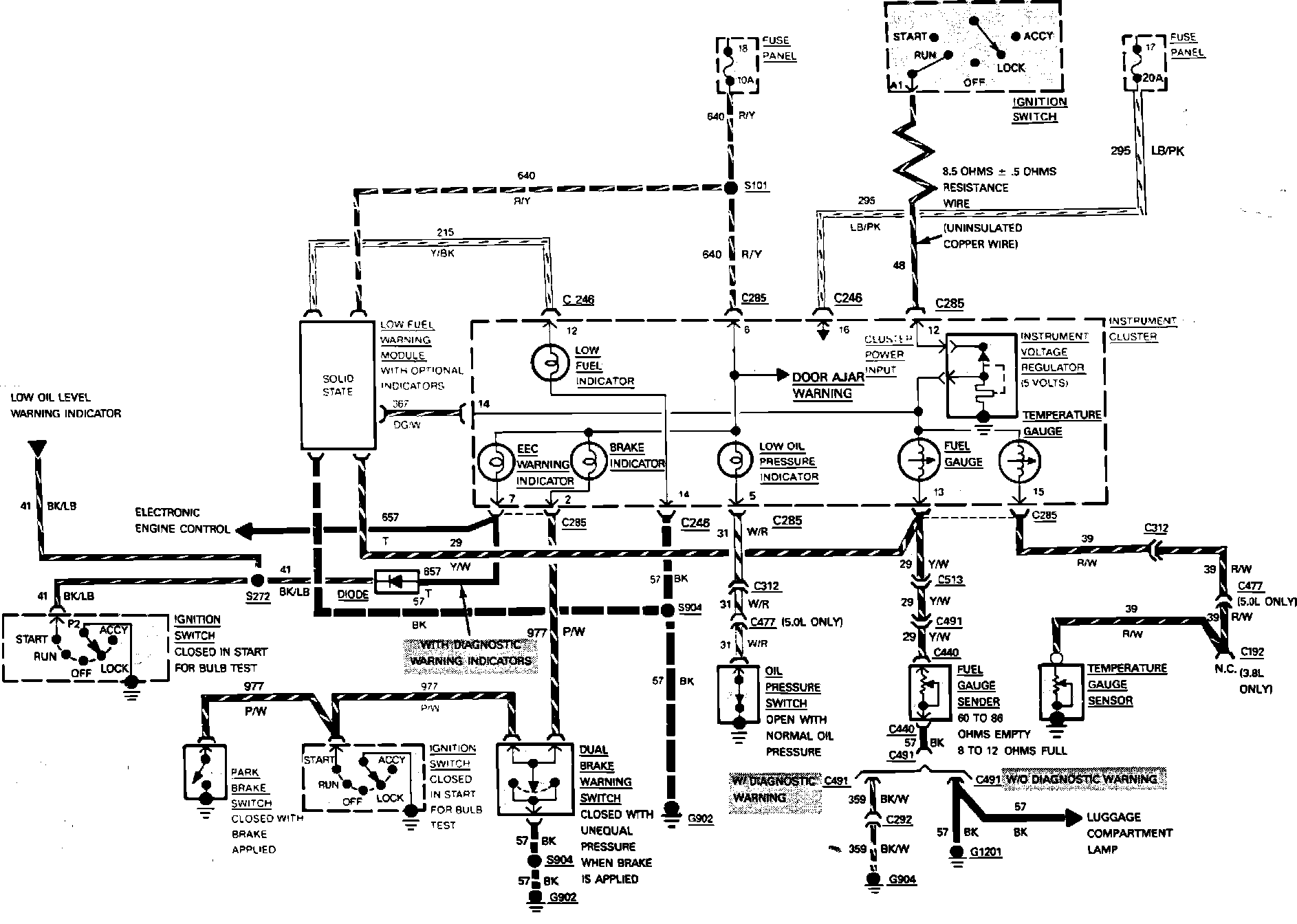

Fig. 13 Brake, Fuel, Low Fuel, Oil Pressure & Temperature Gauges & Indicator Wiring Circuit. V6-230/3.8L & V8-302/5.0L Engines:
