Driver/Vehicle Information Display

Fig. 3 Graphic display warning indicator wiring diagram. 1982---87 Ford & Mercury Exc. Escort & Lynx (Mustang/Capri & Fairmont/Zephyr sedan shown, typical of other models):

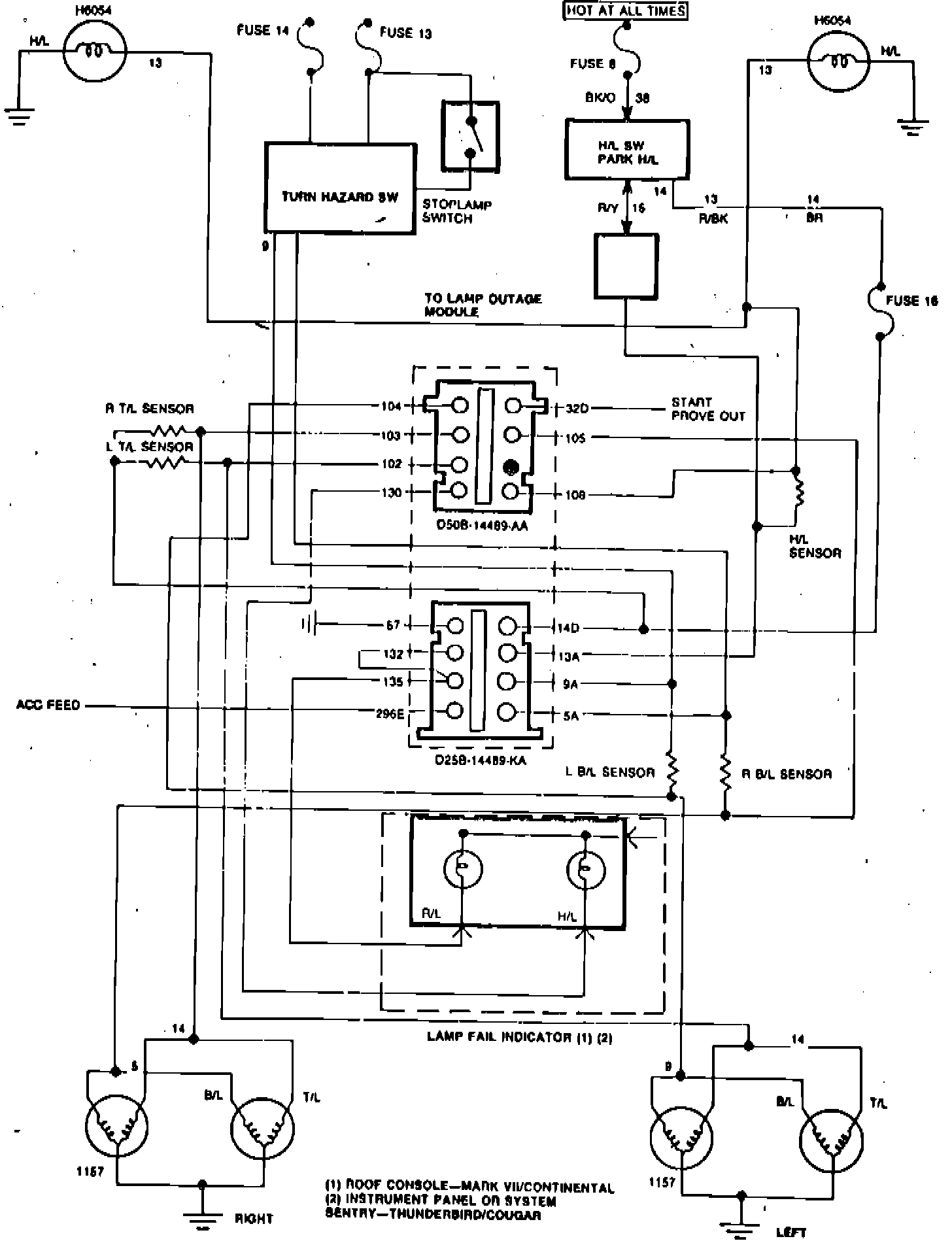

Fig. 9 Graphic display warning indicator wiring diagram. 1987 Cougar, Continental, Mark VII & Thunderbird:
