Home >> Mercury >> 1987 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Heating and Air Conditioning >> With A/C

With A/C

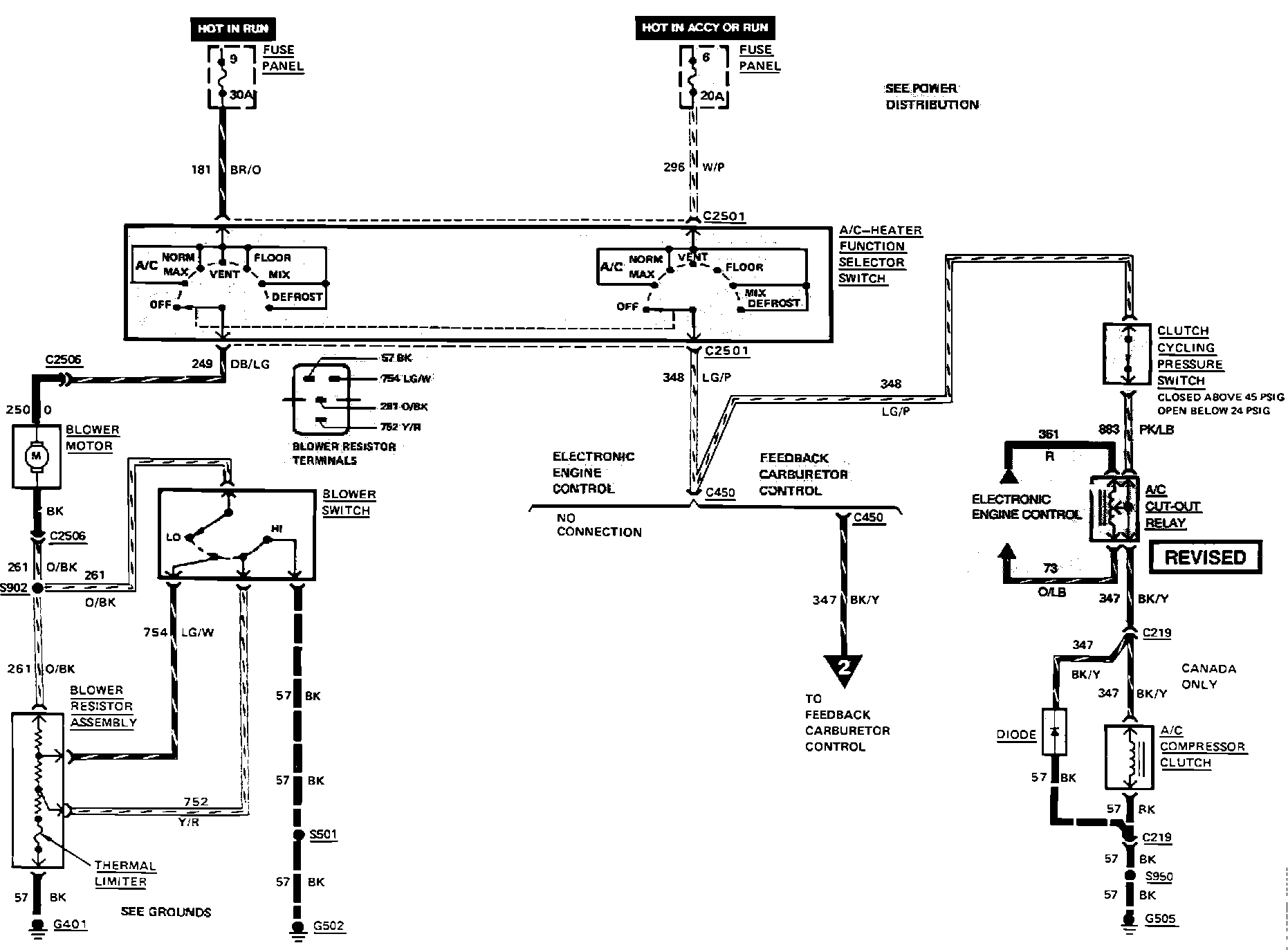

Fig. 6 Air Conditioning Wiring Circuit. Manual System:





*** UPDATED BY TSB #9025B16 12-21-90
