Carburetor Feedback Motor - 7200

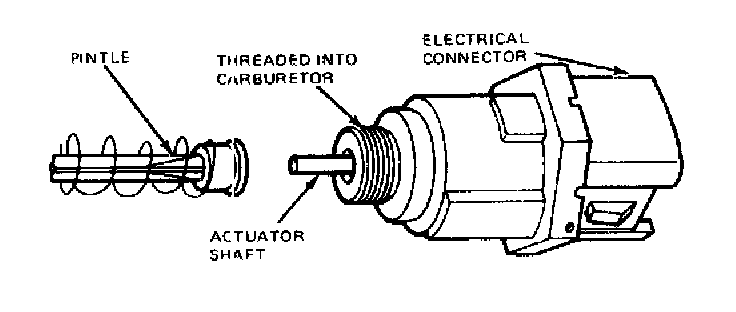

The Actuator is part of the Carburetor Feedback Control System, used on 7200 model carburetors. The actuator is threaded into the carburetor body, and its actuator shaft moves a fuel metering pintle valve to produce a richer or leaner air/fuel mixture at the carburetor. In response to an electronic signal coming from the Exhaust Gas Oxygen (EGO) sensor and conditioned by the EEC (or MCU) System, the actuator shaft moves in and out.
