Instrument Panel Ground

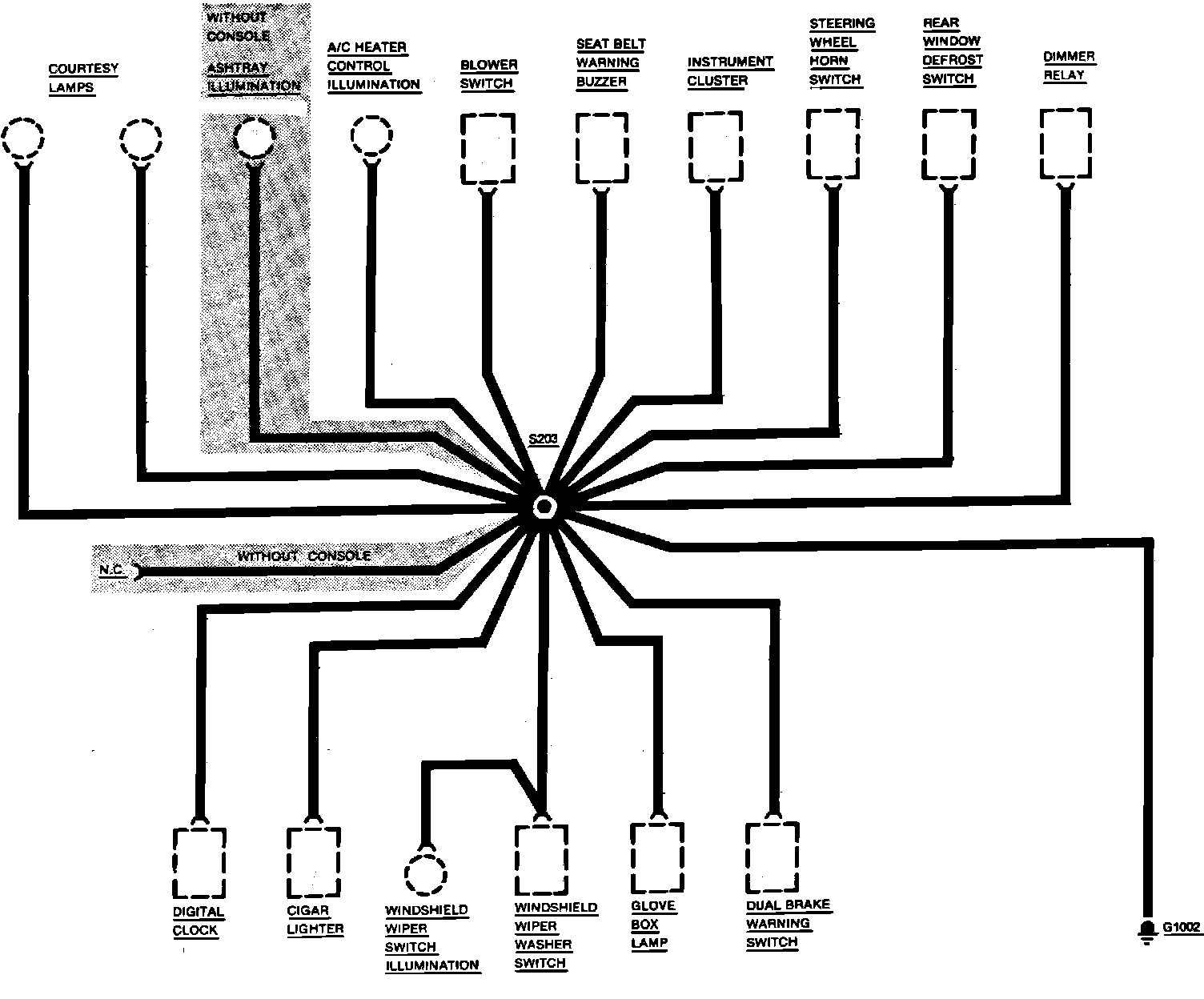

Fig. 12 Ground Distribution Wiring Circuit (Part 7 of 8). Tempo & Topaz:



Fig. 12 Ground Distribution Wiring Circuit (Part 8 of 8). Tempo & Topaz:
