Topaz L4-122 2.0L DSL
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Lighting and Horns
>>
Turn Signal Switch
>>
Diagrams
>>
Electrical Diagrams
>>
With CFI or Lamp Out Warning System
With CFI or Lamp Out Warning System

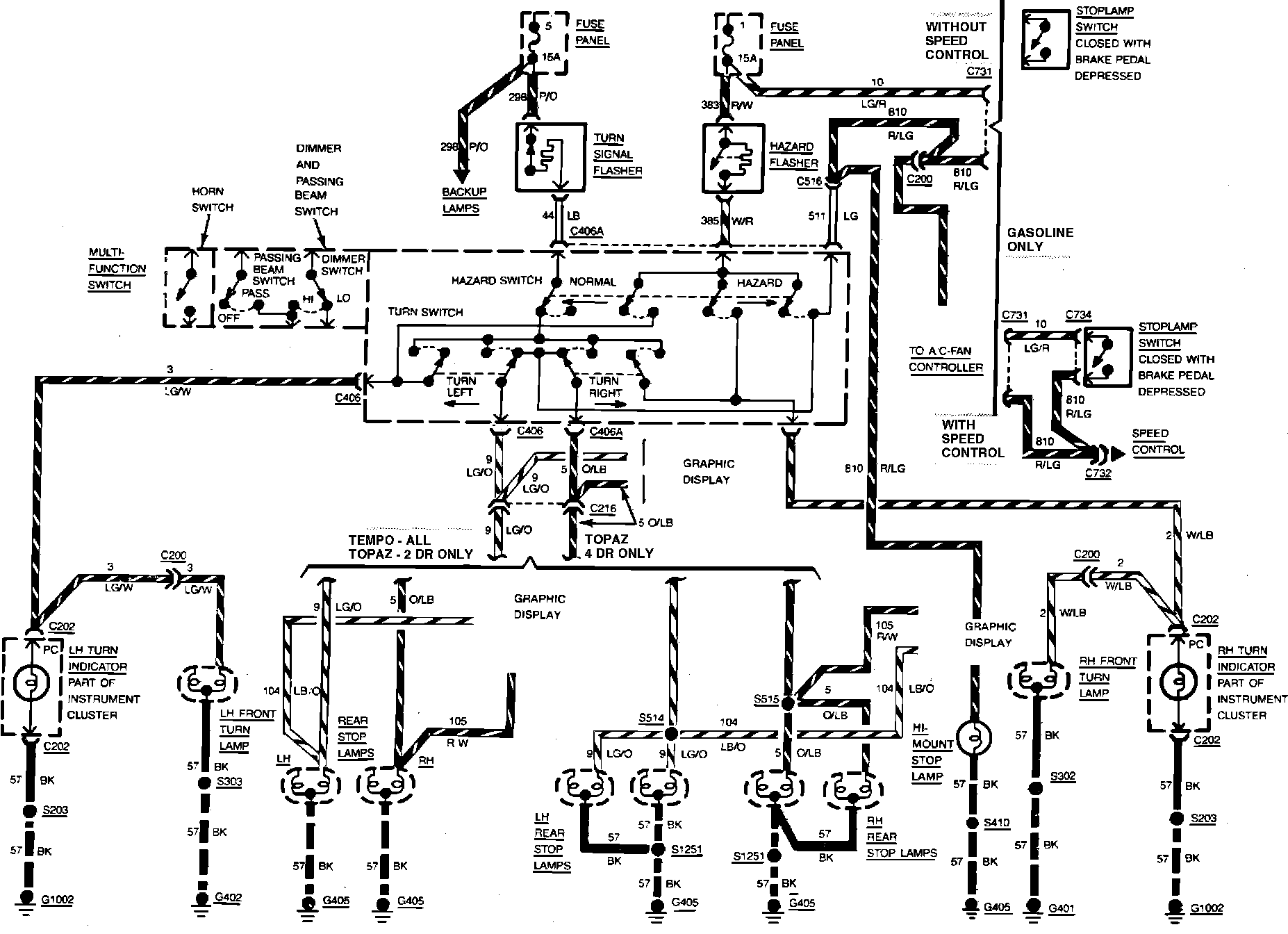

Fig. 14 Hazard Warning, Stop Lamp & Turn Signal Warning Circuit. Tempo & Topaz W/CFI Or Lamp Out Warning System:
