Backup Lamp Switch: Locations

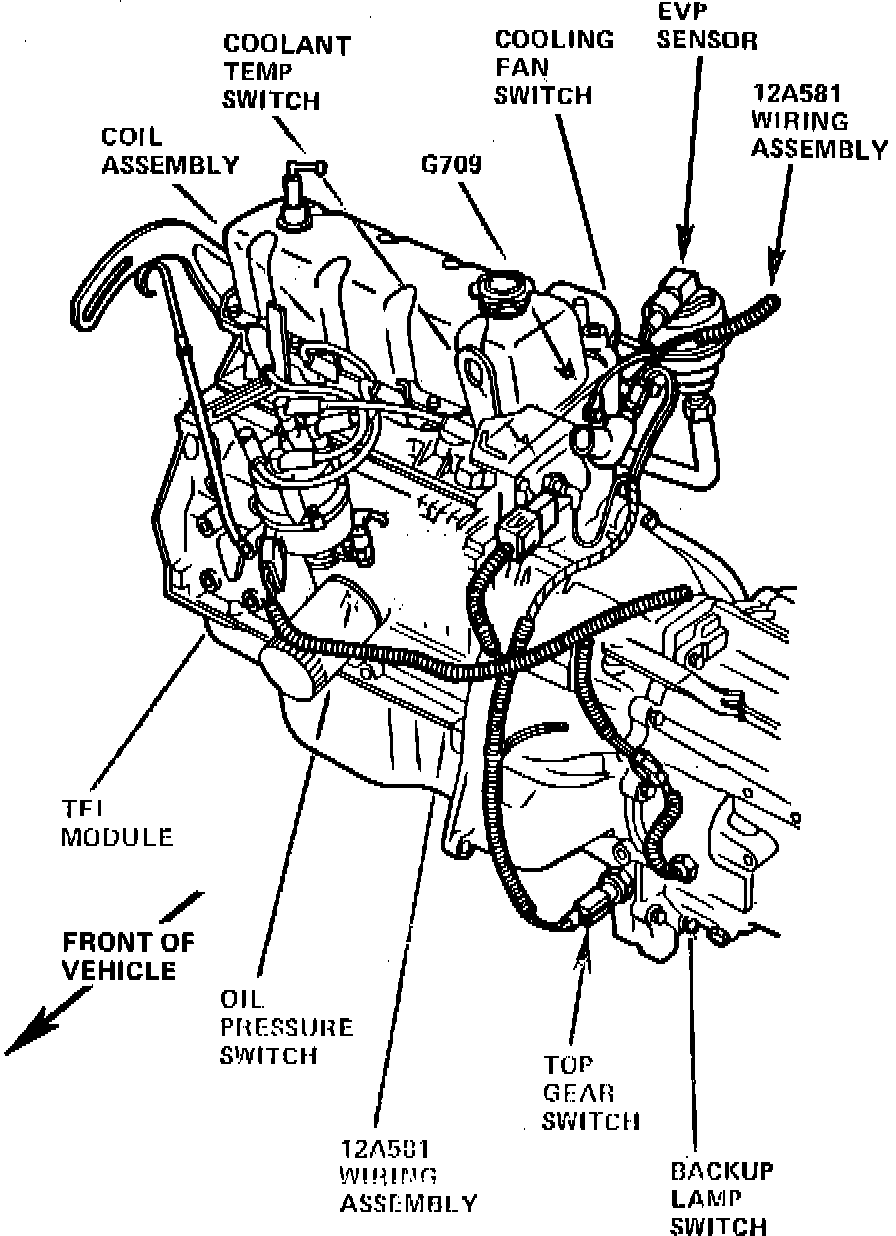

Front View Of 4-140/2.:




Lower LH Front Of Transmission

Applicable to: 3L Engine W/Manual Transaxle
