Home >> Mercury >> 1986 >> Topaz L4-122 2.0L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Malfunction Indicator Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

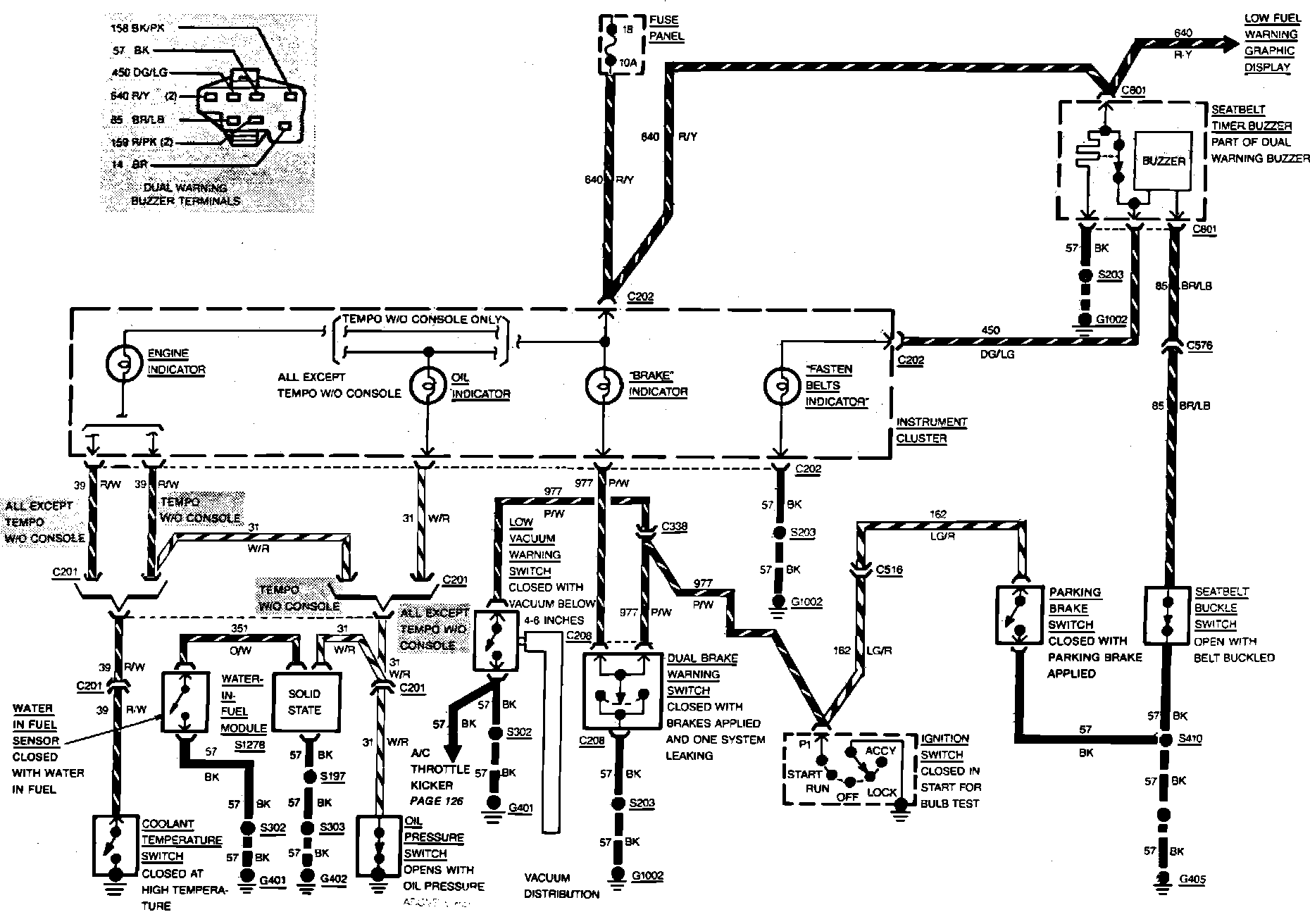

Fig. 33 Warning Indicator Wiring Circuit. Tempo & Topaz W/Diesel Engine:
