Mercury
>>
1986
>>
Topaz L4-122 2.0L DSL
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Cooling System
>>
Relays and Modules - Cooling System
>>
Radiator Cooling Fan Control Module
>>
Diagrams
>>
Electrical Diagrams
>>
With A/C
With A/C

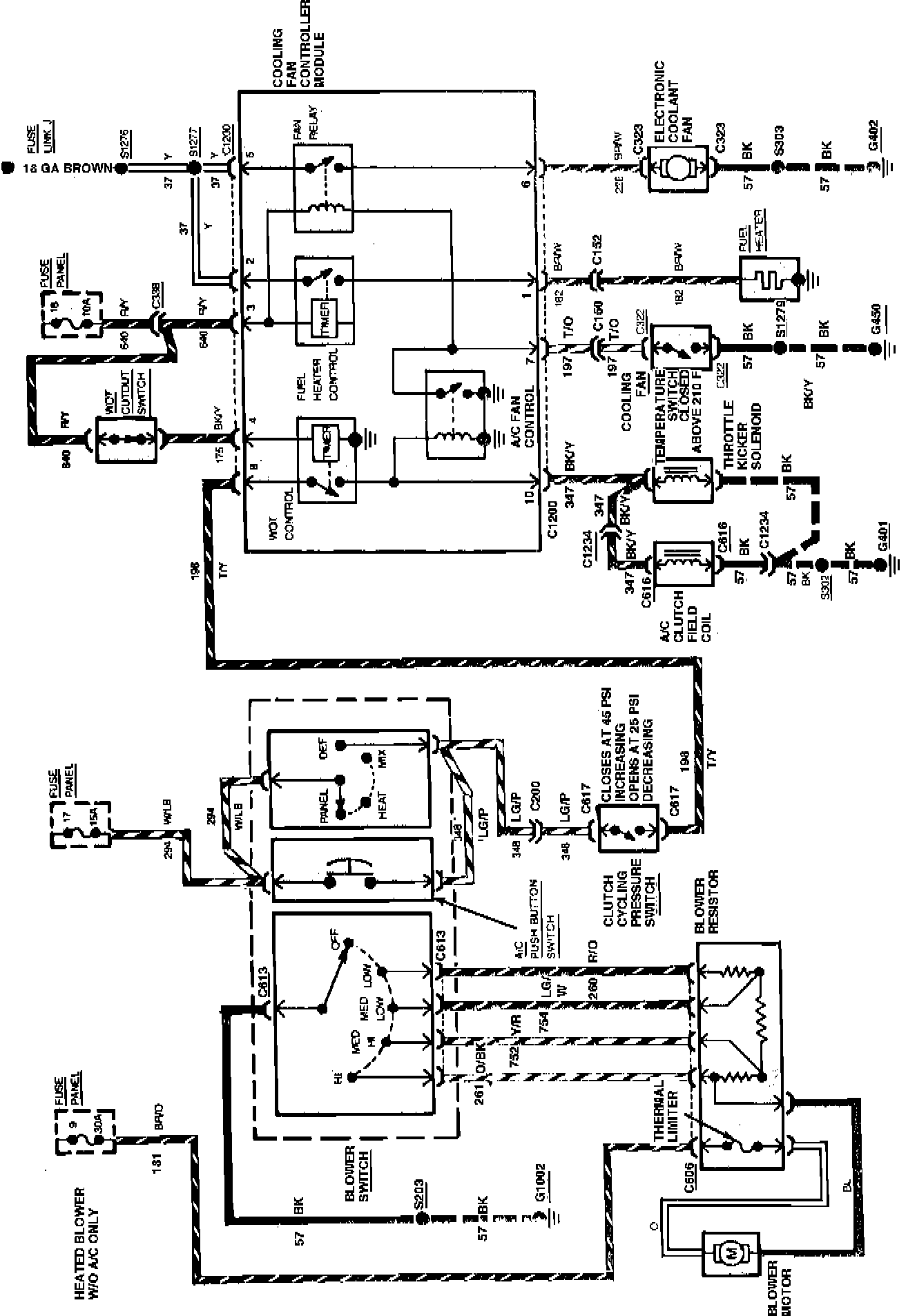

Fig. 2 Air Conditioning, Heater, Engine Cooling Fan & Fuel Heater Wiring Circuit. Tempo & Topaz W/Diesel Engine:
