Rear Lamp Grounds Topaz 4-Door

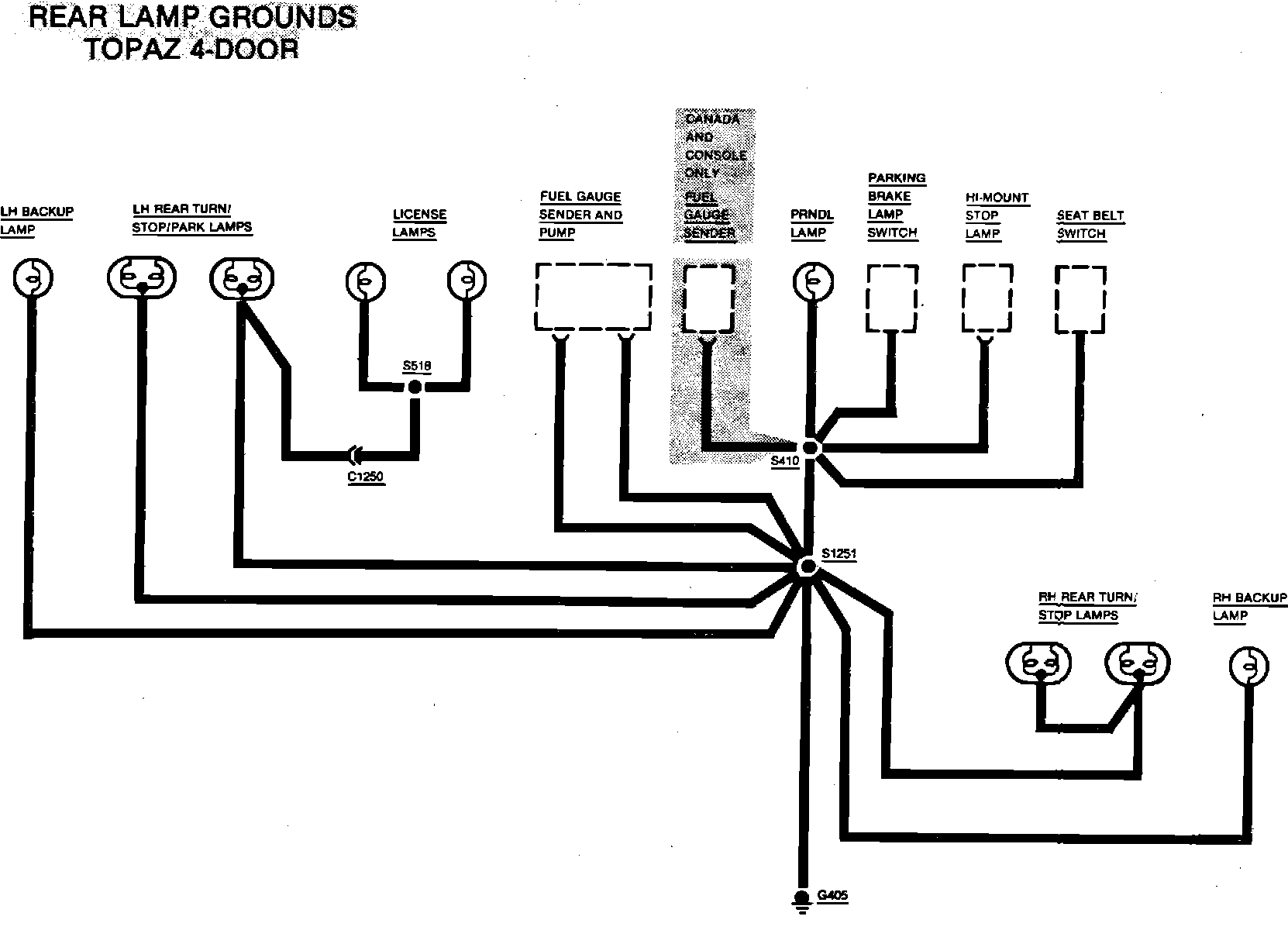

Fig. 12 Ground Distribution Wiring Circuit (Part 5 of 8). Tempo & Topaz:
