Home >> Mercury >> 1986 >> Topaz L4-122 2.0L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> Rear Lamp Grounds Topaz 2-Door

Rear Lamp Grounds Topaz 2-Door

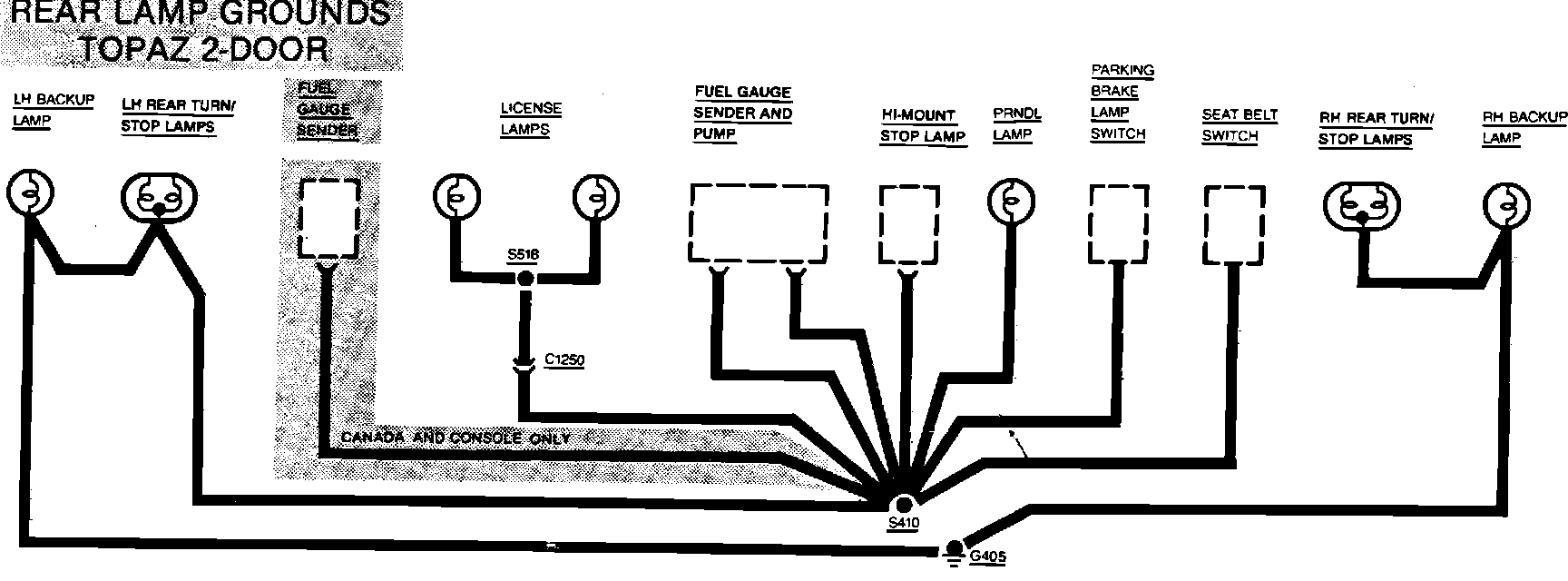

Fig. 12 Ground Distribution Wiring Circuit (Part 4 of 8). Tempo & Topaz:
