Home >> Mercury >> 1986 >> Topaz L4-122 2.0L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Charging System >> Part 1 of 6

Part 1 of 6

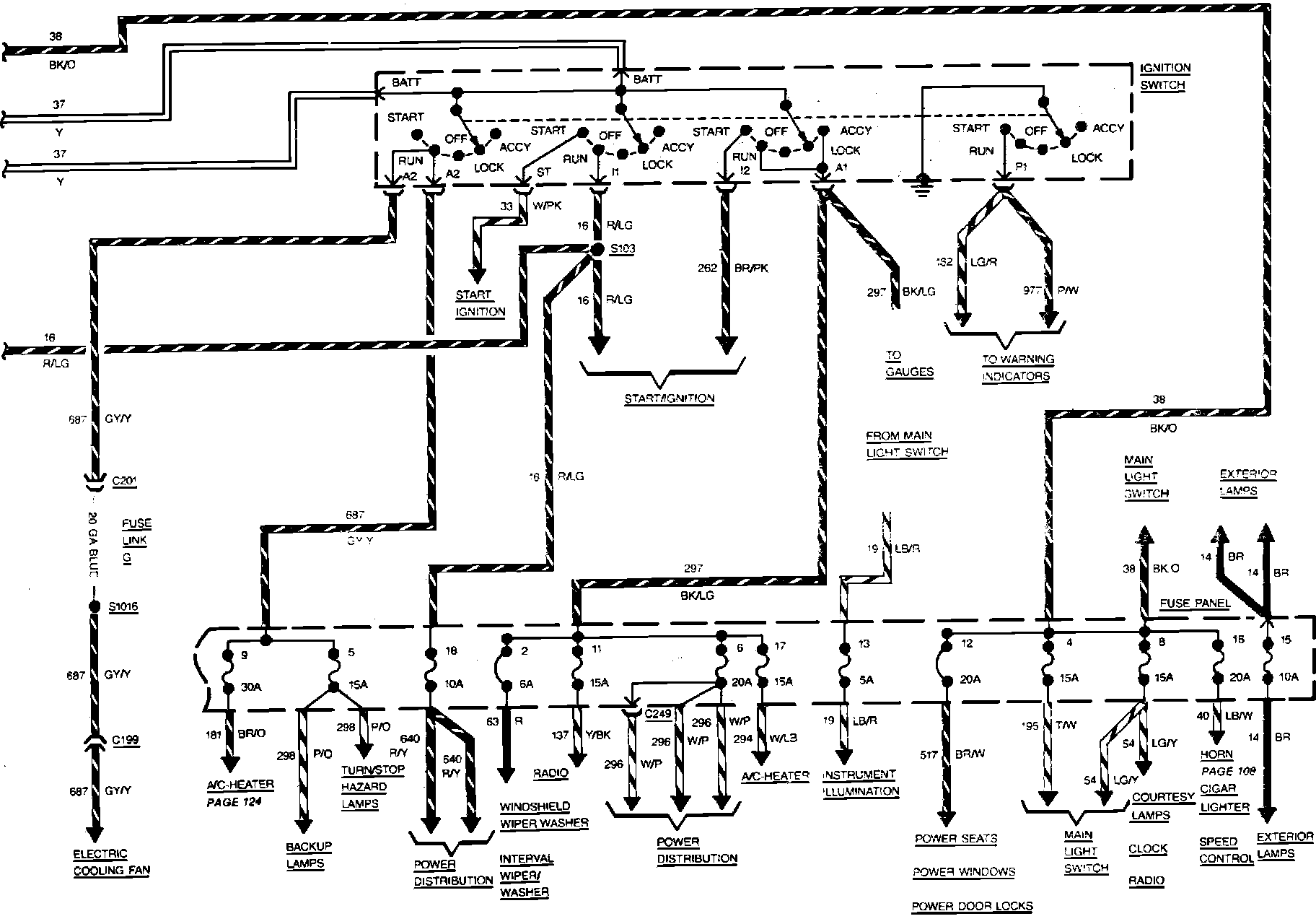

Fig. 4 Charging System & Power Distribution Wiring Circuit (Part 1 of 6). Tempo & Topaz:
