Less Lamp Out Warning & CFI

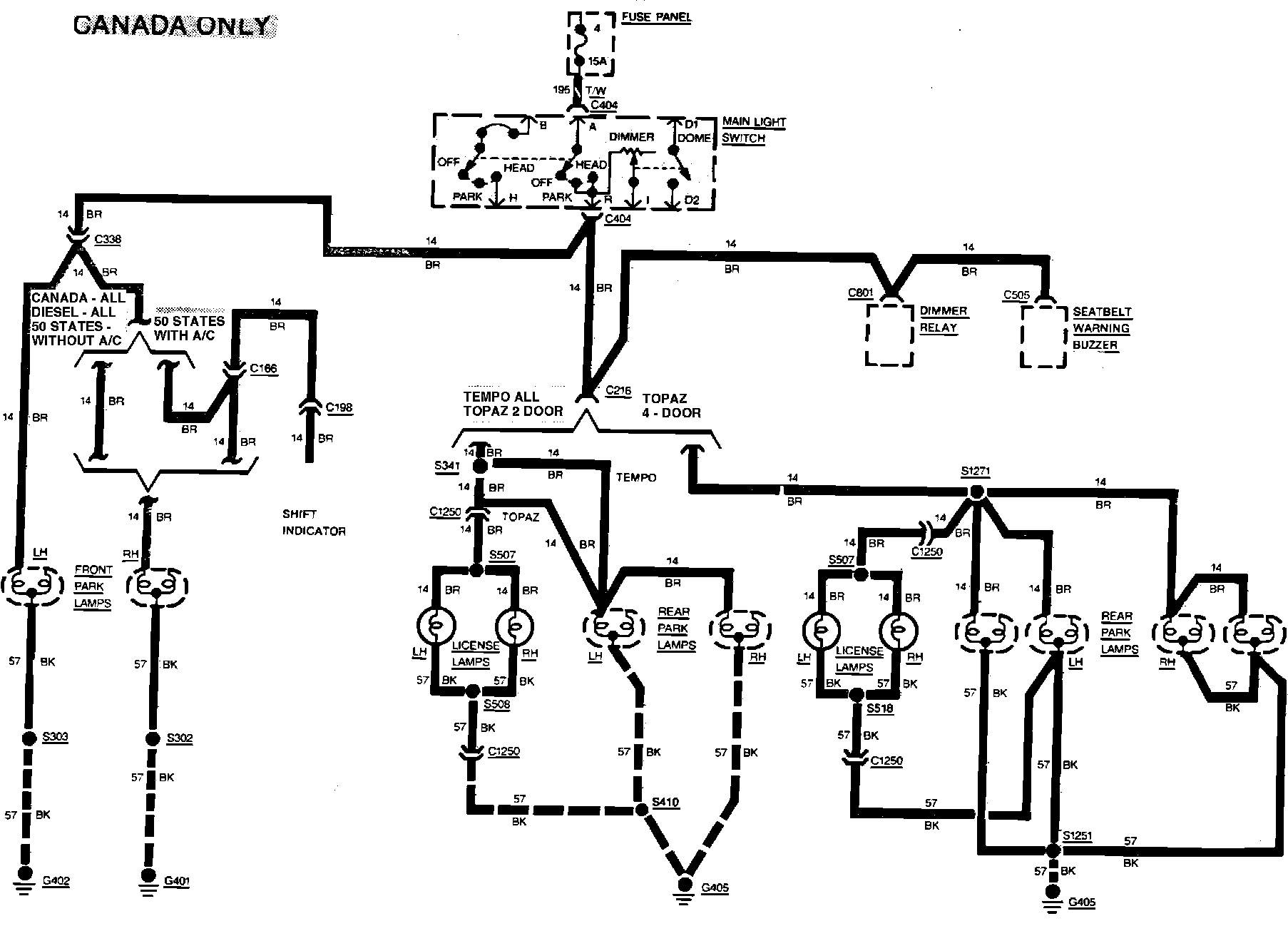

Fig. 22 License Plate & Parking Lamp Wiring Circuit. Tempo & Topaz Less CFI & Lamp Out Warning System:
