W/Automatic Transmission

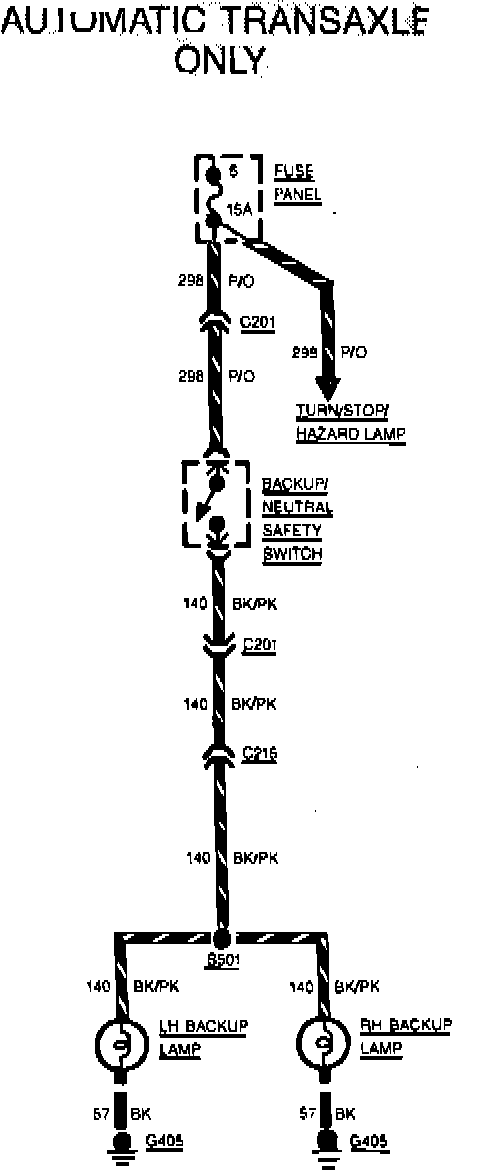

Fig. 37 Back-Up Lamp Wiring Circuit. Tempo & Topaz W/Automatic Transmission:
