Home >> Mercury >> 1986 >> Topaz L4-122 2.0L DSL >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Power Door Lock Switch >> Diagrams >> Electrical Diagrams >> Four Door Models

Four Door Models

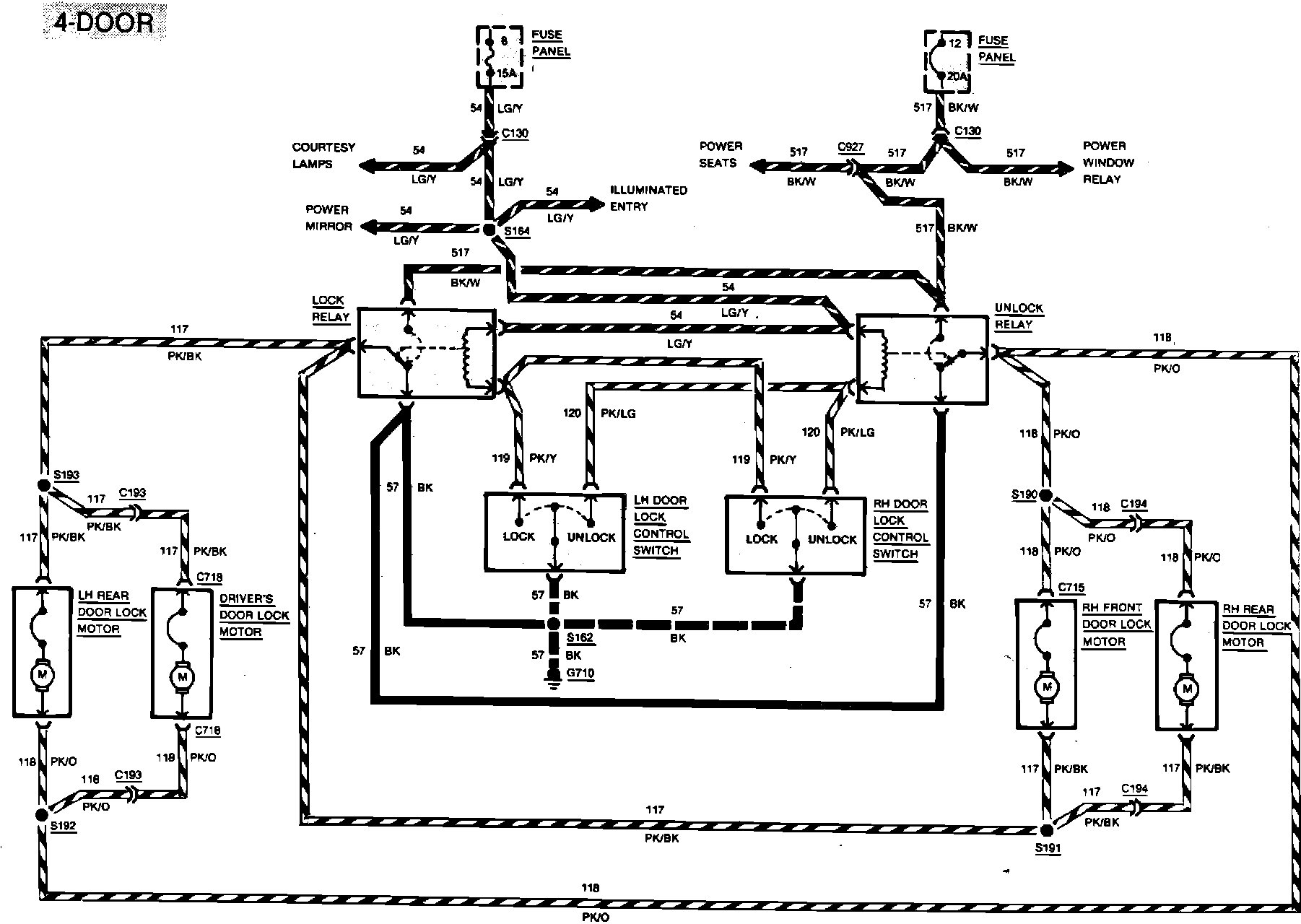

Fig. 25 Power Door Lock Wiring Circuit. Tempo & Topaz 4 Door Models:
