Home >> Mercury >> 1986 >> Topaz L4-122 2.0L DSL >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Electrical Diagrams >> Premium Sound Less Electric Search

Premium Sound Less Electric Search

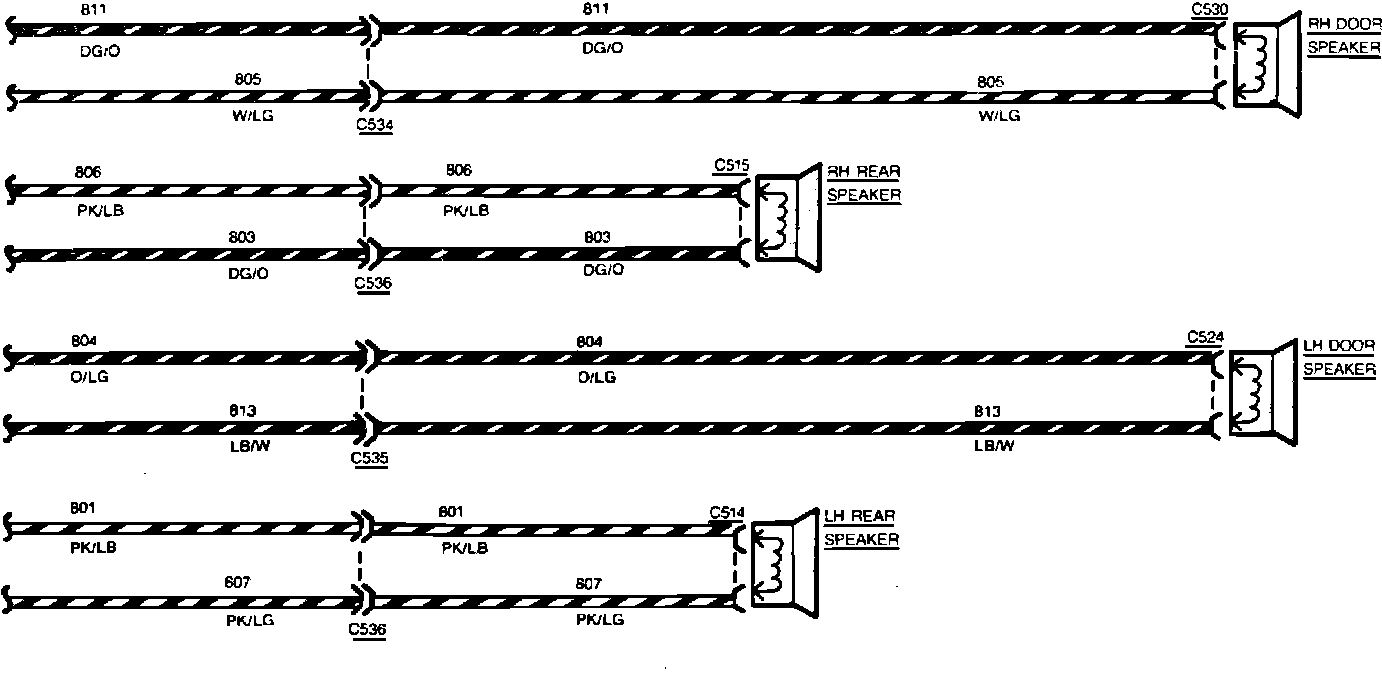

Fig. 29 Radio Wiring Circuit (Premium Sound Less Electric Search, Part 1 of 2). Tempo & Topaz:

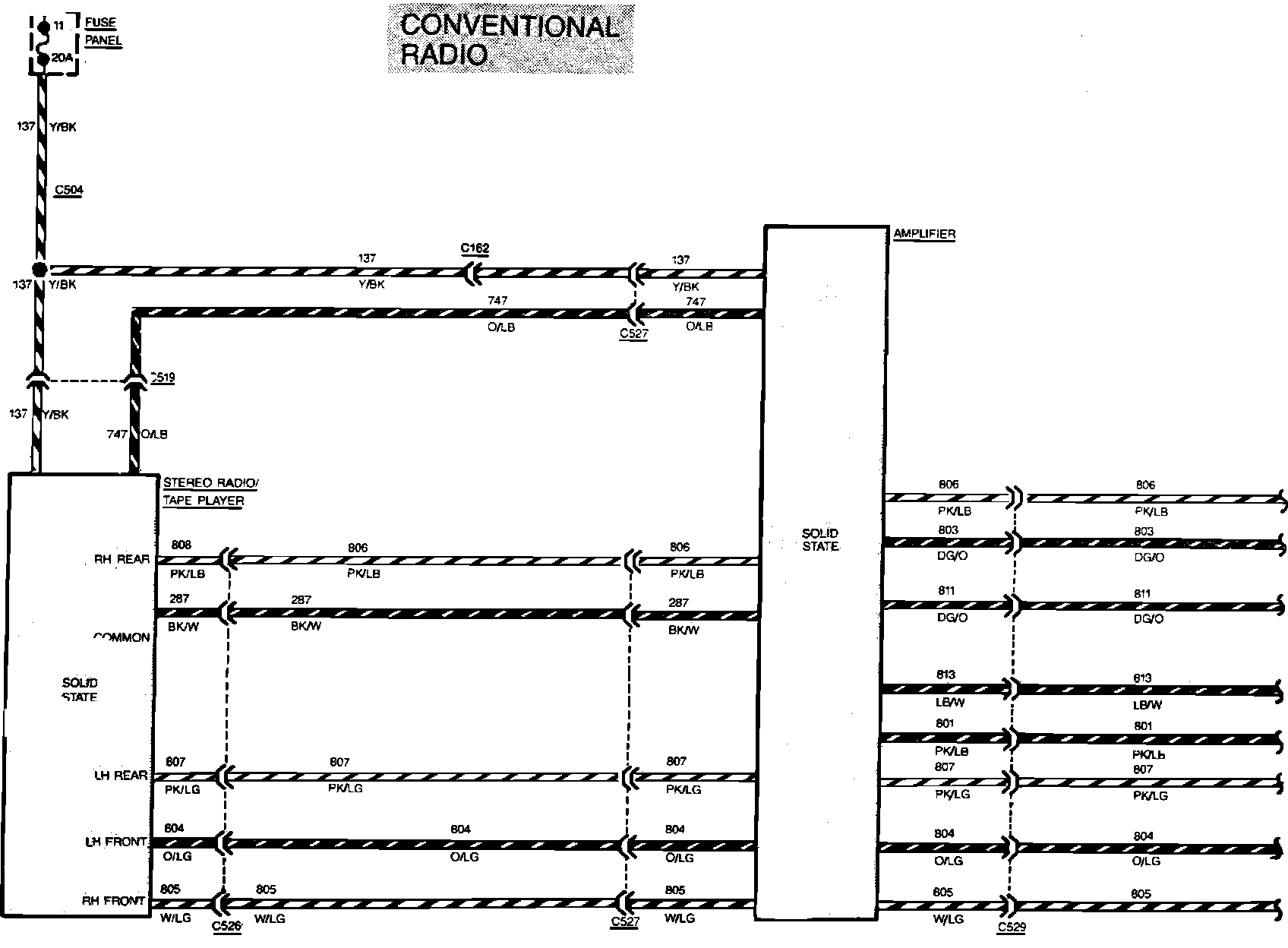

Fig. 29 Radio Wiring Circuit (Premium Sound Less Electric Search, Part 2 of 2). Tempo & Topaz:
