Steering Column Shift Lever Opening Seal - Replacement

STEERING COLUMN - SHIFT LEVER OPENING Article No.
SEAL REPLACEMENT 87-7-9


FORD: 1986-87 TAURUS

LINCOLN-MERCURY: 1986-87 SABLE


ISSUE: The steering column shift lever opening seal is now serviced in color to match the steering column. This will eliminate the need to paint the shift lever opening seal if it is replaced.

ACTION: If replacement of the steering column shift lever opening seal is required, use the following service procedure.

1. Remove upper shroud from steering column.

Figure 6 - Article 87-7-9:

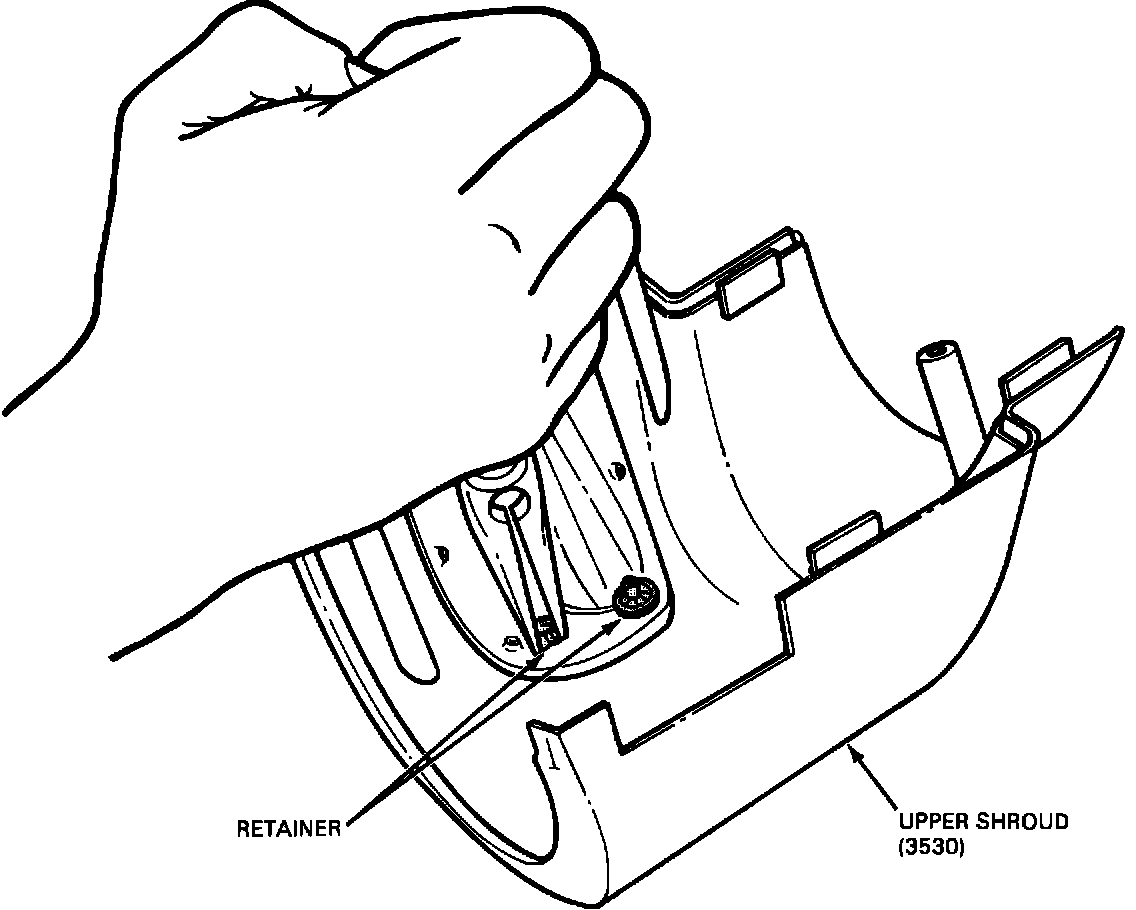

2. Carefully grip edge of retainer with long nose pliers until retainer is bent or cracks in half. Remove retainers and seal, see Figure 6.

Figure 7 - Article 87-7-9:

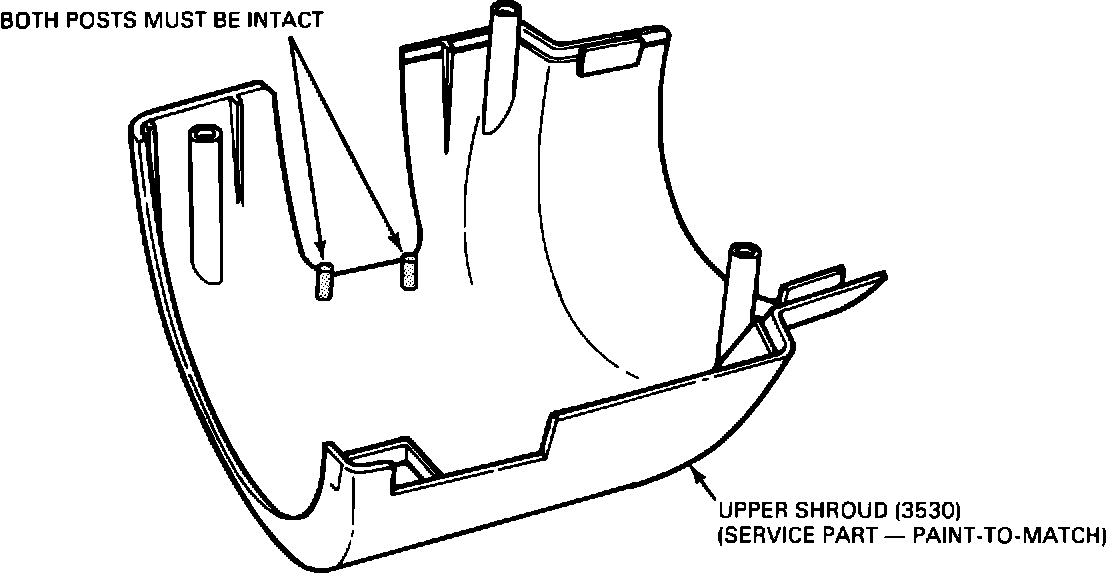

NOTE: Both posts on the steering column upper shroud must be intact, Figure 7. If one or both posts are broken off, the upper shroud must be replaced. The new shroud will be in prime, and must be painted to match.

Figure 8 - Article 87-7-9:

Figure 9 - Article 87-7-9:

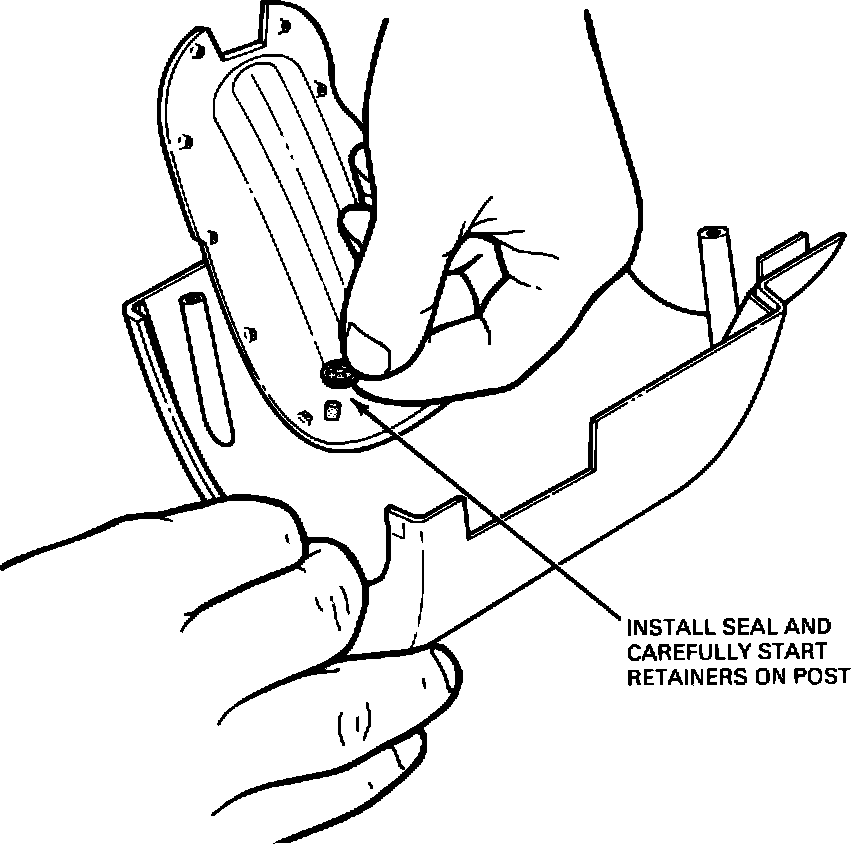

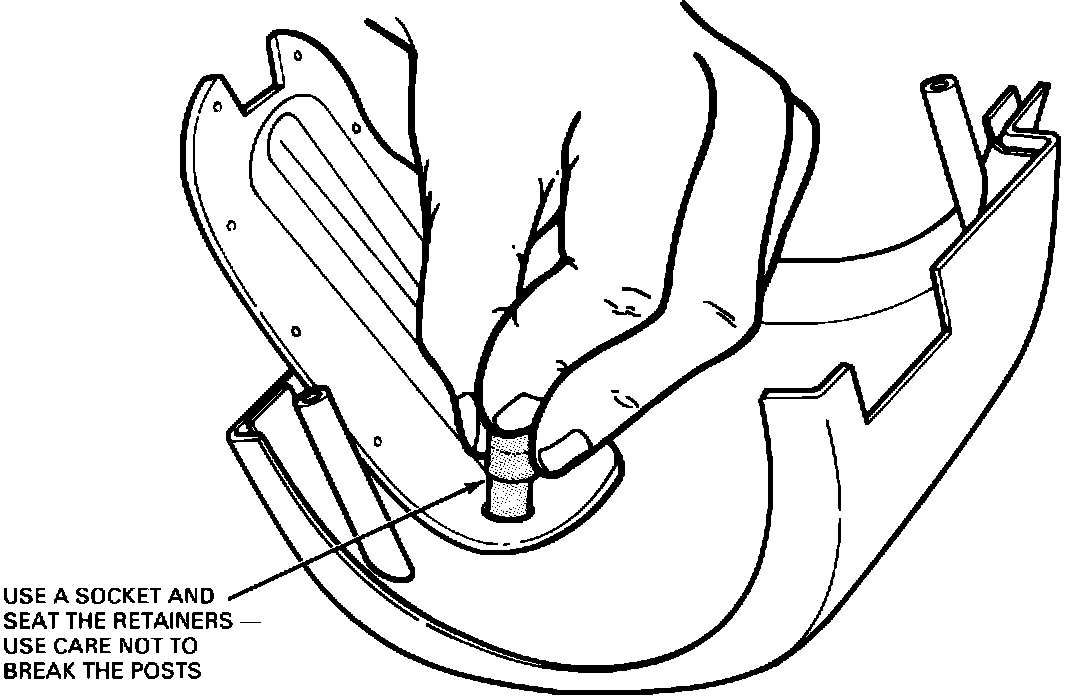

3. Place the new seal over the posts on the upper shroud and install new retainers supplied with the new color-keyed seal, Figures 8 and 9.

PART NUMBER PART NAME CLASS

E6DZ-3D677-A Shift Lever Opening C
Seal - Charcoal
E6DZ-3D677-B Shift Lever Opening C
Seal - Midnight Blue
E6DZ-3D677-C Shift Lever Opening C
Seal - Sable
E6DZ-3D677-D Shift Lever Opening C
Seal - Taupe
E6DZ-3D677-E Shift Lever Opening C
Seal - Canyon Red
E7DZ-3D677-A Shift Lever Opening C
Seal - Scarlet
E7DZ-3D677-B Shift Lever Opening C
Seal - Regent Blue
E7DZ-3D677-C Shift Lever Opening C
Seal - Sand Beige
E7DZ-3D677-D Shift Lever Opening C
Seal - Smoke
E7DZ-3D677-E Shift Lever Opening C
Seal - Black


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual
OPERATION: SP870709A
TIME: 0.4 Hr.
DLR. CODING: Basic Part No. 3D677 - Code: 01
