G104 Station Wagon

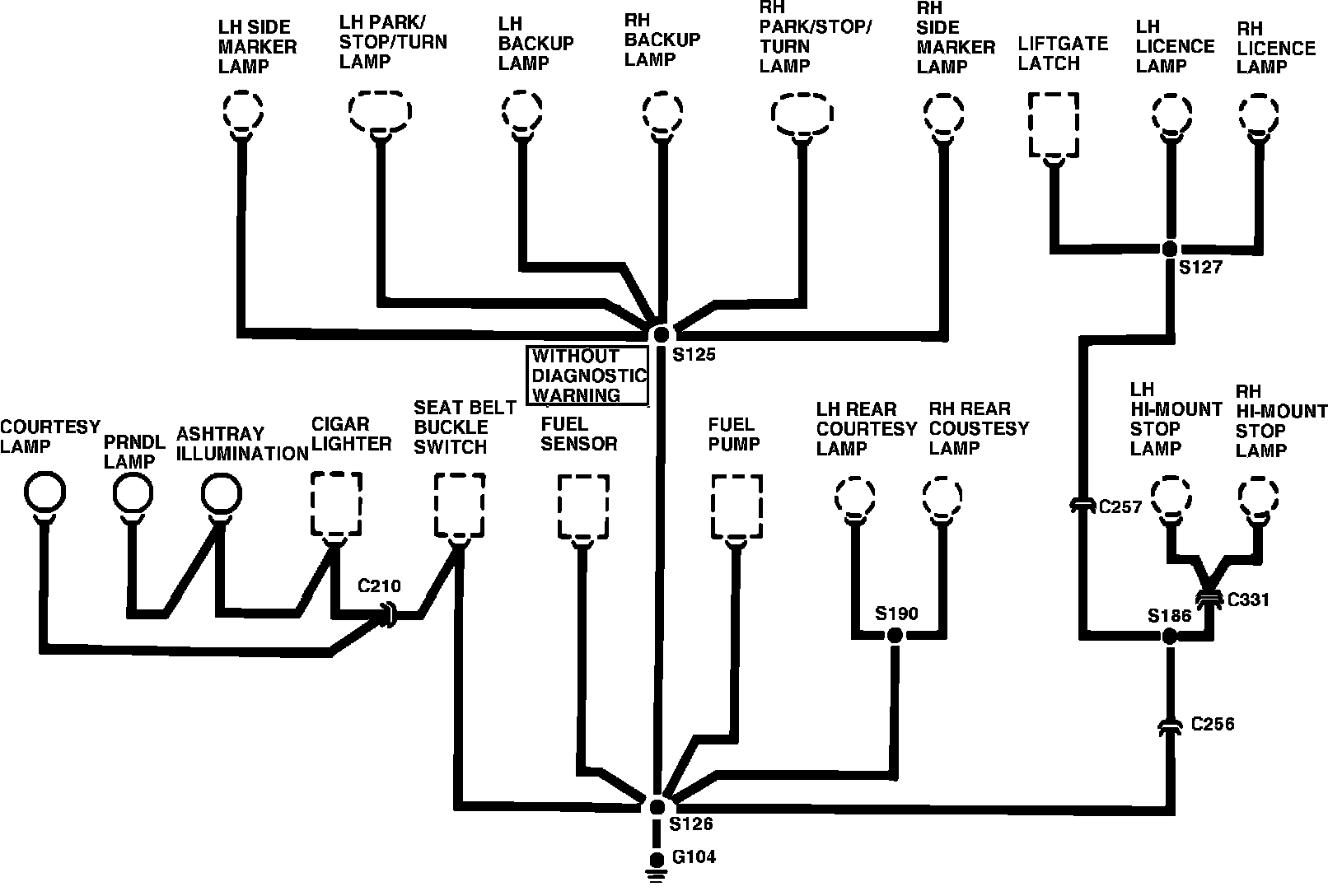

Fig. 19 Ground Distribution Wiring Circuit (G104). Station Wagon Taurus & Sable Models:
