Inertia Fuel Shutoff Switch
>>
Locations
>>

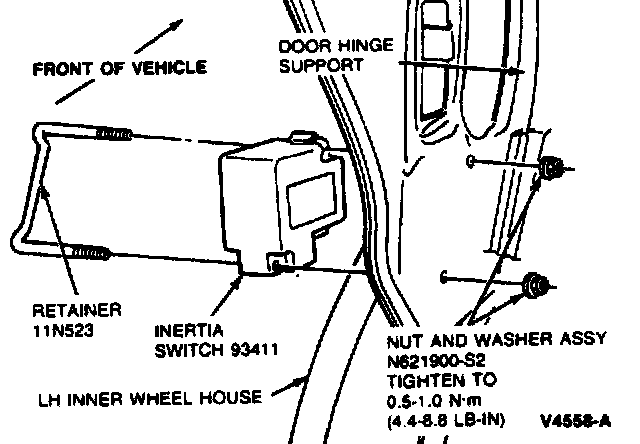

Inertia Switch (Sedan)
Inertia Switch (Sedan)
The inertia fuel shutoff switch is located in the luggage compartment on the door hinge support above the left hand inner wheel house.
The location is clearly marked on the vehicle.
