Fuel Pump Relay: Description and Operation

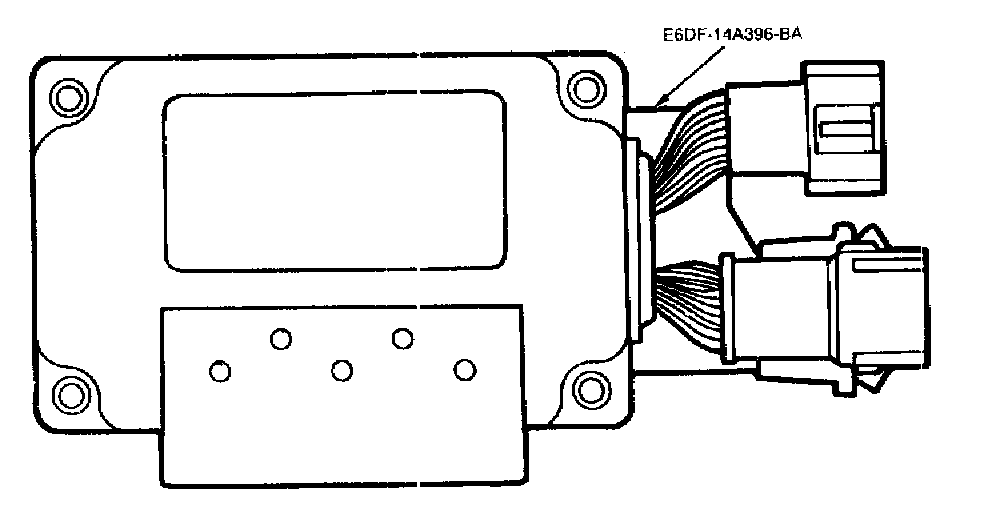

The Integral Relay Control Module (IRCM) interfaces with the EEC IV to provide control of the cooling fan, A/C clutch and the fuel pump. The module also incorporates the EEC power relay to provide power to the EEC IV system.

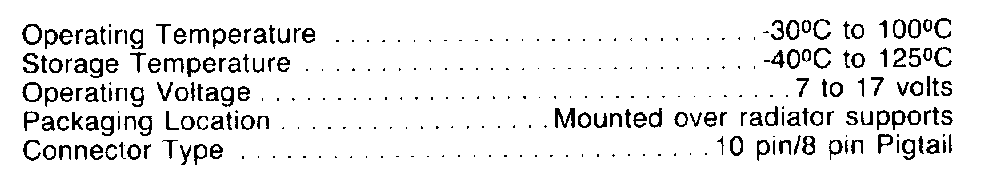

The module is designed specifically for underhood application. The limits of operation are as follows.















Taurus/Sable


2.5L M/T Single speed fan with time delay relay.


2.5L A/T Two speed fan with time delay relay.


3.0L Two speed fan with no time delay.
