Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Exterior Lighting Module >> Diagrams >> Electrical Diagrams >> 4 Door

4 Door

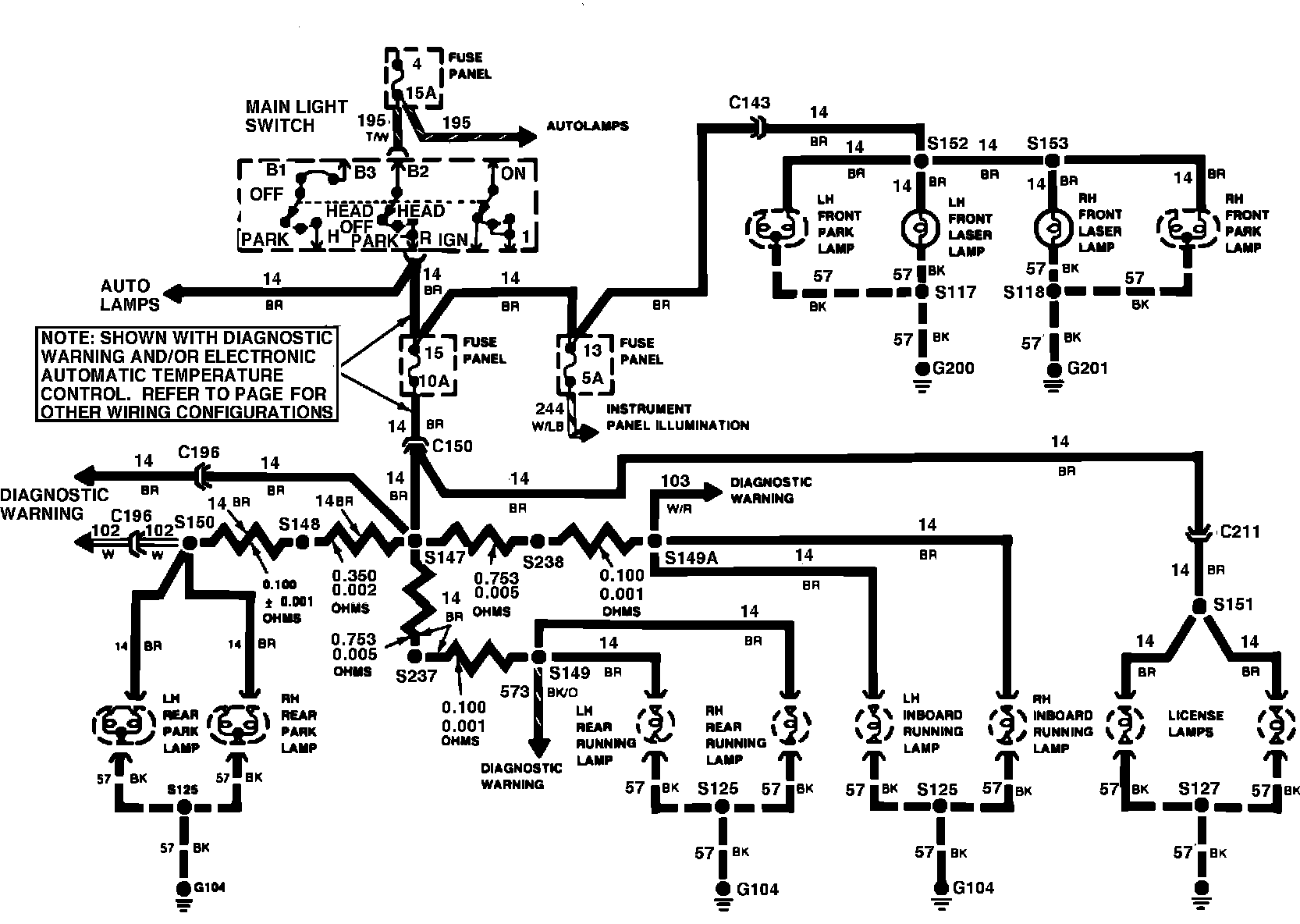

Fig. 15 Exterior Lamps Wiring Circuit (W/Diagnostic Warning). Sable 4 Door Models:
