Radiator Cooling Fan Control Module
>>
Specifications
Radiator Cooling Fan Control Module: Specifications

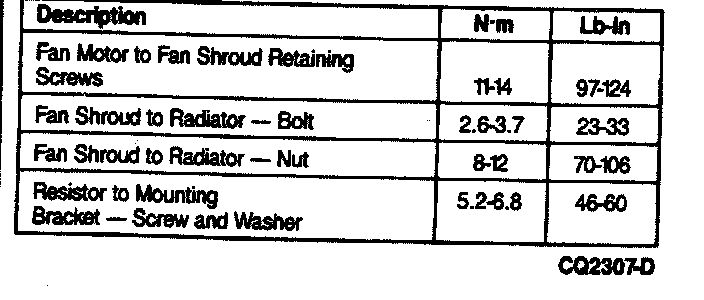

TORQUE SPECIFICATIONS - 2.5L/3.0L

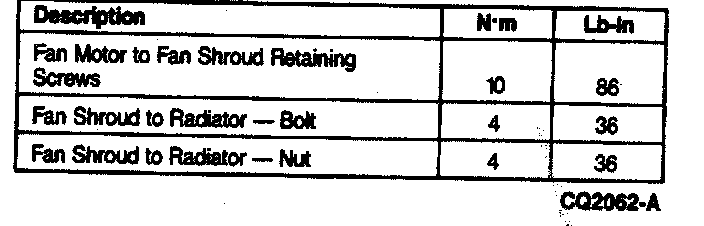

TORQUE SPECFICATIONS - 3.8L and 3.0L SHO
