Taillight Bulb and Socket Assembly - New Design

Article No. 85-16-4

LIGHTS - TAILLIGHT BULB AND SOCKET ASSEMBLY - NEW IMPROVED DESIGN

FORD 1986 TAURUS

LINCOLN-MERCURY 1985-86 GRAND MARQUIS; 1986 SABLE

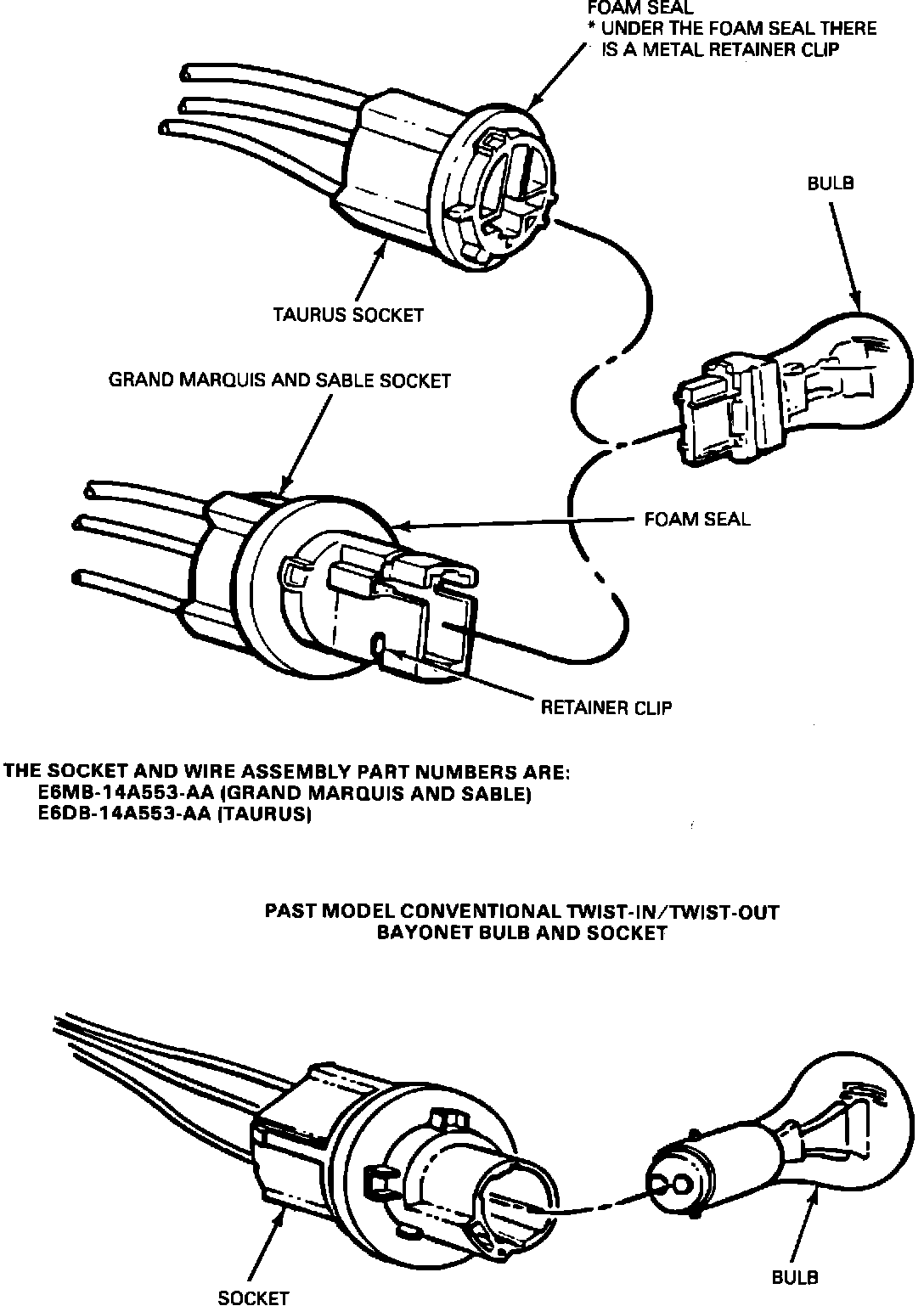

Figure 5 - NEW PUSH-IN/PULL-OUT WEDGE TYPE BULB AND SOCKET:

A new wedge bulb and socket assembly is being introduced in June 1985 on the Grand Marquis and in December 1985 on the 1986 Taurus/Sable. The wedge base type bulb (No. 2458) will replace the old conventional twist-in, twist-out type bulb (No. 1157). The new "wedge" bulb can only be used with its mating socket (Figure 5) and cannot be used with past model conventional twist-in/out bayonet bulb sockets. GTE Sylvania has supplied a package of two (2) No. 2458 bulbs in the glove box of the Grand Marquis (approximately 400 Grand Marquis will be built with this bulb and socket). Normal service parts will be available for the 1986 models. See Figure 5.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
