Headlamp Control Module: Locations

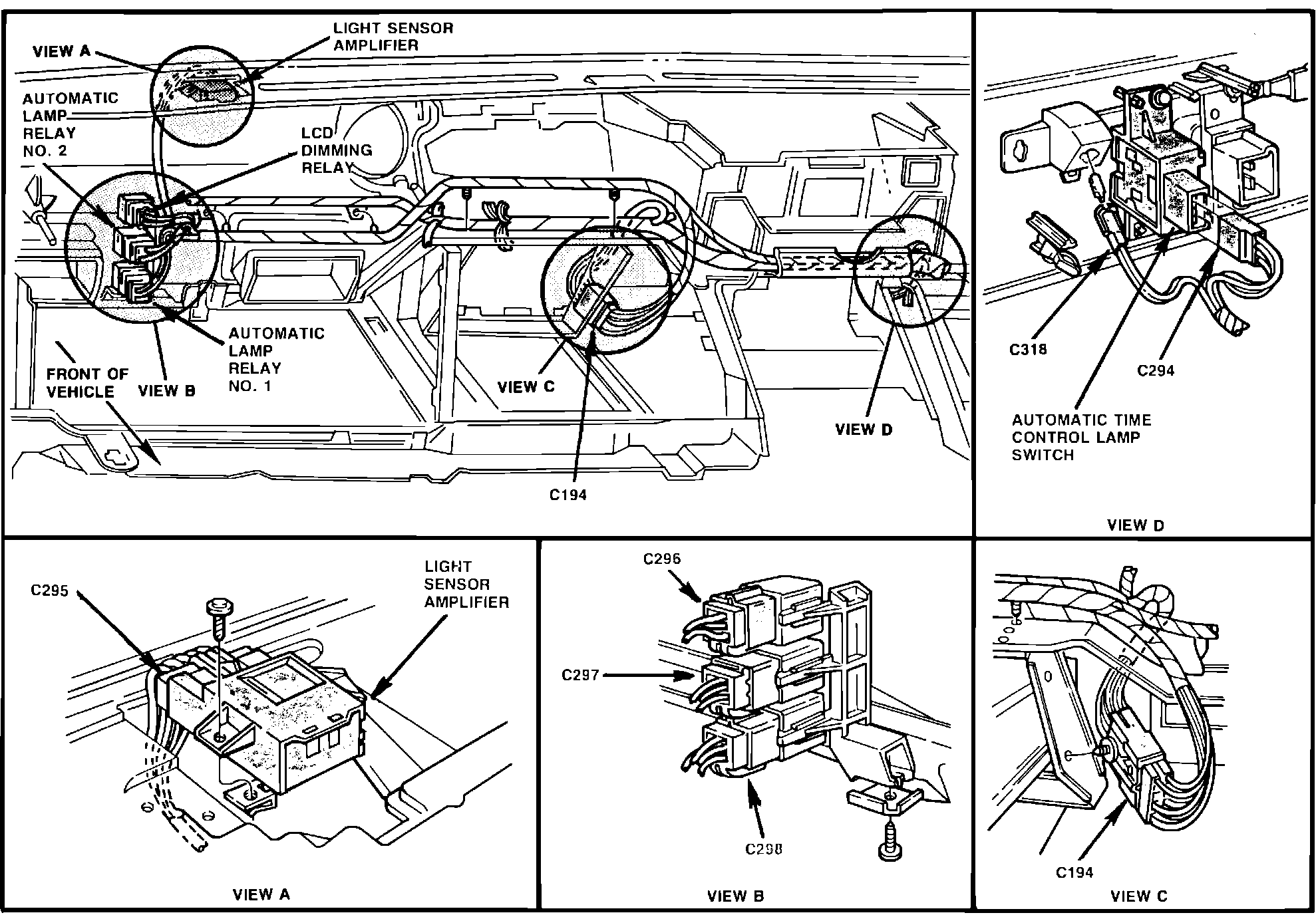

Instrument Panel Wiring, Autolamp & Auto Dimmer.:




RH Side Of I/P

Applicable to: 1986-87 Models
