Home >> Mercury >> 1986 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Vacuum Harness HVAC >> Locations

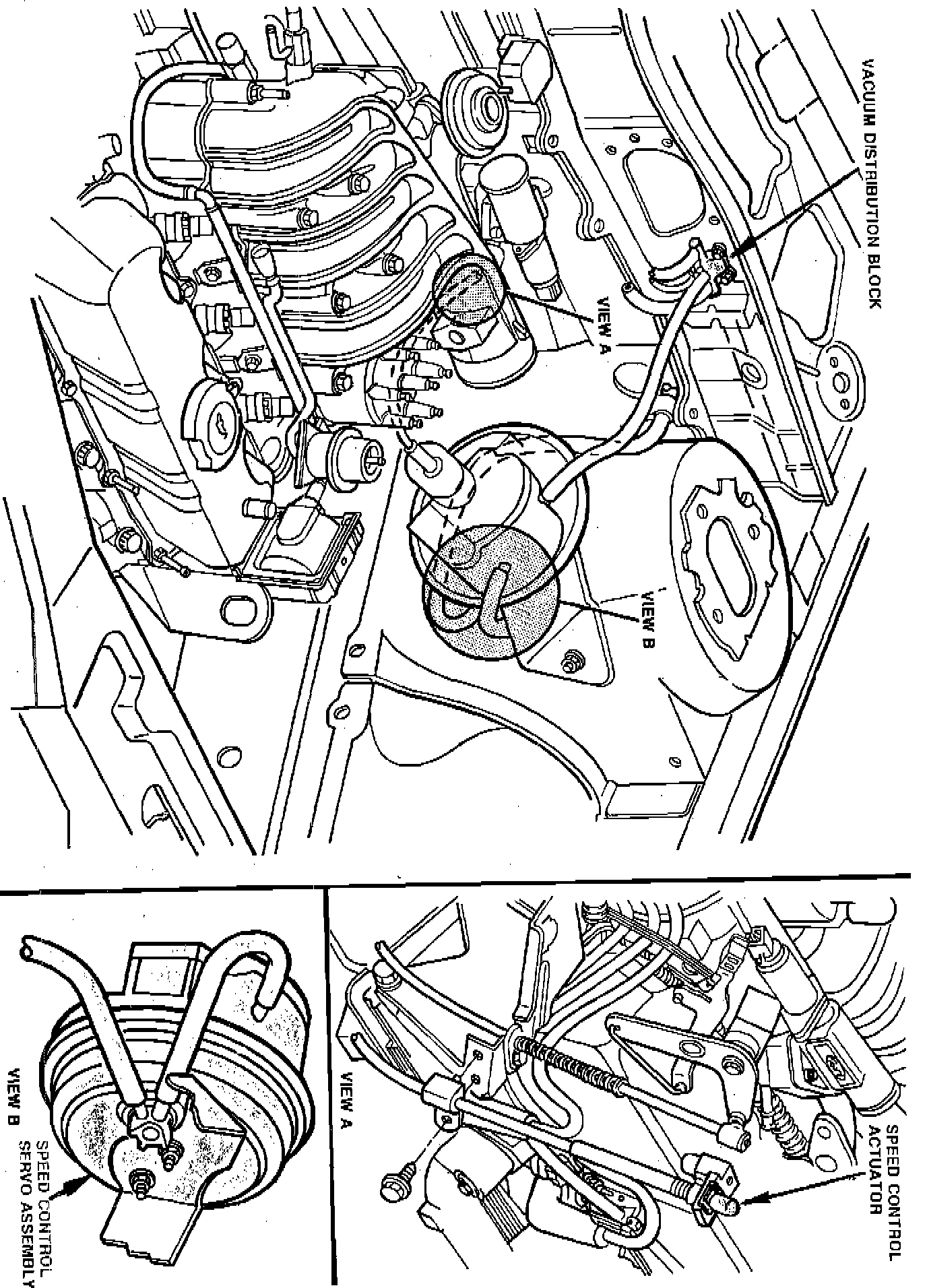

Vacuum Harness HVAC: Locations

Speed Control Vacuum Hose & Actuator.:




In Fire Wall

Applicable to: 1986-87 Models
