Clearing Trouble Codes

Clearing Continuous Memory Codes:

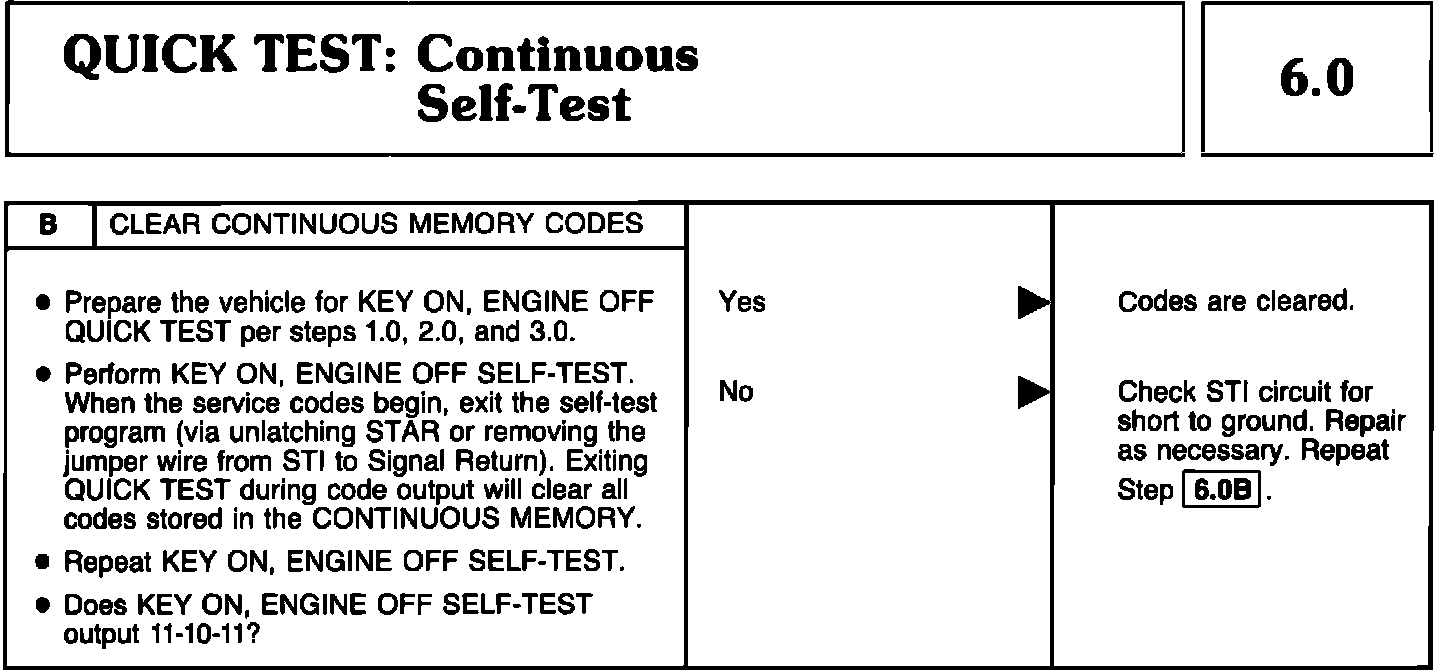

Quick Test 6.0B - Clearing Continuous Memory Codes:

Equipment Hookup:

Quick Test 1.0 - Visual Check, Vehicle Preparation:

Quick Test 2.0 - Equipment Hookup:

Diagnostic Connector Location:

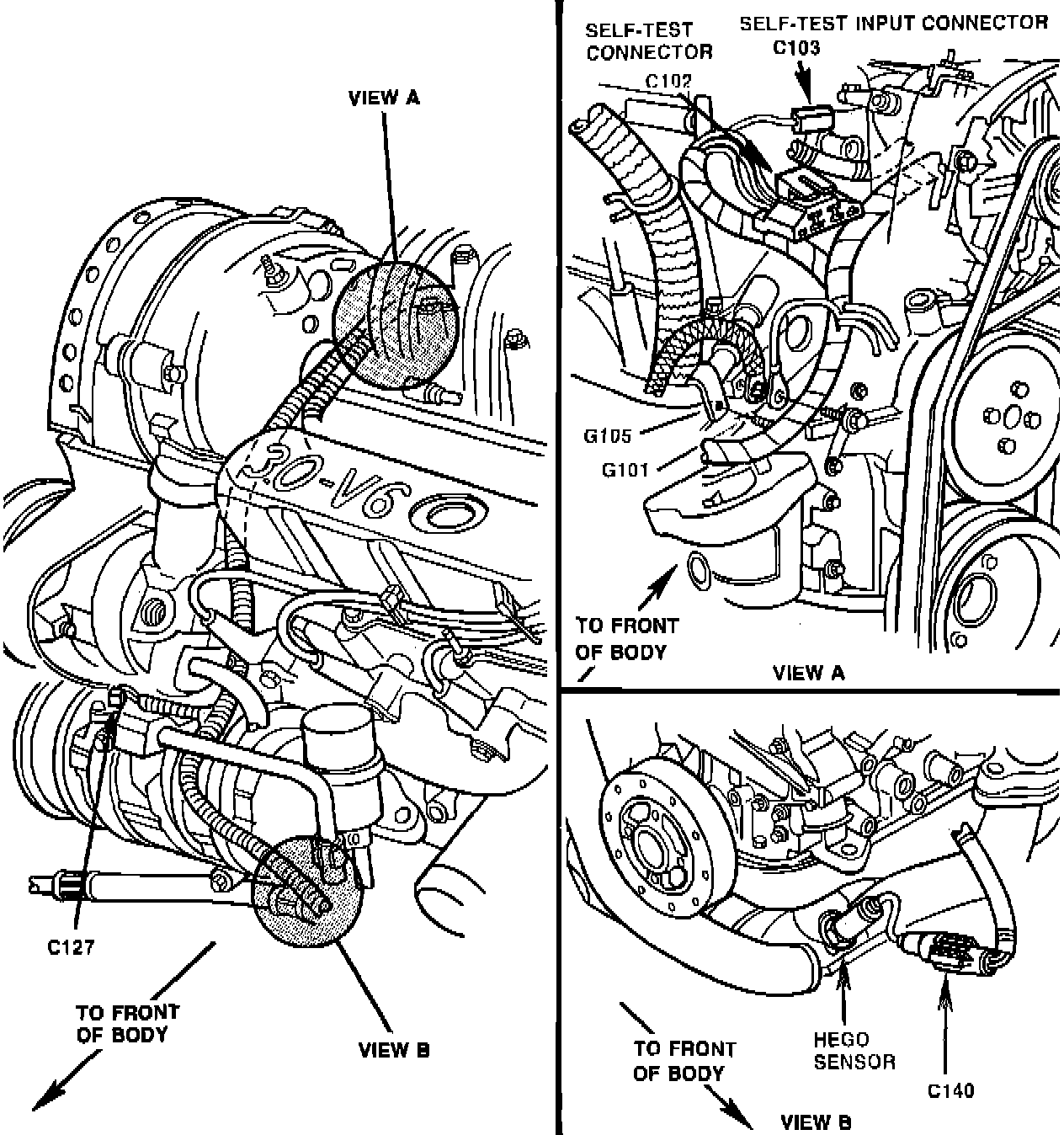

Location View - Engine Wiring, Front.:

The Vehicle VIP Self-Test Input (STI) and Output (STO) Connectors C103 and C102 are located at the Right Hand Rear of the Engine Compartment.

Key On Engine Off (KOEO) Test:

Quick Test 3.0A - KOEO Self-Test & Code Output:
